5V Series Cast Iron Ten-Groove Sheaves with Split Taper Bushings
5V series ten-groove taper bushed sheaves are manufactured for 5V, 5VX, banded 5V, and banded 5VX belts. They range from 7.10″ to 50.0″ in diameter. Depending on the sheave size, they are made to use an R2, S1, or U1 split-taper bushings, which we also stock. Most of our ten-groove 5V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
5V Series Ten-Groove Sheaves Size Chart
Size
|
Bushing Type
|
Pitch Diameter
|
Outside Diameter
|
Type
|
(O.L.)
|
(L)
|
(P)
|
(C)
|
(H)
|
(F)
|
(G)
|
(X)
|
(E)
|
Sheave Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10R5V80 | R2 | 7.90″ | 8.00″ | 15 | 7 3/16″ | 4 7/8″ | 23/32″ | 1 19/32″ | 5 3/8″ | 7 3/16″ | 7/8″ | 4″ | 9/32″ | 43.8 |
10R5V85 | R2 | 8.40″ | 8.50″ | 15 | 7 3/16″ | 4 7/8″ | 23/32″ | 1 19/32″ | 5 3/8″ | 7 3/16″ | 7/8″ | 4″ | 9/32″ | 53.0 |
10R5V90 | R2 | 8.90″ | 9.00″ | 15 | 7 3/16″ | 4 7/8″ | 23/32″ | 1 19/32″ | 5 3/8″ | 7 3/16″ | 7/8″ | 4″ | 9/32″ | 59.0 |
10S5V92 | S1 | 9.15″ | 9.25″ | 15 | 7 3/16″ | 4 7/8″ | 7/8″ | 1 15/16″ | 6 3/8″ | 7 3/16″ | 1 1/16″ | 3 5/16″ | 3/8″ | 53.0 |
10S5V97 | S1 | 9.65″ | 9.75″ | 15 | 7 3/16″ | 4 7/8″ | 7/8″ | 1 15/16″ | 6 3/8″ | 7 3/16″ | 1 1/16″ | 3 5/16″ | 3/8″ | 60.0 |
10S5V103 | S1 | 10.20″ | 10.30″ | 15 | 7 3/16″ | 4 7/8″ | 7/8″ | 1 15/16″ | 6 3/8″ | 7 3/16″ | 1 1/16″ | 3 5/16″ | 3/8″ | 69.0 |
10S5V109 |
S1 | 10.80″ | 10.90″ | 15 | 7 3/16″ | 4 7/8″ | 7/8″ | 1 15/16″ | 6 3/8″ | 7 3/16″ | 1 1/16″ | 3 5/16″ | 3/8″ | 78.0 |
10S5V118 | S1 | 11.70″ | 11.80″ | 15 | 7 3/16″ | 4 7/8″ | 7/8″ | 1 15/16″ | 6 3/8″ | 7 3/16″ | 1 1/16″ | 3 5/16″ | 3/8″ | 93.0 |
10U5V125 | U1 | 12.40″ | 12.50″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 132.0 |
10U5V132 | U1 | 13.10″ | 13.20″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 151.0 |
10U5V140 | U1 | 13.90″ | 14.00″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 177.0 |
10U5V150 | U1 | 14.90″ | 15.00″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 164.0 |
10U5V160 | U1 | 15.90″ | 16.00″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 138.0 |
10U5V212 |
U1 | 21.10″ | 21.20″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 188.0 |
10U5V250 | U1 | 24.90″ | 25.00″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 213.0 |
10U5V280 | U1 | 27.90″ | 28.00″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 238.0 |
10U5V375 | U1 | 37.40″ | 37.50″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 293.0 |
10U5V500 | U1 | 49.90″ | 50.00″ | 13 | 8 3/8″ | 7 1/8″ | 23/32″ | 25/32″ | 8 3/8″ | 7 3/16″ | 1 1/2″ | 5 5/8″ | 15/32″ | 428.0 |
Matching 5V, 5VX Series V-Belt
(1) 5V-Series V-Belts

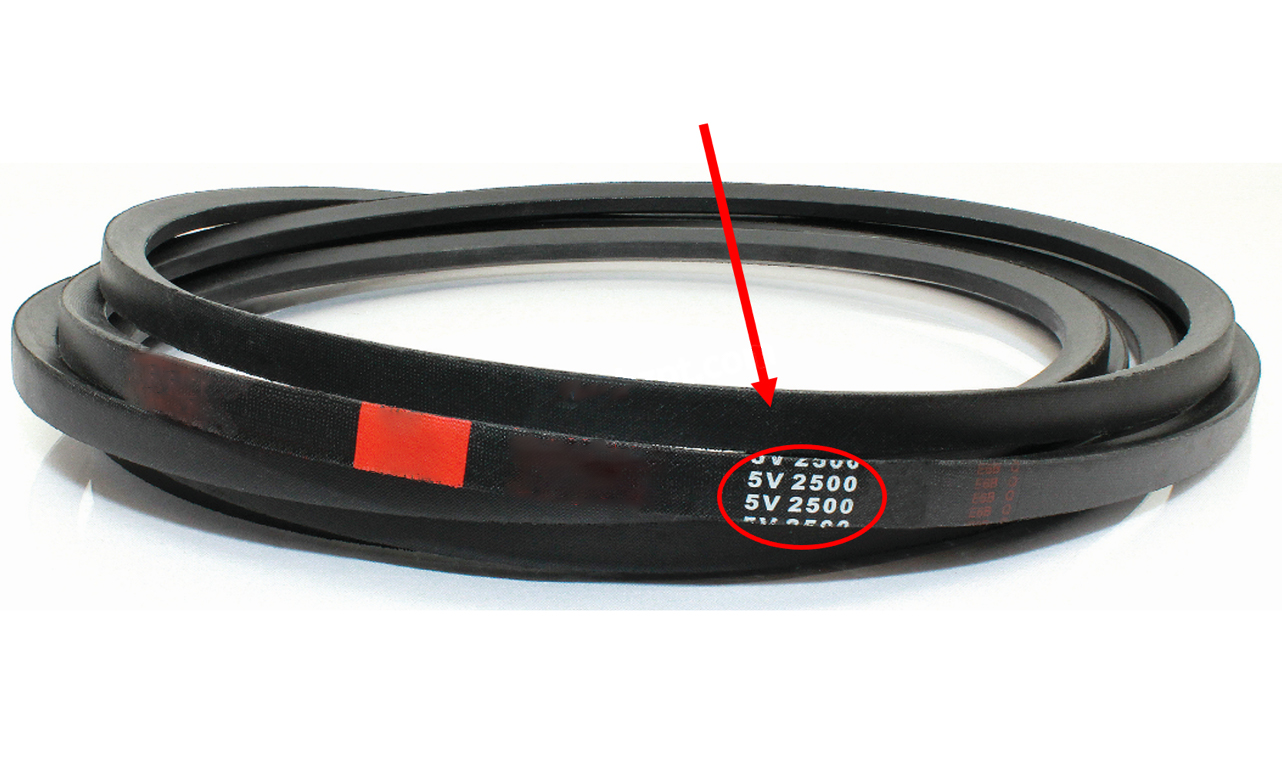

Classic 5V-Series V-Belts have a 0.63″ top-width, 0.53″ thickness, and a 38° angle. Additionally, 5V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry’s most widely used belt series. The premium 5V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.
(2) 5V-Series Banded V-Belts
5V-series v-belts are a part of the “classic” lineup of v-belts because they are one of the oldest style belts used and one of the most common styles. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 5V-series v-belts have a 0.63″ top-width per belt (band/ rib).
(3) 5VX Cogged V-Belts
5VX cogged v-belts are designated by having a 0.53″ top-width and 0.53″ thickness. Our cogged 5VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 5VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand v belt pulleys/ sheaves.
(4) 5VX Banded Cogged V-Belts
All our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 5VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs. We can also stock sheaves/ pulleys for 5VX banded belts. For more information or to get a quote, please get in touch with us, and we will be happy to assist you.

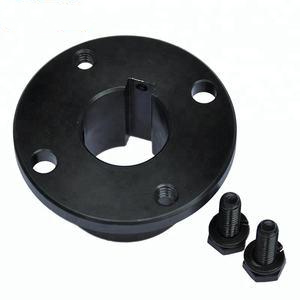

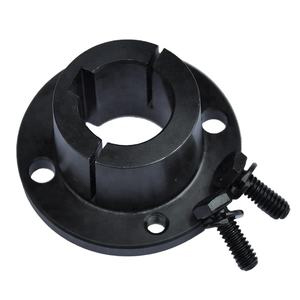

Split Taper Bushings
Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375″ up to 7.438″.
Custom Taper Bush V-belt Pulleys
V-belt pulleys (also known as belt pulleys) are available in undrilled, pre-drilled, or clamping bush variants. Undrilled and pre-drilled models must first be provided with a borehole, a keyway, and a threaded hole. In contrast, the clamping bush version (also known as the sleeve version) does not require additional machining. This model is already equipped as standard with a conical bore and threaded bores for mounting the bush on the shaft and is always used in conjunction with the associated clamping bush.
The associated taper lock bushes are available with various sizes of boreholes and a keyway in both metric and imperial dimensions. They are supplying with the appropriate socket head screws and finding in this online shop under the clamping bushes product group. The significant advantage of using a clamping bush is that mounting and removal are effortless because the pulley and shaft do not have to change beforehand.
V-belt pulleys are usually made from cast iron (GG) and steel. If required for specific applications, it is also possible to manufacture these components from aluminum, stainless steel, or plastic material. There is also the option of supplying v belt pulleys with an additional surface treatment if the ambient conditions require this of the drive. Furthermore, V-belt pulleys can be manufactured to customer specifications. Our turning shop can machine standard pulleys based on drawings or customer wishes.
Split Taper Sheave Common Applications
- Machine tools
- Crushers, shredders, breakers, classifiers, shaker screens
- Material conveyor systems
- Fans, blowers, and exhausters
- Pumps and compressors
- Woodworking saws, mills, planers, lathes
