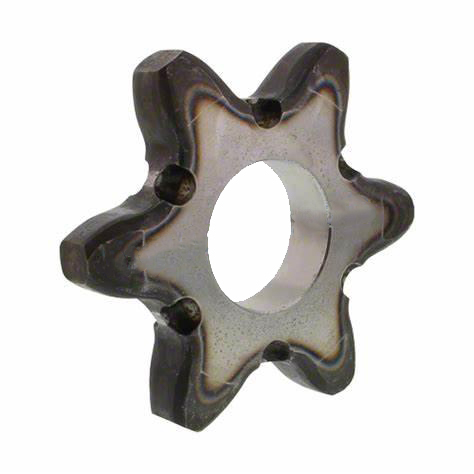

6 Tooth Sprocket

6 Tooth Sprocket is one of the nations leading suppliers of industrial chain sprockets. Our 6-tooth sprockets conform to international ISO, DIN, or American ANSI standards. We stock 6-tooth chain sprockets for a wide range of applications including; forestry, conveying, drive-sprockets, idle-sprockets, agricultural, engineer-class, and more. Not only do we supply sprockets

Categories: ,
Description

6 Tooth Sprocket

6 Tooth Sprocket is one of the nations leading suppliers of industrial chain sprockets. Our 6-tooth sprockets conform to international ISO, DIN, or American ANSI standards. We stock 6-tooth chain sprockets for a wide range of applications including; forestry, conveying, drive-sprockets, idle-sprockets, agricultural, engineer-class, and more. Not only do we supply sprockets but we also provide chain, v-belt pulleys, V-belts, electric motors, shafting, gear reducers, bearings, and a wide range of other PT components. For hard to find, custom, or OEM solutions, we make custom 5-tooth sprockets from our in-house machine shop.

6-Tooth Chain Sprocket Types
Roller Chain Sprocket 6 Tooth Sprocket Idler Sprockets
Roller Chain Sprocket Engineer-Class Sprockets Idler Sprockets

Additionally, we have plastic sprockets, stainless steel sprockets, and aluminum sprockets!

W6 Sprocket

  • High Quality Sprocket
  • Custom Re-Boring Available
  • Extremely Durably

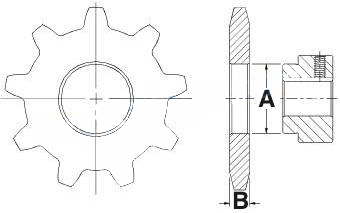

Sprocket Size Tooth Count Bore (A) Root Diameter Outside Diameter Hub Type Width (B) Weight
55W6 6 1-5/8″ 2.62″ 3-3/4″ W 9/16″ 0.88 LBS
62W6 6 1-5/8″ 2.63″ 3-7/8″ W 11/16″ 0.94 LBS

667-6 Sprocket

  • High Quality Sprocket
  • Supplied As Steel Or Cast Material
  • Has C-Hub And 6 Teeth
Sprocket Size Number Of Teeth Pitch Diameter Stock Bore Plate Thickness Hub Diameter Length Through Bore Weight
662B6 6 4.350″ 3/4″ 0.80″ 2″ 1-1/2″ 2 lbs
667B6 6 4.500″ 1″ 0.90″ 2-7/8″ 1-3/4″ 7 lbs
667C6 6 4.500″ 3/4″ 0.90″ 3″ 2″ 8 lbs
667HB6 6 4.500″ 1″ 0.90″ 2-7/8″ 1-3/4″ 7 lbs
667C6 6 4.500″ 3/4″ 0.90″ 3″ 2″ 8 lbs
667JB6 6 4.500″ 1″ 0.90″ 2-7/8″ 1-3/4″ 7 lbs
667JC6 6 4.500″ 3/4″ 0.90″ 3″ 2″ 8 lbs
667XB6 6 4.500″ 1″ 0.90″ 2-7/8″ 1-3/4″ 7 lbs
667XC6 6 4.500″ 1″ 0.90″ 2-7/8″ 1-3/4″ 7 lbs
667XHB6 6 4.500″ 3/4″ 0.90″ 3″ 2″ 8 lbs
667XHB6 6 4.500″ 1″ 0.90″ 2-7/8″ 1-3/4″ 7 lbs
667XHC6 6 4.500″ 3/4″ 0.90″ 3″ 2″ 8 lbs

CAST C6 Sprocket

Sprocket Size Number Of Teeth Style Pitch Diameter Hub Diameter Length Thru Bore Max Bore Tooth Face at Pitch Line Roller Dimeter Weight
55C6 6 C 2.77″ 2.00″ 2.00″ 0.94″ – – 2.0 LBS
62C6 6 C 3.32″ 1.75″ 1.25″ 0.94″ – – 3.0 LBS
67C6 6 C 4.62″ 3.00″ 2.00″ 1.81″ 0.687″ 0.812″ 6.0 LBS
78C6 6 C 5.22″ 3.50″ 2.75″ 1.44″ 0.937″ 0.875″ 6.0 LBS
94C6 6 C 8.00″ 5.00″ 3.00″ 3.00″ 1.750″ 1.5″ 14.0 LBS
95C6 6 C 8.00″ 5.00″ 3.00″ 3.00″ 1.687″ 1.5″ 14.0 LBS
102C6 6 C 8.00″ 6.00″ 4.00″ 3.94″ 1.875″ 1.00″ 33.0 LBS
102.5C6 6 C 8.08″ 5.00″ 3.50″ 3.94″ 1.875″ 1.375″ 30.0 LBS
103C6 6 C 6.15″ 4.00″ 3.00″ 1.94″ 1.125″ 1.218″ 13.0 LBS
104C6 6 C 12.00″ 6.00″ 4.75″ 4.00″ 4.00″ 1.50″ 91.0 LBS
110C6 6 C 12.00″ 6.00″ 4.00″ 3.94″ 1.875″ 1.250″ 63.0 LBS
111C6 6 C 9.52″ 7.00″ 4.00″ 4.00″ 2.375″ 1.438″ 64.0 LBS
130C6 6 C 8.00″ 4.50″ 3.00″ 2.50″ 1.000″ 1.000″ 20.0 LBS
132C6 6 C 12.10″ 6.00″ 6.00″ 4.00″ 2.750″ 1.750″ 100.0 LBS
182C6 6 C 4.00″ 4.00″ 3.00″ 2.68″ 0.8125″ 1.500″ 10.0 LBS
188C6 6 C 8.00″ 4.00″ 3.00″ 3.44″ 0.9375″ 1.750″ 15.0 LBS
196C6 6 C 12.00″ 6.00″ 4.00″ 4.00″ 1.000″ 2.000″ 33.0 LBS
197C6 6 C 12.00″ 6.00″ 5.00″ 4.75″ 1.125″ 2.500″ 45.0 LBS
348C6 6 C 11.59″ 5.00″ 4.00″ 3.00″ 0.687″ 1.0625″ 24.0 LBS
458C6 6 C 15.58″ 6.00″ 5.00″ 5.06″ 0.875″ 1.380″ 63.0 LBS
667C6 6 C 4.50″ 2.50″ 2.50″ 1.50″ 1.000″ 1.062″ 9.0 LBS
678C6 6 C 23.34″ 8.00″ 4.50″ 4.00″ 1.187″ 2.000″ 146.0 LBS
698C6 6 C 23.38″ 8.00″ 5.00″ 6.00″ 1.375″ 2.69″ 135.0 LBS
720C6 6 C 12.00″ 6.00″ 4.00″ 3.00″ 1.00″ 1.4375″ 47.0 LBS
730C6 6 C 12.00″ 6.00″ 4.00″ 3.00″ 1.125″ 1.500″ 47.0 LBS
830C6 6 C 12.00″ 6.00″ 4.00″ 4.00″ 1.312″ 1.156″ 58.5 LBS
E922C6 6 C 18.00″ 8.00″ 6.00″ 5.94″ 1.125″ 3.500″ 112.0 LBS
F922C6 6 C 18.00″ 8.00″ 6.00″ 5.94″ 1.125″ 3.500″ 74.0 LBS
F933C6 6 C 18.00″ 8.00″ 8.00″ 5.94″ 1.250″ 4.000″ 93.0 LBS
951C6 6 C 12.00″ 6.00″ 6.00″ 3.94″ 1.062″ 3.000″ 62.0 LBS
B963C6 6 C 18.00″ 6.00″ 6.00″ 2.93″ 1.125″ 3.500″ 74.0 LBS
F963C6 6 C 18.00″ 8.00″ 6.00″ 6.00″ 1.250″ 4.000″ 80.0 LBS
998C6 6 C 34.81″ 9.00″ 6.00″ 6.44″ 1.375″ 2.690″ 325.0 LBS
1113C6 6 C 8.08″ 4.00″ 3.00″ 2.44″ 1.125″ 2.00″ 24.0 LBS
1120C6 6 C 8.00″ 4.00″ 3.00″ 2.44″ 0.750″ 1.500″ 23.0 LBS
1131C6 6 C 12.00″ 6.00″ 5.00″ 3.94″ 1.250″ 3.000″ 62.0 LBS
F1222C6 6 C 24.00″ 7.50″ 5.00″ 5.94″ 1.000″ 4.500″ 143.0 LBS
1240C6 6 C 8.13″ 4.00″ 4.00″ 2.31″ 1.750″ 1.750″ 30.0 LBS
9250C6 6 C 5.00″ 3.00″ 2.75″ 1.50″ 0.750″ 1.130″ 5.0 LBS

CC5-6 Sprocket

  • High Quality Sprocket
  • Available In A Wide Range Of Configurations
  • Fast Delivery Time
  • Extremely Durable
  • Great Performance
  • Economical pricing
Sprocket Size Number Of Teeth Style Pitch Diameter Hub Diameter Pitch Stock Bore Roller Dimeter Weight
CC5A6 6 A-Plate  9.000″ 5.500″ 6.000″ 1.500″ 2.500″ 36 LBS
CC5C6 6 C-Hub 12.000″ 5.500″ 6.000″ 1.500″ 2.500″ 55 LBS

DF-6 Sprocket

  • High Quality Sprocket
  • Solid Construction
  • Split Construction Available
  • Manufactured for DF3500 Chain
Sprocket Size Number Of Teeth Style Plate Thickness Pitch Stock Bore Roller Dimeter Weight
DF3500A6 6 A-Plate 0.575″ 2.500″ 1.250″ 1.250″ 14.0 LBS
DF3910A6 6 A-Plate 0.575″ 2.500″ 1.250″ 1.250″ 17.0 LBS
DF3910C6 6 A-Plate 0.575″ 3.000″ 1.250″ 1.250″ 29.0 LBS

Steel Sprocket

  • Premium Quality Sprocket
  • Extremely Durable
  • Available In Cast or Steel Material
  • Custom Bore Sizes Available
Sprocket Size Number Of Teeth Style Pitch Diameter Stock Bore Maximum Bore Hub Diameter Length Thru Bore Plate Thickness Roller Dimeter Weight
124A 6 A 8.00″ 0.938″ – – – 1.5″ 1.5″ 21.0 LBS
124C 6 C 8.00″ 0.938″ 3.25″ 4.75″ 4.625″ 1.5″ 1.5″ 36.0 LBS
132A 6 A 12.10″ 1.5″ – – 2.500″ 2.75″ 1.719″ 90.0 LBS
132C 6 C 12.10″ 1.5″ 4.5″ 6.5″ 6.00″ 2.75″ 1.719″ 119.0 LBS
1240C 6 C 8.13″ 0.938″ 2.5″ 4.0″ 4.0″ 1.75″ 1.75″ 34.0 LBS

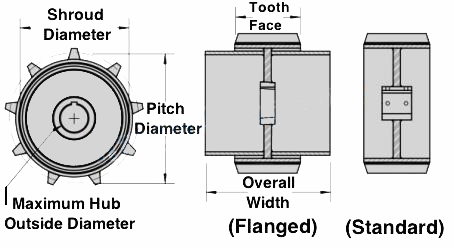

WD-6 Sprocket

  • Flanged & Standard Style Available
  • High Quality Sprocket
  • Best Pricing In The Industry
  • Made For WD102 & WDH102 Chain
Sprocket Number Number Of Teeth Pitch Pitch Diameter Shroud Diameter Tooth Face Maximum Bore
WD102-6 6 5.00″ 10.00″ 5.680″ 6-3/8″ 3-15/16″
WD104-6 6 6.00″ 12.00″ 8.892″ 4-1/8″ 4-7/16″
WD110-6 6.00″ 6 12.00″ 4-7/16″ 8.892″ 9.00″
WD112-6 8.00″ 6 16.00″ 5-15/16″ 12.36″ 9.00″
WD116-6 8.00″ 6 16.00″ 5-15/16″ 12.106″ 13.00″
WD118-6 8.00″ 6 16.00″ 5-15/16″ 12.106″ 13.00″
WD120-6 6.00″ 6 12.00″ 5-15/16″ 8.392″ 8-3/4″
WD122-6 8.00″ 6 16.00″ 5-15/16″ 11.86″ 8-3/4″
WD480-6 8.00″ 6 16.00″ 5-15/16″ 11.86″ 11.00″

WH-6 Sprocket

  • High Quality Sprocket
  • Extremely Durable
  • Available In A Wide Range Of Configuration
Sprocket Number Number Of Teeth Pitch Pitch Diameter Style Shroud Diameter Tooth Face Maximum Bore
WH78-4-A6 6 4.000″ 8.000″ A-Plate 5.680″ 1.000″ 2.4375″
WH78-4-B6 6 4.000″ 8.000″ B-Hub 5.680″ 1.000″ 2.4375″
WH78-4-C6 6 4.000″ 8.000″ C-Hub 5.680″ 1.000″ 2.4375″
WH106-A6 6 6.000″ 12.000″ A-Plate 8.892″ 1.500″ 4.9375″
WH106-B6 6 6.000″ 12.000″ B-Hub 8.892″ 1.500″ 4.9375″
WH106XHD-A6 6 6.050″ 12.000″ A-Plate 12.108″ 1.500″ 4.9375″
WH106XHD-B6 6 6.050″ 12.000″ B-Hub 12.108″ 1.500″ 4.9375″
WRC110-6 6 6.00″ 12.00″ C-Hub 8.892″ 1-1/2″ –

X-A6 Sprocket

  • High Quality Sprocket
  • Two Styles To Choose From
  • Extremely Durable
  • Optimum Performance
Sprocket Number Style Number of Teeth Plate Thickness Pitch Stock Bore Weight
X-348A6 A-Plate 6 0.625″ 3.015″ 1.250″ 19 LBS
X-458A6 A-Plate 6 0.875″ 4.031″ 1.50″ 47.00 LBS
X-678A6 A-Plate 6 1.000″ 6.031″ 1.500″ 121.00 LBS

X-C5 Sprocket

  • High Quality Sprocket
  • C-Hub Style (Hub On Both Sides)
  • Two Styles To Choose From
  • Extremely Durable
  • Optimum Performance
Sprocket Number Style Number of Teeth Plate Thickness Pitch Diameter Hub Diameter Pitch Maximum Bore Stock Bore Length Through Bore Weight
X-348C6 C-Hub 6 0.625″ 11.649″ 4.000″ 3.015″ 2.440″ 1.250″ 2.750″ 26.00 LBS
X-458C6 C-Hub 6 0.875″ 15.575″ 5.500″ 4.031″ 3.440″ 1.500″ 4.250″ 68.00 LBS
X-678C6 C-Hub 6 1.000″ 23.302″ 7.000″ 6.031″ 4.440″ 1.500″ 6.000″ 173.00 LBS

We also offer a full range of both precision roller chain and engineered.
Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
