60 Steel Sprockets for Chain 863 / 963 / 1864 / 1873 / 1874 / 3873
We stock a full line of ANSI single-strand 304-grade stainless steel sprockets, both as A-Plate style and B-Hub style. We keep these on the shelf as standard stock bores. However, we can supply sprockets with finished bores thanks to our fast-reaction in-house industrial machine shop. Typically, we do not use 304-grade stainless steel to manufacture the sprockets , but 316, as well as a few other grades, are available upon request.
13T 14T 15T 16T 17T 18T 19T 20T 21T 22T 23T 24T 25T 26T 27T 28T 29T 30T
60 Steel Sprockets for Chain 863 / 963 / 1864 / 1873 / 1874 / 3873
A sprocket(60 Steel Sprockets) is a rotating mechanical wheel with teeth that engage with roller or conveyor chains to facilitate their movement in various applications and equipment. As the sprocket rotates around a central shaft, the specially designed teeth engage the gaps in the chain to pull it with a secure grip, regardless of whether it is in dirty or oily environments. Although they may resemble gears, sprockets are designed solely to work with drive chains, not other sprockets or gears.
We stock a full line of ANSI single-strand 304-grade stainless steel sprockets, both as A-Plate style and B-Hub style. We keep these on the shelf as standard stock bores. However, we can supply sprockets with finished bores thanks to our fast-reaction in-house industrial machine shop. Typically our sprockets are manufactured out of 304-grade stainless steel, but 316, as well as a few other grades, are available upon request.
Product Parameters
This series of sprockets can be used with 1874TAB-G Flat Top Chains Sideflexing.
|
 |

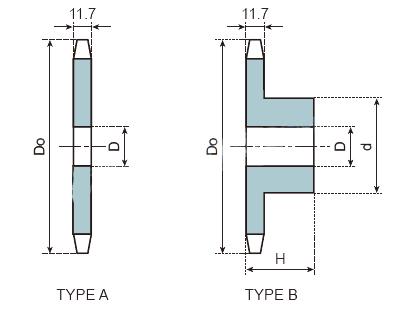

| CODE | TYPE A | TYPE B | ||||||
| Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
d Hub dia. (mm) |
H Overall length (mm) |
|
| 13T | 89 | 79.60 | 14 | 89 | 79.60 | 14 | 57 | 32 |
| 14T | 95 | 85.61 | 16 | 95 | 85.61 | 16 | 62 | 32 |
| 15T | 101 | 91.62 | 16 | 101 | 91.62 | 16 | 68 | 32 |
| 16T | 107 | 97.65 | 16 | 107 | 97.65 | 16 | 73 | 32 |
| 17T | 113 | 103.67 | 16 | 113 | 103.67 | 16 | 73 | 32 |
| 18T | 119 | 109.71 | 16 | 119 | 109.71 | 16 | 83 | 40 |
| 19T | 126 | 115.74 | 16 | 126 | 115.74 | 16 | 83 | 40 |
| 20T | 132 | 121.78 | 16 | 132 | 121.78 | 16 | 83 | 40 |
| 21T | 138 | 127.82 | 16 | 138 | 127.82 | 16 | 83 | 40 |
| 22T | 144 | 133.86 | 16 | 144 | 133.86 | 16 | 83 | 40 |
| 23T | 150 | 139.90 | 16 | 150 | 139.90 | 16 | 83 | 40 |
| 24T | 156 | 145.95 | 16 | 156 | 145.95 | 16 | 83 | 40 |
| 25T | 162 | 151.99 | 16 | 162 | 151.99 | 16 | 83 | 40 |
| 26T | 168 | 158.04 | 16 | 168 | 158.04 | 16 | 83 | 40 |
| 27T | 174 | 164.09 | 20 | 174 | 164.09 | 20 | 83 | 40 |
| 28T | 180 | 170.14 | 20 | 180 | 170.14 | 20 | 83 | 40 |
| 29T | 187 | 176.20 | 20 | 187 | 176.20 | 20 | 83 | 40 |
| 30T | 193 | 182.25 | 20 | 193 | 182.25 | 20 | 83 | 40 |
NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)
Applications for Sprockets
Custom made Sprockets
Without reliable sprockets for your machinery, production levels tumble, and profits suffer. At here, our inventory swells with gears and sprockets for your everyday needs.
Explore our main categories of gear sprockets, including standard, double pitch, stainless steel, idler, coupler, and more. We make ordering as easy as possible too. Select your industrial sprockets and gears along with the design type. Our stock supplies you with A-plate, B-hub, C-hub, and bushed-type parts. Sprockets may come in hundreds of variations, but we have the most common types for your applications. Upgrade your machinery with the help of reliable sprockets that last.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Which is Better-Aluminum or Steel for Sprockets?
The two most commonly materials for sprocket :Steel and aluminum. Most manufacturers use steel sprockets; however, aluminum offers characteristics that some riders will find more appealing.
Steel sprockets are more affordable than aluminum and tend to have a longer lifespan. Because rear sprockets are smaller and more durable sprockets are essential, we use steel most to produce rear sprockets .
For riders who are looking for sprockets that can help increase their speed, aluminum is usually the go-to choice. Aluminum sprockets are much lighter than steel, making them an excellent choice for the motorcyclist who wants to reduce bike weight. Even though aluminum sprockets are anodized, they tend to degrade much faster than sprockets that are made out of steel.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
