662 2 steel pintel chain and attachment
662 2 steel pintel chain and attachment

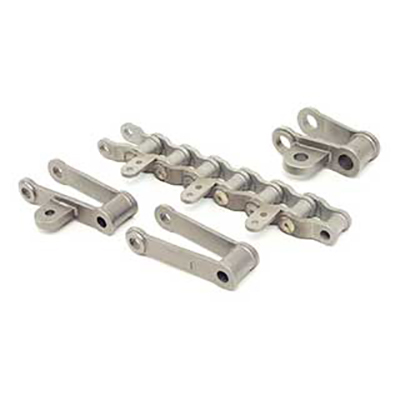

Pintle Chain Advantages
- 400 Class: Ideal for applications similar to steel detachable chains without the need to replace sprockets, the 400-class offers superior working loads and is crafted from cast steel alloys to withstand corrosive and abrasive environments. Stainless steel cotters are standard for added durability.
- 600 Class: This class provides high strength at a cost-effective price. Its open barrel design helps prevent material buildup, making it suitable for abrasive applications.
- 700 Class: Known for its robustness over long lengths, the 700-class excels in conveying and driving applications. It’s available in various materials, including carbon steel, cast, stainless steel, and non-metallic plastic, catering to industries such as sugar, wastewater, and mining.
- 800 Class: The 800-class is designed for extreme strength and is commonly used in mining and highly abrasive environments. Its special design prevents breakage under high shock loads, ensuring reliable performance in challenging conditions.
- 900 Class: With a single size option, the 900-class is tailored for palm oil and sugar milling applications. It excels in handling abrasive atmospheres over extended periods, offering durability in demanding environments.

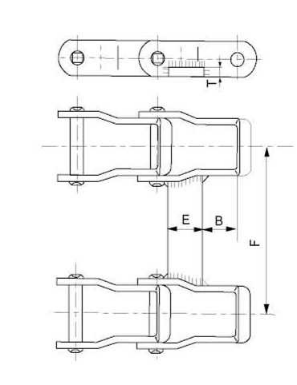

Diameter Data
| chain NO. | F
mm |
E
mm |
B
mm |
T
mm |
| 662-2 | 260.4 | 19.05 | 17.5 | 4.8 |
| 662-2 | 311.2 | 19.05 | 17.5 | 4.8 |
| 662-2 | 266.7 | 25.4 | 12.7 | 6.4 |
| 667X-2 | 514.4 | 38.1 | 14.05 | 6.4 |
| 667X-2 | 539.8 | 38.1 | 17.05 | 9.5 |
| 667X-2 | 755.7 | 38.1 | 17.05 | 12.7 |
| 667X-2 | 762 | 38.1 | 17.05 | 12.7 |
| 667XH-2 | 635 | 38.1 | 17.1 | 9.5 |
| 88K-2 | 431.8 | 38.1 | 17.1 | 9.5 |

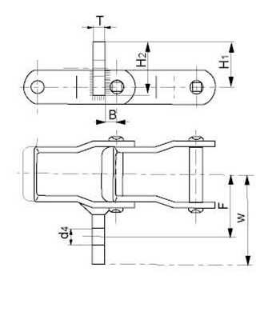

| H1 | H2 | B | F | W | d4 | T | |
| chain NO. | mm | mm | mm | mm | mm | mm | mm |
| h662 | 24.2 | 28.6 | 6 | 33.35 | 48.25 | 8.7 | 6.4 |
| h667 | 38.1 | 42.2 | 8 | 38.10 | 58.20 | 8.7 | 6.4 |
| h88K | 38.1 | 43.8 | 10 | 42.1 | 62.5 | 10.8 | 8.0 |
| F | d4 | W | B | E | T | |
| Chain NO. | mm | mm | mm | mm | mm | mm |
| A662 | 34.9 | 6.8 | 47.6 | 19.5 | 22 | 4.5 |
| A662H | 69.8 | 6.8 | 47.6 | 19.5 | 22 | 4.5 |
| A667X | 51.6 | 10 | 68 | 28.37 | 28.5 | 8 |
| A667H | 51.6 | 8.4 | 68 | 29.3 | 28.6 | 6.4 |
| A667K | 51.6 | 11.5 | 68.3 | 24.7 | 31.8 | 9.5 |
| A667J | 51.6 | 8.4 | 68 | 28.47 | 28.5 | 8 |
| A667K | 65 | 11.5 | 85 | 24.7 | 31.8 | 9.5 |
| A667XH | 51.6 | 9.9 | 69.85 | 24.7 | 31.8 | 9.5 |
