6B Gripbelt Sheaves with Split Taper Bushings
6B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 7.35″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with R1 taper bushings, which we also stock. Most of our six-groove 6B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
6B Gripbelt Sheaves
6B series pulleys(6B Gripbelt Sheaves) are working with A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 7.35″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with R1 taper bushings, which we also stock. Most of our six-groove 6B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

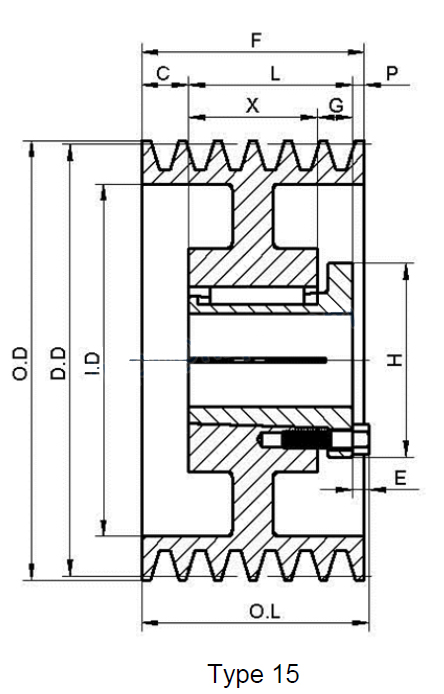

6B Style Pulley(6B Gripbelt Sheaves) Size Chart
|
Size
|
Bushing Type
|
Pitch Diameter (4L/A)
|
Pitch Diameter (5L/B)
|
Outside Diameter
|
Type
|
(O.L.)
|
(L)
|
(P)
|
(C)
|
(H)
|
(F)
|
(G)
|
(X)
|
(E)
|
Pulley Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6B70R | R1 | 6.6″ | 7.0″ | 7.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 19.0 |
| 6B74R | R1 | 7.0″ | 7.4″ | 7.75″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 21.8 |
| 6B80R | R1 | 7.6″ | 8.0″ | 8.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 26.8 |
| 6B86R | R1 | 8.2″ | 8.6″ | 8.95″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 29.4 |
| 6B90R | R1 | 8.6″ | 9.0″ | 9.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 31.4 |
| 6B94R | R1 | 9.0″ | 9.4″ | 9.75″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 32.8 |
| 6B110R | R1 | 10.6″ | 11.0″ | 11.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 37.0 |
| 6B124R | R1 | 12.0″ | 12.4″ | 12.75″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 39.4 |
| 6B136R | R1 | 13.2″ | 13.6″ | 13.95″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 45.3 |
| 6B154R | R1 | 15.0″ | 15.4″ | 15.75″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 49.1 |
| 6B160R | R1 | 15.6″ | 16.0″ | 16.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 52.0 |
| 6B184R | R1 | 18.0″ | 18.4″ | 18.75″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 59.0 |
| 6B200R | R1 | 19.5″ | 20.0″ | 20.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 69.0 |
| 6B250R | R1 | 24.5″ | 25.0″ | 25.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 83.0 |
| 6B300R | R1 | 29.5″ | 30.0″ | 30.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 126.0 |
| 6B380R | R1 | 37.5″ | 38.0″ | 38.35″ | 15 | 4-3/4″ | 2-7/8″ | 1/2″ | 1-3/8″ | 5-3/8″ | 4-3/4″ | 7/8″ | 2″ | 9/32″ | 170.0 |
Material Available for V-belt Pulley
- Cast Iron V Belt Pulley
- Steel V Belt Pulley
- Stainless Steel
- Aluminium Drive Belt Pulley
A pulley(sheave), is a mechanism composed of a wheel or shaft that may have a groove between two flanges around its circumference. A belt or chain usually runs over the wheel and inside the groove, if present.
Pulleys are working to change the direction of an applied force, transmit rotational motion, or realize a mechanical advantage in either a linear or rotational system of action. Two or more pulleys together are called a block and tackle. It is one of the six simple machines.
V-belt pulleys are available technically qualified products for v-belt driven pulleys for every type of plant & machinery. Your complete specification will give us a more specific supply of required pulleys. We also produce made-to-order as per the sizes and unique requirements of customers.
Advantages:
- The extensive standard range of many profiles and dimensions
- High availability
- Favorable price-performance ratio
- Interchangeable due to international standardization
- Simple assembly
- High running smoothness due to balanced discs
- Low wear
In addition to our standard range, we specialize in designing and manufacturing pulleys with the American profiles 3V, 5V, and 8V, as well as unique designs according to individual customer specifications.
Areas of Applications:
The application areas are found in the entire general machine and plant construction and in agricultural and forestry technology.
 |
 |
Technological Processing
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases. By sea or air shipment.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
