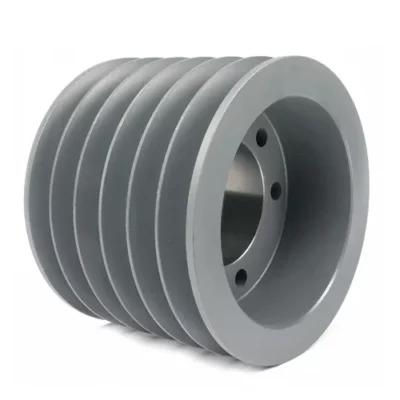

6B QD Bushed Sheaves
6B QD Bushed Sheaves pulleys are working with A, AX, AA, 4L, B, BX, BB. And 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size, they are making with SD, SK, SF, or E QD bushings, which we also stock. Most of our six-groove 6B QD bushed pulleys are making from a high-strength grade 35 cast iron, with phosphate-coated, painted for anti-corrosion. We will balance the sheaves at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don’t have to replace the whole assembly. If just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the “fixed-bore” style.

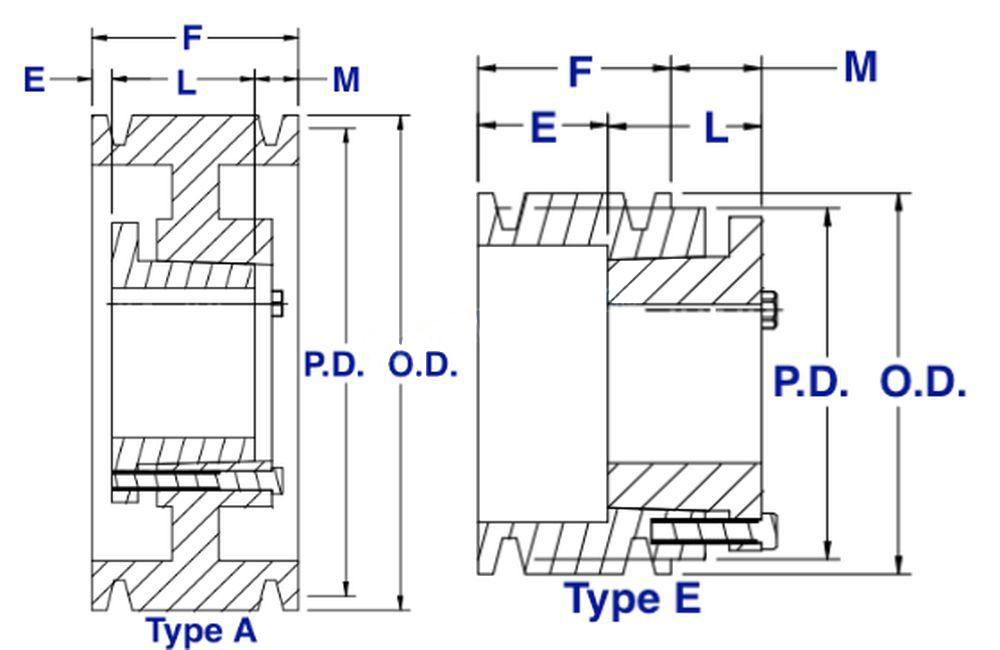

6B Style QD Bushed Pulley Size Chart
Size
|
Bushing Type
|
Pulley Type
|
Pitch Diameter (5L/B)
|
Pitch Diameter (4L/ A)
|
Outside Diameter
|
(E)
|
(F)
|
(L)
|
(M)
|
Pulley Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|
6B34SD | SD | E | 3.4″ | 3.0″ | 3.75″ | 3-31/32″ | 4-3/4″ | 1-13/16″ | 1-1/32″ | 6.7 |
6B36SD | SD | E | 3.6″ | 3.2″ | 3.95″ | 3-31/32″ | 4-3/4″ | 1-13/16″ | 1-1/32″ | 7.4 |
6B38SD | SD | E | 3.8″ | 3.4″ | 4.15″ | 3-31/32″ | 4-3/4″ | 1-13/16″ | 1-1/32″ | 8.0 |
6B40SD | SD | E | 4.0″ | 3.6″ | 4.35″ | 3-19/32″ | 4-3/4″ | 1-13/16″ | 21/32″ | 8.4 |
6B42SD | SD | E | 4.2″ | 3.8″ | 4.55″ | 3-19/32″ | 4-3/4″ | 1-13/16″ | 21/32″ | 9.0 |
6B44SD | SD | E | 4.4″ | 4.0″ | 4.75″ | 3-19/32″ | 4-3/4″ | 1-13/16″ | 21/32″ | 9.7 |
6B46SD | SD | A | 4.6″ | 4.2″ | 4.95″ | 21/32″ | 4-3/4″ | 1-13/16″ | 2-9/32″ | 10.1 |
6B48SD | SD | A | 4.8″ | 4.4″ | 5.15″ | 21/32″ | 4-3/4″ | 1-13/16″ | 2-9/32″ | 10.6 |
6B50SD |
SD | A | 5.0″ | 4.6″ | 5.35″ | 21/32″ | 4-3/4″ | 1-13/16″ | 2-9/32″ | 11.0 |
6B52SD | SD | A | 5.2″ | 4.8″ | 5.55″ | 21/32″ | 4-3/4″ | 1-13/16″ | 2-9/32″ | 12.0 |
6B54SK | SK | A | 5.4″ | 5.4″ | 5.75″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 13.0 |
6B56SK | SK | A | 5.6″ | 5.2″ | 5.95″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 14.0 |
6B58SK | SK | A | 5.8″ | 5.4″ | 6.15″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 14.6 |
6B60SK | SK | A | 6.0″ | 5.6″ | 6.35″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 15.0 |
6B62SK | SK | A | 6.2″ | 5.8″ | 6.55″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 16.0 |
6B64SK | SK | A | 6.4″ | 6.0″ | 6.75″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 17.0 |
6B66SK | SK | A | 6.6″ | 6.2″ | 6.95″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 18.0 |
6B68SK | SK | A | 6.8″ | 6.4″ | 7.15″ | 17/32″ | 4-3/4″ | 1-15/16″ | 2-9/32″ | 19.0 |
6B70SF | SF | A | 7.0″ | 6.6″ | 7.35″ | 27/32″ | 4-3/4″ | 2-1/16″ | 1-27/32″ | 20.0 |
6B74SF | SF | A | 7.4″ | 7.4″ | 7.75″ | 27/32″ | 4-3/4″ | 2-1/16″ | 1-27/32″ | 22.0 |
6B80SF | SF | A | 8.0″ | 7.6″ | 8.35″ | 27/32″ | 4-3/4″ | 1-15/16″ | 1-27/32″ | 24.0 |
6B86SF | SF | A | 8.6″ | 8.2″ | 8.95″ | 27/32″ | 4-3/4″ | 1-15/16″ | 1-27/32″ | 26.0 |
6B94SF |
SF | A | 9.4″ | 9.0″ | 9.75″ | 27/32″ | 4-3/4″ | 1-15/16″ | 1-27/32″ | 27.0 |
6B110SF | SF | A | 11.0″ | 10.6″ | 11.35″ | 27/32″ | 4-3/4″ | 1-15/16″ | 1-27/32″ | 32.0 |
6B124SF | SF | A | 12.4″ | 12.0″ | 12.75″ | 27/32″ | 4-3/4″ | 1-15/16″ | 1-27/32″ | 29.0 |
6B136SF | SF | A | 13.6″ | 13.2″ | 13.95″ | 27/32″ | 4-3/4″ | 2-1/16″ | 1-27/32″ | 44.0 |
6B154SF | SF | A | 15.4″ | 15.0″ | 15.75″ | 27/32″ | 4-3/4″ | 2-1/16″ | 1-27/32″ | 50.0 |
6B160SF | SF | A | 16.0″ | 15.6″ | 16.35″ | 27/32″ | 4-3/4″ | 2-1/16″ | 1-27/32″ | 54.0 |
6B184SF | SF | A | 18.4″ | 18.0″ | 18.75″ | 27/32″ | 4-3/4″ | 2-1/16″ | 1-27/32″ | 62.0 |
6B200E | E | A | 20.0″ | 19.6″ | 20.35″ | 7/32″ | 4-3/4″ | 2-3/4″ | 1-25/32″ | 74.0 |
6B250E | E | A | 25.0″ | 24.6″ | 25.35″ | 7/32″ | 4-3/4″ | 2-3/4″ | 1-25/32″ | 96.0 |
6B300E | E | A | 30.0″ | 29.6″ | 30.35″ | 7/32″ | 4-3/4″ | 2-3/4″ | 1-25/32″ | 119.0 |
6B380E | E | A | 38.0″ | 37.6″ | 38.35″ | 7/32″ | 4-3/4″ | 2-3/4″ | 1-25/32″ | 134.0 |
Why Choose Our V-belt Pulley?
We are a professional manufacturer of standard V pulley. Our pulley feature is as follows:
1. Type: SPZ, SPA, SPB, SPC, Size from 1 to 12 grooves.
2. Material: superior Gray cast iron GG20, GG22, GG25, 45C. GG25, GGG40, Aluminium, etc.
3. Pilot bore, taper bore Pulleys(SPA, SPB, SPC, SPZ), adjustable pulleys, multi-wedge pulleys. V-belt pulley for taper bush, with solid hubs. Standard sheaves, taper bushes sheaves, AK, BK series sheaves. Variable pitch sheaves, Europe-type sheaves. Taper bushings.
4. Surface treatment: Black oxide, phosphate, painted or passivated, zinc planting for C45 pulleys, anodized for Al pulleys.
5. Laser printing.
6. Easy to install and disassemble.
7. Strict QC management, good hardness and strength with Precision machining, High Precision, and anticorrosive capability.
8. OEM and ODM are available.
9. Strictly balanced with high precision dynamical balancing tools, unbalanced volume corrected accurately.
With standardized design and well-equipped CNC machining systems. Our pulleys have high Precision and good interchangeability. And now our products are mainly exported to European and American countries. Our prices are the most competitive in China, so if there is any inquiry, please do not hesitate to contact us. We will always do our best to meet your requirements!
Take advantage of raw materials and labor, and our product prices are the most competitive in China. And at the moment 90% of our products have been exported to Euro, we guarantee to provide you good quality with best prices.
