6F series Taper Bore Weld-on hubs
When considering or specifying 6F series Taper Bore Weld on hubs, it’s important to note the exact specifications required for your application, such as bore diameter, hub dimensions, material (usually steel or stainless steel), and any additional features needed (like keyways or set screws).
These hubs are commonly used in industries such as manufacturing, construction, and mechanical engineering where robust, reliable connections are crucial.

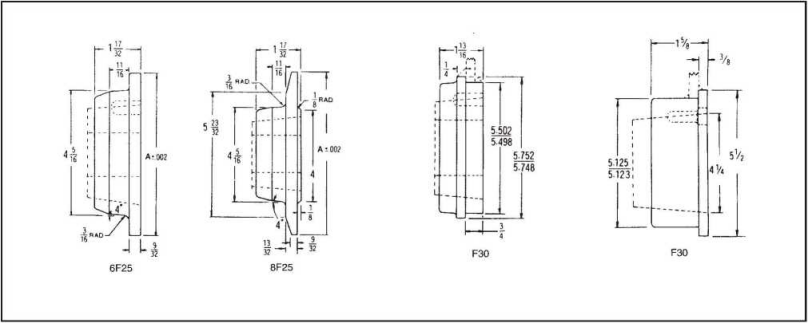

HUB NO. | BUSH NO. | MAX.BORE | A
O.D. |
Wt | HUB NO. | BUSH NO. | MAXBORE | A
O.D. |
Wt |
6F25P | 2517 | 2-1/2 | 6.048 | 3.9 | 8F25P | 2517 | 2-1/2 | 7.962 | 6.3 |
6F25A | 2517 | 2-1/2 | 5.685 | 3.8 | 8F25A | 2517 | 2-1/2 | 7.685 | 6.2 |
6F25B | 2517 | 2-1/2 | 5.664 | 3.8 | 8F25B | 2517 | 2-1/2 | 7.664 | 6.2 |
6F25C | 2517 | 2-1/2 | 5.625 | 3.8 | 8F25C | 2517 | 2-1/2 | 7.625 | 6.2 |
6F25D | 2517 | 2-1/2 | 5.579 | 3.8 | 8F25D | 2517 | 2-1/2 | 7.579 | 6.2 |
6F25E | 2517 | 2-1/2 | 5.537 | 3.8 | 8F25E | 2517 | 2-1/2 | 7.537 | 6.2 |
F30 | 3020 | 3 | 5.3 |
