6TB series pulleys(6TB Gripbelt Sheaves with Split Taper Bushings) are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with P1, P2, Q1, or Q2 taper bushings, which we also stock. Most of our 6TB pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
6TB Style Pulley Size Chart

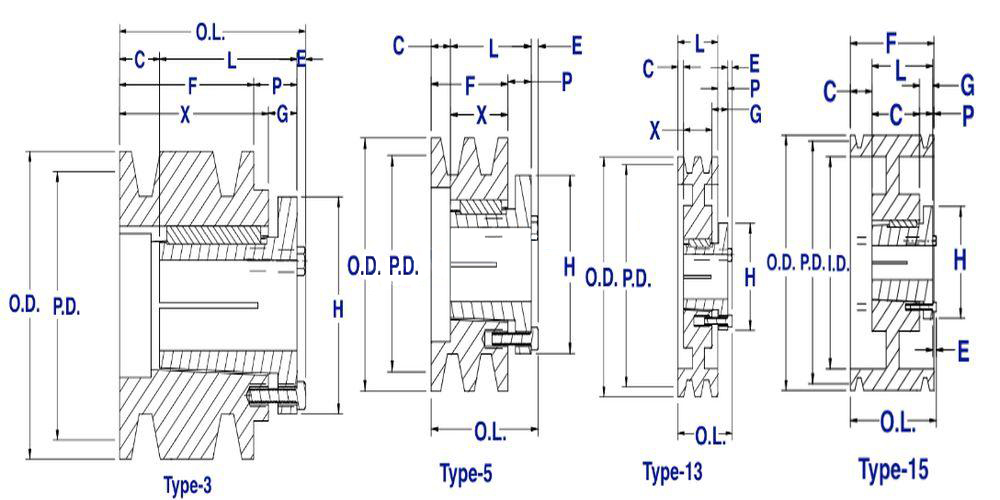

6TB Gripbelt Sheaves with Split Taper Bushings Details
Size | Bushing Type | Pitch Diameter (4L/A) | Pitch Diameter (5L/B) | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Pulley Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6TB34 | P2 | 3.0″ | 3.4″ | 3.75″ | 3 | 6-1/16″ | 2-15/16″ | 1-1/16″ | 2-7/8″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 6.1 |
6TB36 | P2 | 3.2″ | 3.6″ | 3.95″ | 3 | 6-1/16″ | 2-15/16″ | 1-1/16″ | 2-7/8″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 7.3 |
6TB38 | P2 | 3.4″ | 3.8″ | 4.15″ | 5 | 5-5/8″ | 2-15/16″ | 5/8″ | 2-7/16″ | 3″ | 4-3/4″ | — | 2-5/16″ | 1/4″ | 7.0 |
6TB40 | P2 | 3.6″ | 4.0″ | 4.35″ | 5 | 5-5/8″ | 2-15/16″ | 5/8″ | 2-7/16″ | 3″ | 4-3/4″ | — | 2-5/16″ | 1/4″ | 8.1 |
6TB42 | P2 | 3.8″ | 4.2″ | 4.55″ | 5 | 5-5/8″ | 2-15/16″ | 5/8″ | 2-7/16″ | 3″ | 4-3/4″ | — | 2-5/16″ | 1/4″ | 9.3 |
6TB44 | P2 | 4.0″ | 4.4″ | 4.75″ | 13 | 5″ | 2-15/16″ | 0 | 1-13/16″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 9.9 |
6TB46 | P2 | 4.2″ | 4.6″ | 4.95″ | 13 | 5″ | 2-15/16″ | 0 | 1-13/16″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 11.0 |
6TB48 | P2 | 4.4″ | 4.8″ | 5.15″ | 13 | 5″ | 2-15/16″ | 0 | 1-13/16″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 11.8 |
6TB50 | P2 | 4.6″ | 5.0″ | 5.35″ | 13 | 5″ | 2-15/16″ | 0 | 1-13/16″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 12.9 |
6TB52 |
P2 | 4.8″ | 5.2″ | 5.55″ | 13 | 5″ | 2-15/16″ | 0 | 1-13/16″ | 3″ | 4-3/4″ | 5/8″ | 2-5/16″ | 1/4″ | 14.8 |
6TB54 | Q1 | 5.0″ | 5.4″ | 5.75″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 11.8 |
6TB56 | Q1 | 5.2″ | 5.6″ | 5.95″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 17.3 |
6TB58 | Q1 | 5.4″ | 5.8″ | 6.15″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 14.5 |
6TB60 | Q1 | 5.6″ | 6.0″ | 6.35″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 15.4 |
6TB62 | Q1 | 5.8″ | 6.2″ | 6.55″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 16.4 |
6TB64 | Q1 | 6.0″ | 6.4″ | 6.75″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 18.6 |
6TB66 | Q1 | 6.2″ | 6.6″ | 6.95″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 18.5 |
6TB68 | Q1 | 6.4″ | 6.8″ | 7.15″ | 13 | 5-1/32″ | 2-1/2″ | 0 | 2-1/4″ | 4-1/8″ | 4-3/4″ | 3/4″ | 1-3/4″ | 9/32″ | 20.8 |
6TB70 | Q2 | 6.6″ | 7.0″ | 7.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 22.8 |
6TB74 | Q2 | 7.0″ | 7.4″ | 7.75″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 26.5 |
6TB80 | Q2 | 7.6″ | 8.0″ | 8.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 24.1 |
6TB86 | Q2 | 8.2″ | 8.6″ | 8.95″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 27.1 |
6TB90 | Q2 | 8.6″ | 9.0″ | 9.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 30.6 |
6TB94 | Q2 | 9.0″ | 9.4″ | 9.75″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 32.8 |
6TB110 | Q2 | 10.6″ | 11.0″ | 11.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 36.6 |
6TB124 | Q2 | 12.0″ | 12.4″ | 12.75″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 39.8 |
6TB136 |
Q2 | 13.2″ | 13.6″ | 13.95″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 44.9 |
6TB154 | Q2 | 15.0″ | 15.4″ | 15.75″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 49.9 |
6TB160 | Q2 | 15.6″ | 16.0″ | 16.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 54.0 |
6TB184 | Q2 | 18.0″ | 18.4″ | 18.75″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 62.0 |
6TB200 | Q2 | 19.5″ | 20.0″ | 20.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 74.0 |
6TB250 | Q2 | 24.5″ | 25.0″ | 25.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 89.5 |
6TB300 | Q2 | 29.5″ | 30.0″ | 30.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 128.0 |
6TB380 | Q2 | 37.5″ | 38.0″ | 38.35″ | 13 | 4-25/32″ | 3-1/2″ | 1/4″ | 1″ | 4-1/8″ | 4-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 179.0 |
