6TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All “C” Section Belts

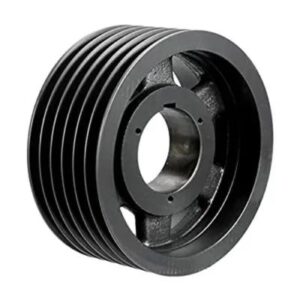

6TC series six-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q2 taper bushings, which we also stock. Most 6TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
6TC Series Cast Iron Sheaves
6TC series six-groove cast iron sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q2 taper bushings, which we also stock. Most 6TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
6TC Series Cast Iron Sheaves Size Chart

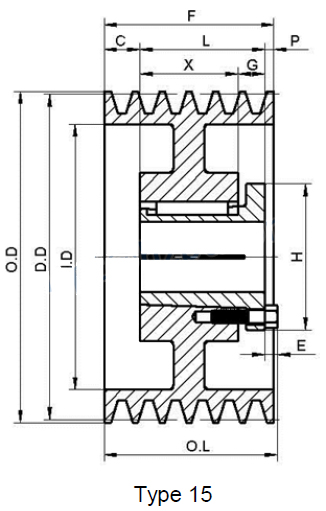

Size | Bushing Type | Pitch Diameter | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Sheave Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6TC70 | Q2 | 7.0 | 7.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 29.9 |
6TC72 | Q2 | 7.2 | 7.60 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 33.6 |
6TC74 | Q2 | 7.4 | 7.80 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 33.3 |
6TC76 | Q2 | 7.6 | 8.00 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 37.9 |
6TC78 | Q2 | 7.8 | 8.20 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 33.5 |
6TC80 | Q2 | 8.0 | 8.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 37.6 |
6TC82 | Q2 | 8.2 | 8.60 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 34.0 |
6TC84 | Q2 | 8.4 | 8.80 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 37.0 |
6TC86 | Q2 | 8.6 | 9.00 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 35.0 |
6TC88 | Q2 | 8.8 | 9.20 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 39.4 |
6TC90 | Q2 | 9.0 | 9.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 36.8 |
6TC92 | Q2 | 9.2 | 9.60 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 41.0 |
6TC94 | Q2 | 9.4 | 9.80 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 39.4 |
6TC96 |
Q2 | 9.6 | 10.00 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 43.6 |
6TC98 | Q2 | 9.8 | 10.20 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 42.0 |
6TC100 | Q2 | 10.0 | 10.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 47.3 |
6TC102 | Q2 | 10.2 | 10.60 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 44.4 |
6TC106 | Q2 | 10.6 | 11.00 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 45.4 |
6TC110 | Q2 | 11.0 | 11.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 47.0 |
6TC114 | Q2 | 11.4 | 11.80 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 49.6 |
6TC120 | Q2 | 12.0 | 12.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 51.0 |
6TC130 | Q2 | 13.0 | 13.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 56.0 |
6TC160 | Q2 | 16.0 | 16.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 72.0 |
6TC200 | Q2 | 20.0 | 20.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 88.3 |
6TC240 | Q2 | 24.0 | 24.40 | 15 | 6-1/4″ | 3-1/2″ | 1″ | 1-3/4″ | 4-1/8″ | 6-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 108.0 |
6TC Series Sheave Pulleys Features
- Manufactured from grey cast iron
- Pulley & pulley groove specification conforms to IS 3142 & ISO 4183 standards
- Ease of installation and removal
- Facilitates easy selection of different bore and key-way requirements
- Statically balanced
V-belt Pulley American Stanard — TA/TB/TC Series
The American standard pulley(6TC Series Cast Iron Sheaves) is manufactured according to the American ANSI standard. Its primary material is gray iron, which is suitable for 2L, 3L, 4L, 5L, A, B, C, D, 3V, 5V, 8V belts, J, L, and M multi-ribbed belts. American standard pulley product types: A.K., B.K., TA, T.B., T.C., B, C, D, 3V, 5V, 8V, J, L, M, V.P., V.L., V.M. Taper bushing pulleys are used in conjunction with STB, Q.D. or T.B. taper bushings.
