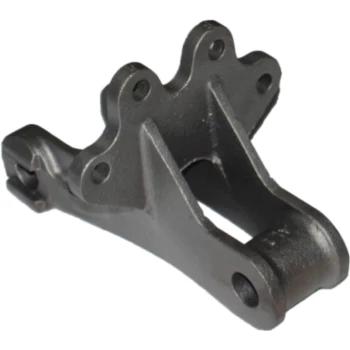

700 Class Pintle Chain Attachment

The 700 Class Pintle Chain Attachment is a one-piece cast offset link construction, with steel-clipped head pins connecting the links. The links feature generous head stops, which provide maximum locking force under load while limiting wear to the pin inside the barrel of the link. This design is ideal for use with heavy-duty pintles and pintle chains.

Category:
Description

700 Class Pintle Chain Attachment

The 700 Class Pintle Chain Attachment is a one-piece cast offset link construction, with steel-clipped head pins connecting the links. The links feature generous head stops, which provide maximum locking force under load while limiting wear to the pin inside the barrel of the link. This design is ideal for use with heavy-duty pintles and pintle chains.
The chain’s long pitch makes it ideal for water treatment facilities, sewage plants, and conveying applications. The closed-bearing construction prevents dirt from clogging the pin holes. The chain also features a long, smooth operation. The long-pitch 700 Class Pintle Chain Attachment provides maximum strength while weighing less than two tons.
700 Class Pintle Chain Attachment

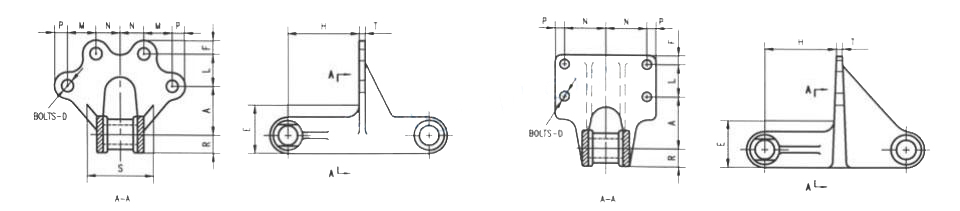

F-Attachments

Chain NO. Weight Per Foot Pounds Dimensions in Decimal Inches
A D E F H L M N P R S T
720-F2 6.6 2 1/2 11/2 9/16 3 15/16 15/32 31/32 17/32 3/4 23/4 1/4
720S-F2 7.9 2 3/8 15/8 9/16 3 15/16 15/32 31/32 9/16 25/32 – 1/4
720SC-F2 8.4 2 3/8 19/16 9/16 3 15/16 15/32 31/32 9/16 25/32 – 1/4
730-F2 7.7 2 3/8 13/4 17/32 3 15/16 15/32 31/32 17/32 7/8 25/8 3/8
730SC-F2 9.4 2 3/8 13/4 17/32 3 15/16 15/32 31/32 17/32 7/8 – 3/8
730-F3 13.4 25/8 1/2 13/4 7/8 3 21/2 – 17/8 11/16 7/8 – 9/32
730SC-F3 13.4 25/8 1/2 13/4 7/8 3 21/2 – 17/8 11/16 7/8 – 9/32
720S-F226 11.4 23/8 3/8 15/8 1 3 25/8 – 17/8 11/16 25/32 – 5/16
720SC-F226 10.2 23/8 3/8 19/16 7/8 3 25/8 – 17/8 5/8 25/32 – 1/4
730-F226

730SC-F226

 13.0

12.9

 23/8

23/8

 3/8

3/8

 13/4

13/4

 1

1

 3

3

 25/8

25/8

 –

–

 17/8

17/8

 11/16

3/4

 7/8

25/32

 –

–

 9/32

9/32
720S-F228 13.5 23/8 3/8 19/16 7/8 3 41/2 – 17/8 7/8 25/32 – 1/4
720SC-F228 11.9 23/8 3/8 19/16 7/8 3 41/2 – 17/8 7/8 25/32 – 1/4
730-F228 15.5 23/8 3/8 13/4 11/8 3 41/2 – 17/8 11/16 7/8 – 9/32
730SC-F228 14.6 23/8 3/8 13/4 7/8 3 41/2 – 17/8 7/8 7/8 – 9/32

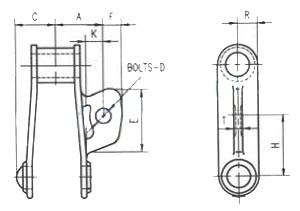

A-Attachments

Chain NO. Weight Per Foot Pounds Dimensions in Decimal Inches
A C D E F H K R T
730-A42 7.3 27/16 127/32 5/8 31/4 13/16 3 11/8 7/8 5/8

K-Attachments

Chain NO. Weight Per Foot Pounds Dimensions in Decimal Inches
A D E F G H M R T
710-K2 8.1 31/8 3/8 35/16 17/32 13/16 13/16 25/16 11/16 1/4
730-K2 8.6 3 1/2 4 11/16 1 111/16 25/8 7/8 5/16

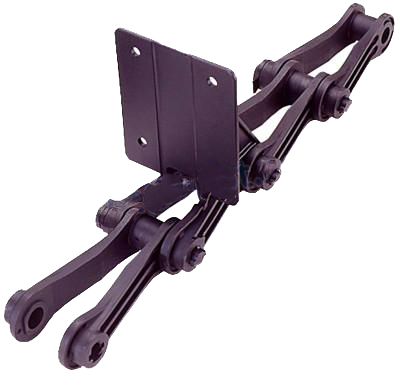

700 Class Pintle Chain

700 class pintle chains can be mostly used in clarifiers and bars screens DAF, API, and various other conveying applications. We provide cast, steel plastic, stainless steel 700 class pintle chains, as well as an extensive range of sprockets for sale.
