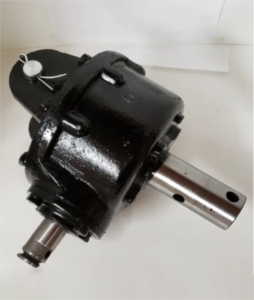

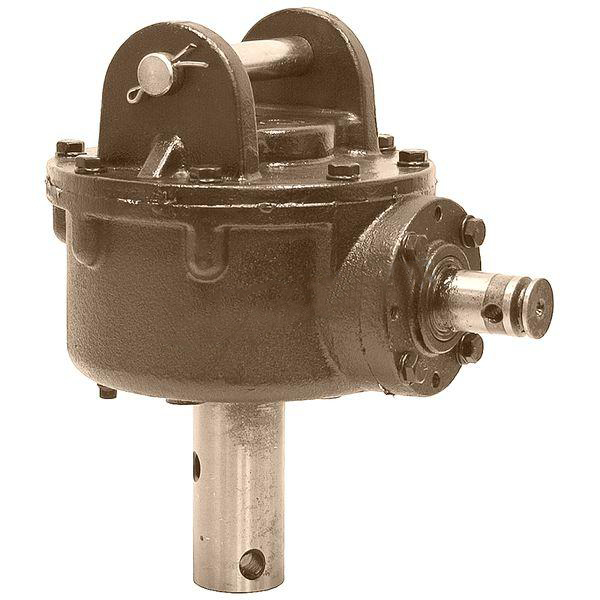

75 HP Heavy Duty Post Hole Digger Gearbox for 3 Point Post Hole Digger
A 75 HP heavy duty post hole digger gearbox(3 Point Post Hole Digger Gearbox) is a mechanical device. Working to transmit power from a tractor or other power source to a post hole digger attachment. Designed to handle heavy-duty applications and is capable of transmitting up to 75 horsepower of power to the digger. The post hole digger gearbox typically includes a set of gears. Transmit power from the input shaft to the output shaft, which drives the auger of the post hole digger. Typically designed to provide a specific speed and torque output to match the requirements of the post hole digger attachment.
A heavy duty post hole digger gearbox is necessary for post hole diggers. They are working in tough soil conditions or for digging large diameter holes. The post hole digger gearbox must be strong enough to handle the high torque loads. The gearboxes are generated during the digging process and durable enough to withstand the wear and tear of heavy use. If you are looking for a reliable and powerful gearbox for your post hole digger. Then a 75 HP heavy duty post hole digger gearbox is a great option. It is capable of handling heavy-duty applications. Gearbox is making from durable materials. This makes it a reliable and long-lasting choice for post hole digging.

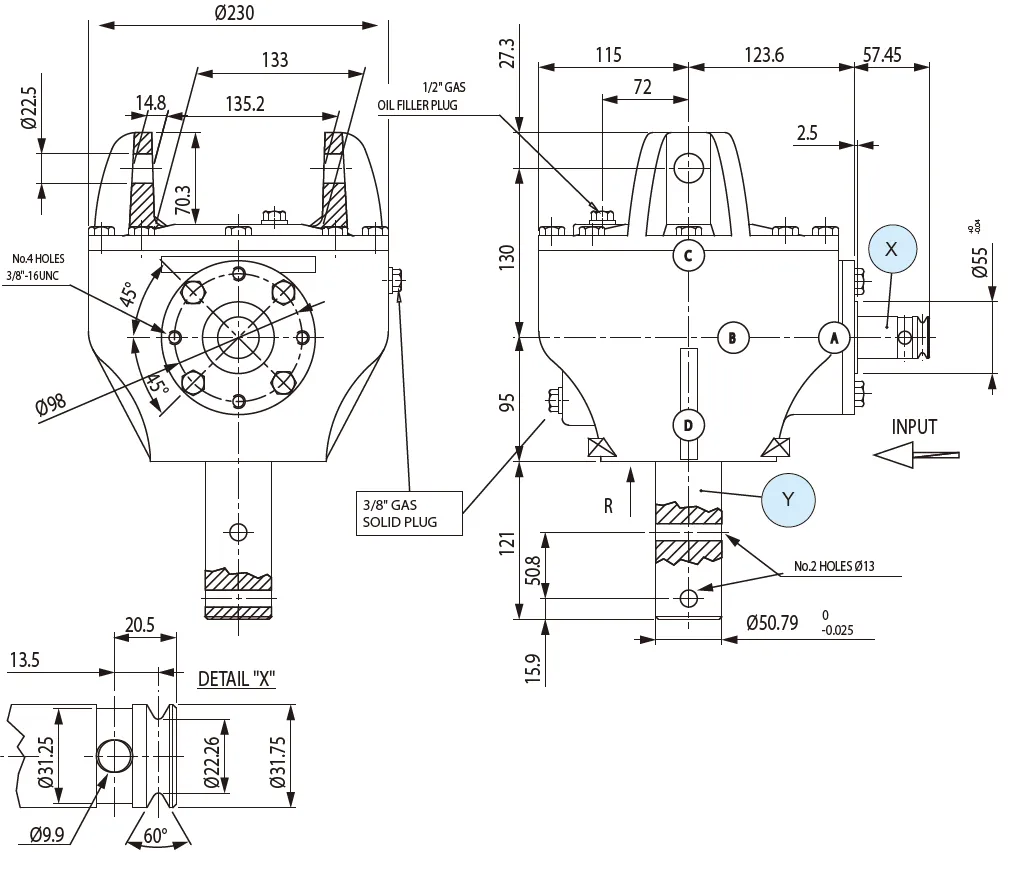

75 HP Heavy Duty Post Hole Digger Gearbox Dimensions
Specification
– 75 HP Rating
– Includes Guards
– 3:1 Ratio
– 1-1/4″ Round Input Shaft w/ 3/8″ mounting hole
– 2″ Round Output Shaft with dual 1/2″ holes for mounting augers
– 7/8″ Mounting Pin, 7-1/2″ Long
– Mounting ears 5-3/8″ inside & 6-5/8″ outside to outside.
– Durable black paint
– 75 lbs
– Shipped Without Oil ( 80W-90 Gear Oil)

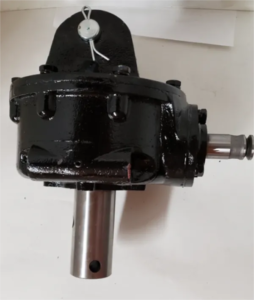

Post Hole Digger Gearbox Parts
Here are some of the parts that are commonly used in a 75 HP heavy duty post hole digger gearbox:
- Input shaft
- Output shaft
- Housing
- Gears
- Bearings
- Seals
- Oil
The input shaft is the shaft that the power is transferring to from the engine or PTO. The output shaft is the shaft that the power is transferring from the gearbox to the post hole digger attachment. The housing is the main body of the gearbox, and it houses the gears, bearings, and seals. The gears are what transmit the power from the input shaft to the output shaft. The bearings support the shafts and allow them to rotate smoothly. The seals prevent oil from leaking out of the gearbox. The oil is used to lubricate the gears and bearings and to keep them cool.
If any of these parts fail, it can cause the gearbox to malfunction. It is important to regularly inspect the gearbox for signs of wear and tear and to replace any worn or damaged parts as soon as possible. This will help to prevent the gearbox from failing and will extend its lifespan.
 |
 |
