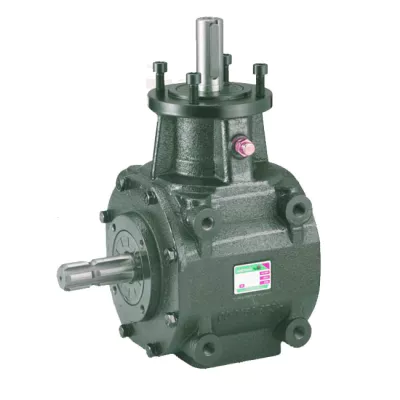

75 Rotary Tiller Cultivator Gearbox for Agricultural
75 Rotary Tiller Cultivator Gearbox Farm gearbox Rotary Mower Tiller Cultivator Tractors Small Agricultural Gearboxes
This series gearbox is mainly used on mowers (grass cutters). It has the characteristics of high universality, simple structure, and good performance.
Advantage:
- According to ISO9001 Quality System Third Party of CQC and passed second-degree safety quality standardization for the machinery manufacturing enterprise.
- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques.
- Strictly quality control by German CMM.
- Various gearboxes are used in agricultural machines and industrial machines.
- Advanced technics, strong self-development power, ability to produce new type gearbox according to customer’s design drawings.

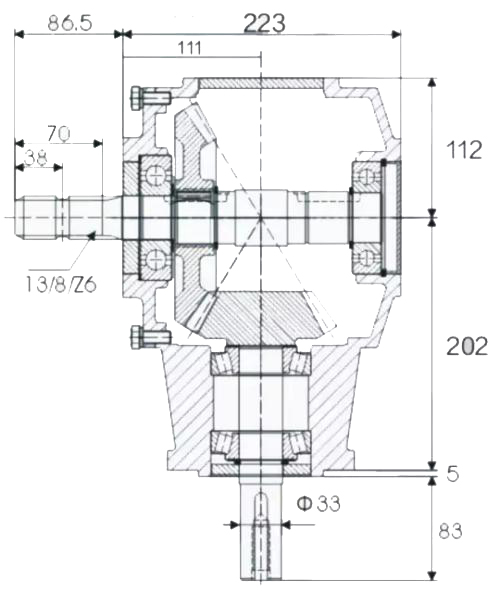

ITEM | HC-75 |
Ratio | 1:3/1:2.83/1:1.65/1:1.6 |
Teeth | 12/36 34/12 33/20 24/15 |
Module | 6.0/5.35/5.5/7.5 |
Power(HP) | 75/75/100/125 |
Rated Input | 540rpm |
Input/Output Description | 3/8 Z6 Optic axis |
Weight(N.W) | 37KG |
Power-transtech is a professional agricultural gearbox manufacturer.
It produces more than 1,000 kinds of products and supports OEM and ODM. Including lawn mower series, rotary tiller series, rice harvester series, grain transportation storage series, etc. Has exported to numerous countries like America, Australia, India, Poland, etc. We work with many well-known brands like John Deere, Bush Hog, etc. Our annual production is 300,000 units, and our turnover in 2021 is USD 28 million. The export ratio is 80%, and the domestic market is 20%.
PTO Shafts for Agricultural Gearboxes
A PTO shaft is an integral part of an agriculture gearbox; failure to maintain it properly can severely damage the PTO mechanism. PTO shafts are crucial for maintaining the performance of the agricultural implementation, as they are responsible for connecting the transmission to the implementation. To avoid problems with vibration, a good PTO shaft should resist torsion and shear stress. We offer a variety of durable PTO shafts to meet all your requirements. Contact us now!

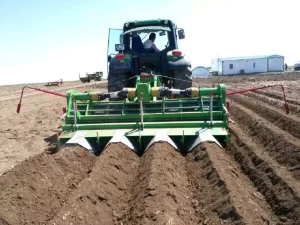

Introduction of Rotary Tiller
The blades of the rotary tiller are attachment to the rotor, and bolt-on directly to a single horizontal power shaft 8″ to 12″ above the soil surface. For row crop weeding, they are more expensive and require more maintenance than sweepers. They operate faster than sweeping in crusted soil, but slower under normal conditions. However, tillers are better suited for other tillage roles and can reduce field passage by adding residue, forming beds, and creating seedbeds in a single pass. Uses include band planting cover crops, preparing permanent planting beds, renovating strawberry plantings, and adding compost or soil-applied herbicides. Blade length limits how high the crop can safely pass under the solid drive shaft.
A manufacturer’s multi-belt drive cushions sudden shocks. Features to check include multi-speed gearbox drive (slowest RPM to prevent soil structure damage), PTO slip clutch for chain drive models, and depth control mode. When working on rough soil, the front depth gauge wheels do not work as well as a side slip or a rear gravel/roller. An optional crop guard keeps soil from flowing in.
Other Agricultural Gearboxes
Agricultural Gearbox Production Workshop
Established in 1992. locate company in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
