80 Chain Sprockets
Click to enlarge

80 Chain Sprockets

80 Chain Sprockets are manufactured in accordance with ANSI B29.1 Standards and are made for 1″ pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity.

Categories: , Tag:
Description

80 Chain Sprockets

80 Chain Sprockets are accordance to ANSI B29.1 Standards and are making for 1″ pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity. Out standard steel sprockets utilize a black-oxide coating for added corrosion protection, they are also manufactured from a premium high-strength grade of mild steel for an additional increase in sprocket life.

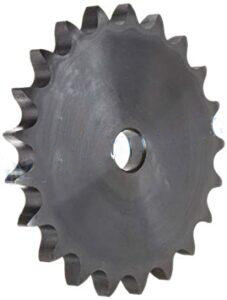

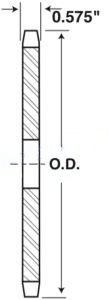

80 A-Plate Sprockets (80 Chain Sprockets)

80 Chain Sprockets

 Size Type Tooth Count Stock Bore Weight (LBS)
80A09 A 9 15/16″ 0.8
80A10 A 10 15/16″ 1.0
80A11 A 11 15/16″ 1.3
80A12 A 12 15/16″ 1.5
80A13 A 13 15/16″ 1.8
80A14 A 14 15/16″ 2.2
80A15 A 15 15/16″ 2.5
80A16 A 16 15/16″ 2.9
80A17 A 17 15/16″ 3.3
80A18 A 18 15/16″ 3.7
80A19 A 19 15/16″ 4.1
80A20 A 20 15/16″ 4.7
80A21 A 21 15/16″ 4.9
80A22 A 22 15/16″ 5.5
80A23 A 23 15/16″ 6.3
80A24 A 24 15/16″ 6.7
80A25 A 25 15/16″ 7.2
80A26 A 26 1-3/16″ 7.8
80A27 A 27 1-3/16″ 8.6
80A28 A 28 1-3/16″ 9.3
80A29 A 29 1-3/16″ 9.8
80A30 A 30 1-3/16″ 10.7
80A31 A 31 1-3/16″ 11.3
80A32 A 32 1-3/16″ 12.1
80A33 A 33 1-3/16″ 13.6
80A34 A 34 1-3/16″ 14.3
80A35 A 35 1-3/16″ 14.8
80A36 A 36 1-3/16″ 16.1
80A37 A 37 1-3/16″ 16.8
80A38 A 38 1-3/16″ 17.2
80A39 A 39 1-3/16″ 17.9
80A40 A 40 1-3/16″ 18.9
80A41 A 41 1-1/4″ 21.0
80A42 A 42 1-1/4″ 21.8
80A43 A 43 1-1/4″ 23.6
80A44 A 44 1-1/4″ 24.3
80A45 A 45 1-1/4″ 25.2
80A46 A 46 1-1/4″ 26.6
80A47 A 47 1-1/4″ 26.4
80A48 A 48 1-1/4″ 27.8
80A49 A 49 1-1/4″ 28.9
80A50 A 50 1-1/4″ 30.9
80A51 A 51 1-1/4″ 32.2
80A52 A 52 1-1/4″ 33.0
80A53 A 53 1-1/4″ 34.9
80A54 A 54 1-1/4″ 36.6
80A55 A 55 1-1/4″ 37.5
80A56 A 56 1-1/4″ 39.4
80A57 A 57 1-1/4″ 40.4
80A58 A 58 1-1/4″ 41.3
80A59 A 59 1-1/4″ 42.9
80A60 A 60 1-1/4″ 45.3
80A65 A 65 1-1/4″ 52.2
80A70 A 70 1-1/2″ 59.8
80A72 A 72 1-1/2″ 65.7
80A76 A 76 1-1/2″ 70.2
80A80 A 80 1-1/2″ 79.6
80A84 A 84 1-1/2″ 86.1
80A90 A 90 1-1/2″ 101.0
80A96 A 96 1-1/2″ 120.0
80A112 A 112 1-1/2″ 165.0

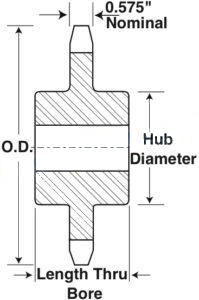

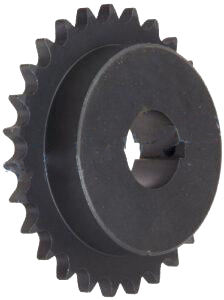

B-Hub Sprockets

Size Type Tooth Count Stock Bore Recommend Max. Bore Hub Diameter Length Thru Bore Weight (LBS)
80B8 B 8 1″ 1″ 1-15/16″ 1-5/8″ 1.4
80B9 B 9 1″ 1-5/16″ 2-1/4″ 1-5/8″ 1.6
80B10 B 10 1″ 1-1/2″ 2-9/16″ 1-5/8″ 2.2
80B11 B 11 1″ 1-5/8″ 2-13/16″ 1-5/8″ 3.2
80B12 B 12 1″ 1-7/8″ 3-1/8″ 1-5/8″ 3.4
80B13 B 13 1″ 2″ 3″ 1-1/2″ 3.5
80B14 B 14 1″ 2-1/4″ 3-1/4″ 1-1/2″ 4.1
80B15 B 15 1″ 2-1/2″ 3-13/16″ 1-1/2″ 5.3
80B16 B 16 1″ 2-3/4″ 4″ 1-1/2″ 5.9
80B17 B 17 1″ 2-3/4″ 4″ 1-1/2″ 6.6
80B18 B 18 1″ 2-3/4″ 4-1/4″ 1-1/2″ 7.3
80B19 B 19 1″ 2-3/4″ 4-1/4″ 1-1/2″ 7.8
80B20 B 20 1″ 2-3/4″ 4-1/4″ 1-1/2″ 8.4
80B21 B 21 1″ 2-3/4″ 4-1/4″ 1-1/2″ 9.4
80B22 B 22 1″ 2-3/4″ 4-1/4″ 1-1/2″ 10.0
80B23 B 23 1″ 2-3/4″ 4-1/4″ 1-1/2″ 10.7
80B24 B 24 1″ 2-3/4″ 4-1/4″ 1-1/2″ 11.3
80B25 B 25 1″ 2-3/4″ 4-1/4″ 1-1/2″ 11.9
80B26 B 26 1-1/4″ 3-1/4″ 4-1/4″ 2″ 14.3
80B27 B 27 1-1/4″ 3-1/4″ 4-3/4″ 2″ 15.4
80B28 B 28 1-1/4″ 3-1/4″ 4-3/4″ 2″ 16.0
80B29 B 29 1-3/16″ 3-1/4″ 4-3/4″ 2″ 17.1
80B30 B 30 1-3/16″ 3-1/4″ 4-3/4″ 2″ 17.4
80B31 B 31 1-3/16″ 3-1/4″ 4-3/4″ 2″ 18.7
80B32 B 32 1-3/16″ 3-1/4″ 4-3/4″ 2″ 19.5
80B33 B 33 1-3/16″ 3-1/4″ 4-3/4″ 2″ 19.6
80B34 B 34 1-3/16″ 3-1/4″ 4-3/4″ 2″ 21.3
80B35 B 35 1-3/16″ 3-1/4″ 4-3/4″ 2″ 22.1
80B36 B 36 1-3/16″ 3-1/4″ 4-3/4″ 2″ 23.1
80B37 B 37 1-3/16″ 3-1/4″ 4-3/4″ 2″ 23.8
80B38 B 38 1-3/16″ 3-1/4″ 4-3/4″ 2″ 24.7
80B39 B 39 1-3/16″ 3-1/4″ 4-3/4″ 2″ 25.6
80B40 B 40 1-3/16″ 3-1/4″ 4-3/4″ 2″ 26.7
80B41 B 41 1-1/4″ 3-1/4″ 4-3/4″ 2″ 27.8
80B42 B 42 1-1/4″ 3-1/4″ 4-3/4″ 2” 28.7
80B43 B 43 1-1/4″ 3-1/4″ 4-3/4″ 2” 29.4
80B44 B 44 1-1/4″ 3-1/4″ 4-3/4″ 2” 29.9
80B45 B 45 1-1/4″ 3-1/4″ 4-3/4″ 2” 31.4
80B46 B 46 1-1/4″ 3-1/4″ 4-3/4″ 2” 33.1
80B47 B 47 1-1/4″ 3-1/4″ 4-3/4″ 2” 34.0
80B48 B 48 1-1/4″ 3-1/4″ 4-3/4″ 2” 35.5
80B49 B 49 1-1/4″ 3-1/4″ 4-3/4″ 2” 35.8
80B50 B 50 1-1/4″ 3-1/4″ 4-3/4″ 2” 37.3
80B51 B 51 1-1/4″ 3-1/4″ 4-3/4″ 2” 38.6
80B52 B 52 1-1/4″ 3-1/4″ 4-3/4″ 2” 39.4
80B53 B 53 1-1/4″ 3-1/4″ 4-3/4″ 2” 41.3
80B54 B 54 1-1/4″ 3-1/2″ 5-1/4″ 2” 44.7
80B55 B 55 1-1/4″ 3-1/2″ 5-1/4″ 2” 45.6
80B56 B 56 1-1/4″ 3-1/2″ 5-1/4″ 2” 47.5
80B57 B 57 1-1/4″ 3-1/2″ 5-1/4″ 2” 48.5
80B58 B 58 1-1/4″ 3-1/2″ 5-1/4″ 2” 50.5
80B59 B 59 1-1/4″ 3-1/2″ 5-1/4″ 2” 52.1
80B60 B 60 1-1/4″ 3-1/2″ 5-1/4″ 2” 54.5
80B65 B 65 1-1/4″ 3-1/2″ 5-1/4″ 2″ 61.8

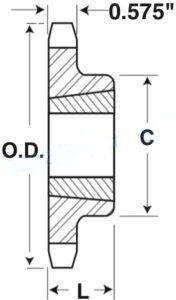

80 C-Hub Sprockets

80 Chain Sprockets

Sprocket Size Type Tooth Count Outside Diameter Stock Bore Recommend Max. Bore Hub Diameter Length Thru Bore Weight (LBS)
80C11 11 C 4.010 1” 1-5/8″ 2-29/32” 2-3/8″ 3.87
80C12 12 C 4.330 1” 1-7/8″ 3-1/8” 2-3/8″ 4.31
80C13 13 C 4.660 1” 2″ 3-1/64” 2-3/8″ 5.32
80C14 14 C 4.980 1” 2-1/4″ 3-11/32” 2-3/8″ 6.44
80C15 15 C 5.300 1” 2-1/2″ 3-13/16” 2-3/8″ 7.75
80C16 16 C 5.630 1” 2-3/4″ 4” 2-3/8″ 8.81
80C70 70 C 22.870 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 75.7
80C72 72 C 23.500 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 81.4
80C76 76 C 24.780 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 87.8
80C80 80 C 26.050 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 89.9
80C84 84 C 27.330 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 99.2
80C90 90 C 29.240 1-1/2″ 4-1/4″ 6-1/4″ 31/2″ 106.0
80C96 96 C 31.150 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 117.0
80C112 112 C 36.240 1-1/2″ 4-1/4″ 6-1/4″ 3-1/2″ 154.0

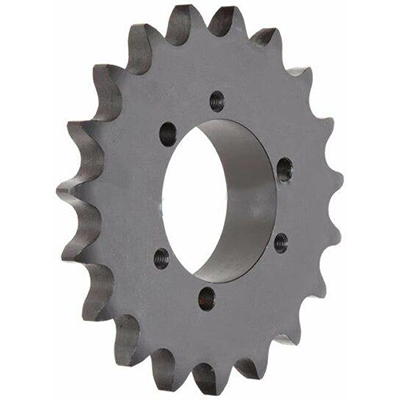

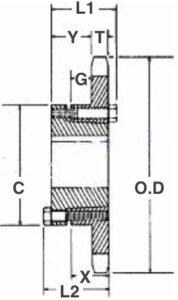

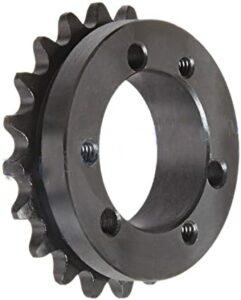

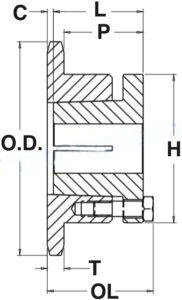

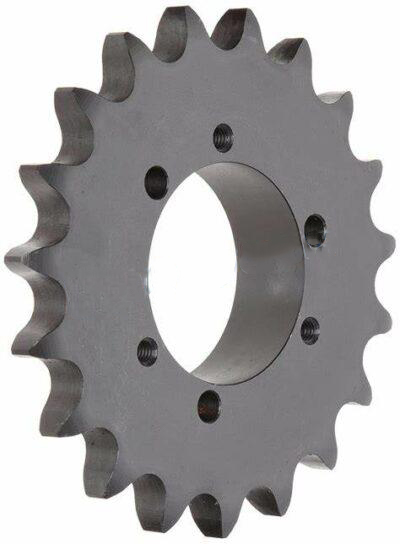

#80 QD Sprockets (80 Chain Sprockets)

80 Chain Sprockets

Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter  Type Max. Bore Dimension (L1) Dimension (L2) Dimension (C) Dimension (Y) Dimension (P) Dimension (G) Dimension (T) Weight (LBS)
80SH11 11 SH 4.010 3.550 B 1-5/8″ 1-7/16″ 1-7/16″ 2-11/16″ 21/32″ – 15/64″ 0.575 1.0
80SH12 12 SH 4.330 3.864 B 1-5/8″ 1-7/16″ 1-7/16″ 2-11/16″ 21/32″ – 15/64″ 0.575 1.4
80SDS13 13 SDS 4.660 4.179 B 2” 1-1/2″ 1-1/2″ 3-3/16″ 47/64” – 11/64″ 0.575 1.5
80SDS14 14 SDS 4.980 4.494 B 2” 1-1/2″ 1-1/2″ 3-3/16″ 47/64” – 11/64″ 0.575 1.8
80SK15 15 SK 5.300 4.810 B 2-5/8″ 2-1/8″ 2-1/8″ 3-7/8″ 1-19/64″ – 21/32″ 0.575 2.5
80SK16 16 SK 5.630 5.126 B 2-5/8″ 2-1/8″ 2-1/8″ 3-7/8″ 1-19/64″ – 21/32″ 0.575 3.1
80SK17 17 SK 5.950 5.442 B 2-5/8″ 2-1/8″ 2-1/8″ 3-7/8″ 1-19/64″ – 21/32″ 0.575 3.5
80SK18 18 SK 6.270 5.759 B 2-5/8″ 2-1/8″ 2-1/8″ 3-7/8″ 1-19/64″ – 21/32″ 0.575 3.9
80SK19 19 SK 6.590 6.076 B 2-5/8″ 2-1/8″ 2-1/8″ 3-7/8″ 1-19/64″ – 21/32″ 0.575 4.4
80SF20 20 SF 6.910 6.392 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 5.3
80SF21 21 SF 7.240 6.710 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 5.7
80SF22 22 SF 7.560 7.027 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 6.3
80SF23 23 SF 7.880 7.344 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 6.8
80SF24 24 SF 8.200 7.661 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 7.5
80SF25 25 SF 8.520 7.979 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 8.0
80SF26 26 SF 8.840 8.296 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 8.6
80SF27 27 SF 9.160 8.614 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 9.4
80SF28 28 SF 9.480 8.931 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 10.2
80SF30 30 SF 10.110 9.567 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 11.3
80SF32 32 SF 10.750 10.202 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 13.0
80SF33 33 SF 11.070 10.520 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 13.5
80SF34 34 SF 11.390 10.838 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 14.1
80SF35 35 SF 11.710 11.156 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 15.5
80SF36 36 SF 12.030 11.474 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 16.9
80SF40 40 SF 13.310 12.746 B 2-15/16″ 2-1/4″ 2 -1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 20.6
80SF42 42 SF 13.940 13.382 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 22.4
80SF45 45 SF 14.900 14.336 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 25.1
80SF48 48 SF 15.860 15.290 B 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 28.6
80SF54 54 SF 17.770 17.198 C 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 36.8
80SF60 60 SF 19.680 19.107 C 2-15/16″ 2-1/4″ 2-1/4″ 4-5/8″ 1-27/64” – 21/32″ 0.575 45.8
80E70 70 E 22.870 22.289 C 3-1/2″ 2-5/8” 2-15/16” 6” 7/8″ 1-3/16″ 1-3/64” 0.575 55.6
80E72 72 E 23.500 22.926 C 3-1/2″ 2-5/8” 2-15/16” 6” 7/8″ 1-3/16″ 1-3/64” 0.575 59.3
80E80 80 E 26.050 25.471 C 3-1/2″ 2-5/8” 2-15/16” 6” 7/8″ 1-3/16″ 1-3/64” 0.575 69.2
80E84 84 E 27.330 26.744 C 3-1/2″ 2-5/8” 2-15/16” 6” 7/8″ 1-3/16″ 1-3/64” 0.575 74.9
80E96 96 E 31.150 30.563 C 3-1/2″ 2-5/8” 2-15/16” 6” 7/8″ 1-3/16″ 1-3/64” 0.575 97.5
80F112 112 F 36.240 35.655 C 3-15/16″ 2-5/8” 2-15/16” 6-5/8” 1” 2-1/16 1-58/64″ 0.575 134.0

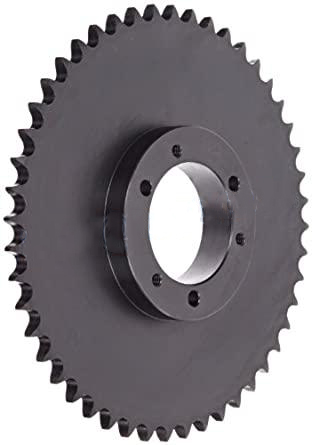

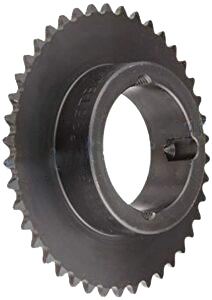

#80 Taper Bushed Sprockets (80 Chain Sprockets)

Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter Max. Bore Dimension (L) Dimension (C) Type Weight (LBS)
80BTB10 11  1215 3.678 3.236 1-1/4″ 1-1/2″ 2-3/8” B 1.1
80BTB11 11 1215 4.006 3.549 1-1/4″ 1-1/2″ 2-15/32” B 1.5
80BTB12 12 1615 4.332 3.864 1-5/8″ 1-1/2″ 3” B 1.8
80BTB13 13 1615 4.657 4.179 1-5/8″ 1-1/2″ 3” B 2.3
80BTB14 14 1615 4.982 4.494 1-5/8″ 1-1/2″ 3-11/32” B 2.5
80BTB15 15 1615 5.305 4.810 1-5/8″ 1-1/2″ 3-1/2″ B 2.7
80BTB16 16 2012 5.627 5.126 2” 1-1/4” 4” B 2.8
80BTB17 17 2012 5.950 5.442 2” 1-1/4” 4” B 3.1
80BTB18 18 2012 6.271 5.759 2” 1-1/4” 3-9/16” B 2.6
80BTB19 19 2012 6.593 6.076 2” 1-1/4” 3-9/16” B 4.1
80BTB20 20 2517 6.914 6.392 2-1/2″ 1-3/4″ 4-1/4″ B 5.5
80BTB21 21 2517 7.235 6.710 2-1/2″ 1-3/4″ 4-1/4″ B 6.0
80BTB22 22 2517 7.555 7.027 2-1/2″ 1-3/4″ 4-1/4″ B 6.5
80BTB23 23 2517 7.875 7.344 2-1/2″ 1-3/4″ 4-1/4″ B 7.0
80BTB24 24 2517 8.196 7.661 2-1/2″ 1-3/4″ 41/4″ B 7.5
80BTB25 25 2517 8.516 7.979 2-1/2″ 1-3/4″ 4-1/4″ B 8.1
80BTB26 26 2517 8.836 8.296 2-1/2″ 1-3/4″ 4-1/4″ B 8.8
80BTB27 27 2517 9.156 8.614 2-1/2″ 1-3/4″ 4-1/4″ B 9.0
80BTB28 28 2517 9.475 8.931 2-1/2″ 1-3/4″ 4-1/4″ B 9.5
80BTB30 30 2517 10.114 9.567 2-1/2″ 1-3/4″ 4-1/4″ B 11.5
80BTB32 32 2517 10.753 10.202 2-1/2″ 1-3/4″ 4-1/4″ B 12.0
80BTB35 35 2517 11.711 11.156 2-1/2″ 1-3/4″ 4-1/4″ B 15.2
80BTB36 36 2517 12.030 11.474 2-1/2″ 1-3/4″ 4-1/4″ B 17.0
80BTB40 40 2517 13.306 12.746 2-1/2″ 1-3/4″ 4-1/4″ B 21.0
80BTB45 45 2517 14.901 14.336 2-1/2″ 1-3/4″ 4-1/4″ B 26.5
80BTB48 48 2517 15.857 15.290 2-1/2″ 1-3/4″ 4-1/4″ B 29.5
80BTB54 54 2517 17.769 17.198 2-1/2″ 1-3/4″ 4-1/4″ B 38.5
80BTB60 60 2517 19.681 19.107 2-1/2″ 1-3/4″ 4-1/4″ B 45.0
80BTB70 70 3020 22.867 22.289 3” 2” 5-1/4” B 52.3
80BTB80 80 3020 26.052 25.471 2-1/2 2” 4-1/4 B 69.2

#80 Taper Bushed Sprockets

Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter  Type Max. Bore Dimension (OL) Dimension (L) Dimension (C) Dimension (H) Dimension (P) Dimension (T) Weight (LBS)
80H10H 10 H 3.680 3.236 3 1-1/2” 2-3/32” 1-7/16″ 21/32” 2-1/2” 1-21/64” 0.575 2.0
80H11H 11 H 4.010 3.550 3 1-1/2” 1-1/2” 1-1/4” 1/16” 2-1/2” 3/4” 0.575 1.3
80P11H 11 P 4.010 3.550 4 1-3/4” 2-11/32 1-15/16” 5/32” 3” 1-17/32” 0.575 1.6
80P12H 12 P1 4.330 3.864 4 1-3/4” 2-3/16” 1-15/16” 0 3” 1-3/8” 0.575 2.0
80P13H 13 P1 4.660 4.179 4 1-3/4” 2-3/16” 1-15/16” 0 3” 1-3/8” 0.575 2.4
80P14H 14 P1 4.980 4.494 4 1-3/4” 2-3/16” 1-15/16” 0 3” 1-3/8” 0.575 2.6
80Q14H 14 Q1 4.980 4.494 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16 0.575 2.9
80P15H 15 P1 5.300 4.810 4 1-3/4” 2-3/16” 1-15/16” 0 3 1-3/8” 0.575 3.0
80Q15H 15 Q1 5.300 4.810 4 2-11/16” 2-25/32” 1/2” 0 4-1/8” 1-15/16” 0.575 3.4
80P16H 16 P1 5.630 5.126 4 1-3/4” 2-3/16” 1-15/16” 0 3” 1-3/8” 0.575 3.5
80Q16H 16 Q1 5.630 5.126 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16 0.575 4.6
80P17H 17 P1 5.950 5.442 4 1-3/4” 2-3/16” 1-15/16” 0 3” 1-3/8” 0.575 3.8
80Q17H 17 Q1 5.950 5.442 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16 0.575 5.3
80P18H 18 P1 6.270 5.759 4 1-3/4” 2-3/16” 1-15/16” 0 3” 1-3/8” 0.575 4.4
80Q18H 18 Q1 6.270 5.759 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16 0.575 6.0
80P19H 19 P1 6.590 6.076 4 1-3/4” 2-3/16” 1-15/16” 0 3 1-3/8” 0.575 4.9
80Q19H 19 Q1 6.590 6.076 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 6.5
80Q20H 20 Q1 6.910 6.392 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 7.0
80Q21H 21 Q1 7.240 6.710 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 7.3
80Q22H 22 Q1 7.560 7.027 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 8.2
80Q23H 23 Q1 7.880 7.344 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 8.8
80Q24H 24 Q1 8.200 7.661 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 9.1
80Q25H 25 Q1 8.520 7.979 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 9.6
80Q26H 26 Q1 8.840 8.296 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 10.6
80Q27H 27 Q1 9.160 8.614 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 10.9
80Q28H 28 Q1 9.480 8.931 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 12.4
80Q29H 29 Q1 9.800 9.249 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 12.6
80Q30H 30 Q1 10.110 9.567 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 13.4
80Q31 31 Q1 10.430 9.885 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 13.9
80Q32 32 Q1 10.750 10.202 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 14.8
80Q33 33 Q1 11.070 10.520 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 15.5
80Q34 34 Q1 11.390 10.838 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 16.3
80Q35 35 Q1 11.710 11.156 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 17.8
80Q36 36 Q1 12.030 11.474 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 18.1
80R36 36 R1 13.030 11.474 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16′ 0.575 19.5
80Q37 37 Q1 12.350 11.792 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 18.5
80Q38 38 Q1 12.670 12.110 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 20.0
80R39 39 R1 12.990 12.428 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 22.8
80Q40 40 Q1 13.310 12.746 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 21.9
80R40 40 R1 13.310 12.746 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 23.4
80R41 41 R1 13.630 13.064 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 23.9
80Q42 42 Q1 13.940 13.382 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16″ 0.575 23.8
80R42 42 R1 13.940 13.382 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 25.4
80R44 44 R1 14.580 14.018 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 27.2
80Q45 45 Q1 14.900 14.336 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16 0.575 27.8
80R45 45 R1 14.900 14.336 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 28.5
80R47 47 R1 15.540 14.972 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 31.0
80Q48 48 Q1 15.860 15.290 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16” 0.575 30.8
80R48 48 R1 15.860 15.290 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 32.3
80R50 50 R1 16.500 15.926 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 35.1
80Q54 54 Q1 17.770 17.198 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16” 0.575 38.5
80R54 54 R1 17.770 17.198 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 40.8
80R56 56 R1 18.410 17.825 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 44.0
80Q60 60 Q1 19.680 19.107 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 1-15/16” 0.575 46.8
80R60 60 R1 19.680 19.107 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 47.3
80Q70 70 Q1 22.870 22.289 4 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 2-5/16” 0.575 60.0
80R70 70 R1 22.870 22.289 4 3-3/4” 3-5/32” 2-7/8” 0 5-3/8” 2-5/16” 0.575 63.5
80Q72 72 Q1 23.500 22.926 5 2-11/16” 2-25/32” 2-1/2” 0 4-1/8” 2-5/16” 0.575 67.5
80R72 72 R1 23.500 22.296 5 3-3/4” 2-5/32” 2-7/8” 1-7/16” 5-3/8” 7/8” 0.575 69.4
80R80 80 R1 26.050 25.471 5 3-3/4” 2-5/32” 2-7/8” 1-7/16” 5-3/8” 7/8” 0.575 85.0
80R84 84 R1 27.330 26.744 5 3-3/4” 2-5/32” 2-7/8” 1-7/16” 5-3/8” 7/8” 0.575 90.0
80R96 96 R1 31.150 30.563 5 3-3/4” 2-5/32” 2-7/8” 1-7/16” 5-3/8” 7/8” 0.575 110.0
80S112 112 S1 36.240 36.665 5 4-1/4” 4-3/4” 4-3/8” 2-3/4” 6-3/8” 1-1/8” 0.575 165.0

A-Plate Sprockets #80

B-Hub Sprockets #80

C-Hub Sprockets #80

 BTB Type Sprockets #80

H Type Sprockets #80

S Type Sprockets #80

P Type Sprockets #80

SH Type Sprockets #80

Q Type Sprockets #80

SDS Type Sprockets

SDS Type Sprockets #80

R Type Sprockets

R Type Sprockets 80

SK Type Sprockets

SK Type Sprockets #80

SF Type Sprockets

80 SF Type Sprockets

E Type Sprockets

#80 E Type Sprockets

F Type Sprockets

80 F Type Sprockets

Weld-On Hub Sprockets

Weld-On Hub Sprockets 80

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “80 Chain Sprockets”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

678 Series Sprockets

9250 Series Sprockets Size Only

,
80417785 Chain sprocket

Chain sprocket for New Holland Combine harvester

, ,
678 Series Sprockets

1207 series C hub Engineer Class Sprockets

, ,
80392932 sprocket

Sprocket for New Holland Combine

, ,
Feeder House Drive Sprocket

Feeder House Drive Sprocket for Case IH

, ,
698 Series Sprockets

1568 Series Sprockets for Wide Size

,
X458 sprocket

998A Sprocket Drop Forged Rivetless Chain Sprockets

,
X678A sprocket

X348 A plate Drop Forged Rivetless Chain Sprockets

,
