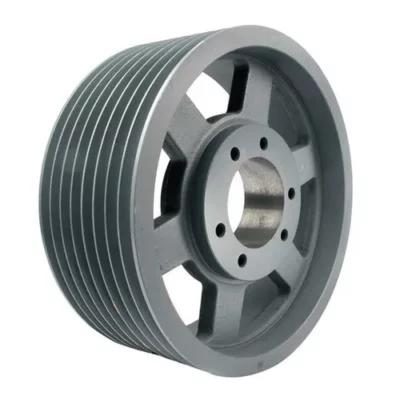

8C Series Cast Iron QD Sheaves for “C” Belts
8C series eight-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 8.40″ to 50.40″ in diameter. Depending on the sheave size, they are made to use E, F, J, or M QD (quick detachable) bushings, which we also stock. Most of our 8C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
8C Series Cast Iron QD Sheaves
8C series eight-groove Cast Iron QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 8.40″ to 50.40″ in diameter. Depending on the sheave size, they are made to use E, F, J, or M QD (quick detachable) bushings, which we also stock. Most of our 8C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

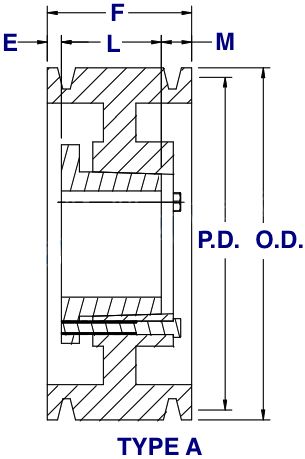

8C QD Sheave Size Chart
| Size | Bushing Type | Type | Pitch Diameter | Outside Diameter | (E) | (F) | (L) | (M) | Sheave Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 8C80E | E | A | 8.0″ | 8.40″ | 2-1/32″ | 8-1/4″ | 2-3/4″ | 3-15/32″ | 43 |
| 8C85E | E | A | 8.5″ | 8.90″ | 2-1/32″ | 8-1/4″ | 2-3/4″ | 3-15/32″ | 48 |
| 8C90F | F | A | 9.0″ | 9.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 60 |
| 8C95F | F | A | 9.5″ | 9.90″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 65 |
| 8C100F | F | A | 10.0″ | 10.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 69 |
| 8C105F | F | A | 10.5″ | 10.90″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 73 |
8C110F |
F | A | 11.0″ | 11.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 78 |
| 8C120F | F | A | 12.0″ | 12.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 83 |
| 8C130F | F | A | 13.0″ | 13.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 89 |
| 8C140F | F | A | 14.0″ | 14.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 97 |
| 8C160F | F | A | 16.0″ | 16.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 113 |
| 8C180F | F | A | 18.0″ | 18.40″ | 1-29/32″ | 8-1/4″ | 3-3/4″ | 2-19/32″ | 131 |
| 8C200J | J | A | 20.0″ | 20.40″ | 1/16″ | 8-1/4″ | 4-5/8″ | 3-9/16″ | 152 |
8C240J |
J | A | 24.0″ | 24.40″ | 1/16″ | 8-1/4″ | 4-5/8″ | 3-9/16″ | 185 |
| 8C270J | J | A | 27.0″ | 27.40″ | 1/16″ | 8-1/4″ | 4-5/8″ | 3-9/16″ | 208 |
| 8C300J | J | A | 30.0″ | 30.40″ | 1/16″ | 8-1/4″ | 4-5/8″ | 3-9/16″ | 230 |
| 8C360M | M | A | 36.0″ | 36.40″ | 9/32″ | 8-1/4″ | 6-3/4″ | 1-7/32″ | 306 |
| 8C440M | M | A | 44.0″ | 44.40″ | 9/32″ | 8-1/4″ | 6-3/4″ | 1-7/32″ | 400 |
| 8C500M | M | A | 50.0″ | 50.40″ | 9/32″ | 8-1/4″ | 6-3/4″ | 1-7/32″ | 475 |
8C Series Cast Iron QD Sheaves Product Description
This conventional QD sheave with an A/B belt section is made of 30-gray cast iron and comes with eight grooves. It is a classical V-belt sheave that fits various widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has an A/B cross-section and eight grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.
V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys, and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved.
 |
 |
V-belt Sheaves for Light and Heavy-duty Applications
They are available in 1 to 12 groove configurations to suit your drive system and are compatible with static or dynamic balancing. QD Sheaves come with detachable bushings for easier installation and maintenance to keep drive systems in shape.
- Stocked for 3V, 5V & 8V Belts
- Available in 1 to 12 Groove Configurations
- Statically Balanced with Dynamic Balancing Available
- Quick Disconnect Bushings Available for Easier Installation and Maintenance
- Made-to-Order Sheaves Available with Large Quantities Stocked on Request
- Quicker Lead Times with Direct Access to us. Manufacturing Plants

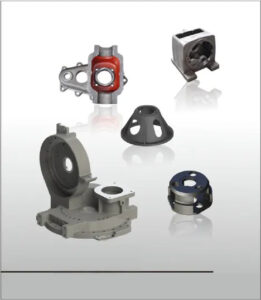

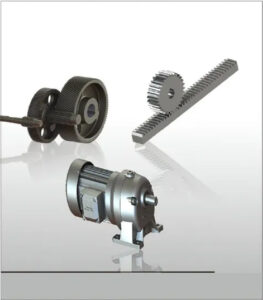

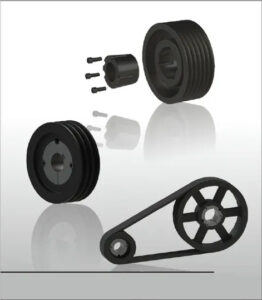

8C Series Cast Iron QD Sheaves Related Products
 |
 |
 |
 |
