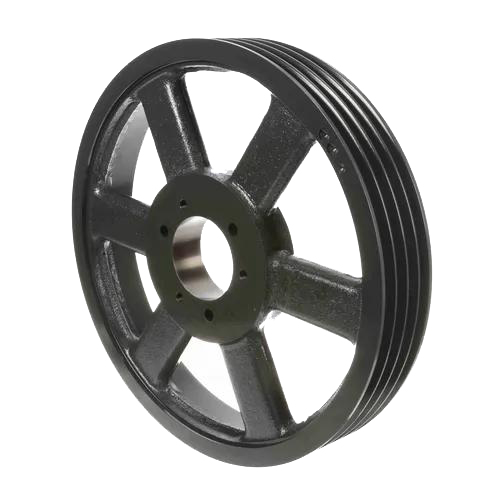

8V Series Cast Iron Four-Groove Pulley Sheaves with Split Taper Bushings
8V series four-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50″ to 53.00″ in diameter. Depending on the sheave size, they are made to use an F, J, or M QD bushing, which we also stock. Most of our four-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
8V Series Cast Iron Four-Groove QD Sheaves for “8V” Belts
8V series four-groove QD (quick detachable) bushed sheaves(8V Series Cast Iron Four-Groove Pulley) are working with 8V and 8V banded belts. They range from 12.50″ to 53.00″ in diameter. Depending on the sheave size, Making to use an F, J, or M QD bushing, which we also stock. Most of our four-groove 8V QD sheaves are making from a high-strength grade 35 cast iron are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

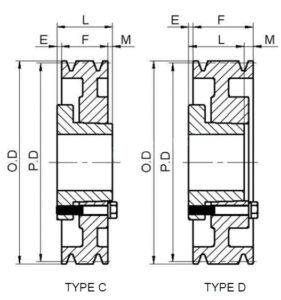

8V Series Cast Iron Four-Groove Pulley Size Chart
|
Sheave Size
|
Bushing
|
Type
|
Pitch Diameter (P.D.)
|
Outside Diameter (O.D.)
|
(E)
|
(F)
|
(L)
|
(M)
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|
| 48V1250F | F | D | 12.30 | 12.50 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 75 |
| 48V1320F | F | D | 13.00 | 13.20 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 81 |
| 48V1400F | F | D | 13.80 | 14.00 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 87 |
| 48V1500F | F | D | 14.80 | 15.00 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 91 |
| 48V1600F | F | D | 15.80 | 16.00 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 96 |
| 48V1700F | F | D | 16.80 | 17.00 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 104 |
| 48V1800F | F | D | 17.80 | 18.00 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 14 |
| 48V1900F | F | D | 18.80 | 19.00 | 5/32″ | 4-7/8″ | 3-3/4″ | 1-9/32″ | 121 |
| 48V2000J | J | D | 19.80 | 20.00 | 0″ | 4-7/8″ | 4-5/8″ | 1/4″ | 136 |
| 48V2120J | J | D | 21.00 | 21.20 | 0″ | 4-7/8″ | 4-5/8″ | 1/4″ | 145 |
| 48V2240J | J | D | 22.20 | 22.40 | 0″ | 4-7/8″ | 4-5/8″ | 1/4″ | 154 |
| 48V2480M | M | C | 24.60 | 24.80 | 25/32″ | 4-7/8″ | 6-3/4″ | 1/4″ | 176 |
| 48V3000M | M | C | 29.80 | 30.00 | 25/32″ | 4-7/8″ | 6-3/4″ | 1-3/32″ | 224 |
| 48V3550M | M | C | 35.30 | 35.50 | 25/32″ | 4-7/8″ | 6-3/4″ | 1-3/32″ | 267 |
| 48V4000M | M | C | 39.80 | 40.00 | 25/32″ | 4-7/8″ | 6-3/4″ | 1-3/32″ | 310 |
| 48V4450M | M | C | 44.30 | 44.50 | 25/32″ | 4-7/8″ | 6-3/4″ | 1-3/32″ | 363 |
| 48V5300M | M | C | 52.80 | 53.00 | 25/32″ | 4-7/8″ | 6-3/4″ | 1-3/32″ | 437 |
