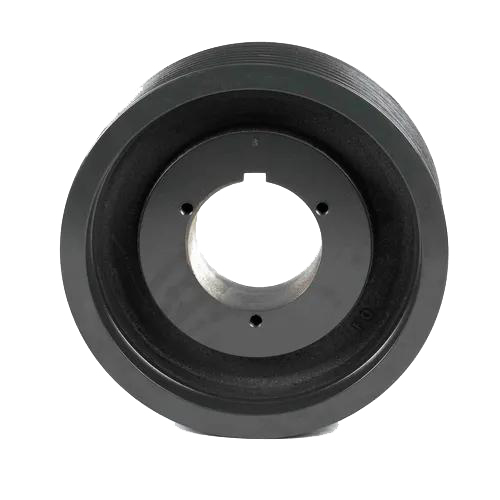

8V Series Cast Iron Fourteen-Groove Pulley Sheaves with Split Taper Bushings
8V Series Cast Iron Fourteen-Groove Pulley Sheaves are working with 8V and 8V banded v-belts. They range from 12.5″ to 64.0″ in diameter. Depending on the sheave size. Made to use U2 or W2 split-taper bushings, which we also stock. Most of our fourteen-groove 8V split taper sheaves are making from a high-strength grade 35 cast iron. With phosphate-coated, and painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
Fourteen-Groove 8V Split Taper Sheave Size Chart
Sheave Size | Bushing | Pitch Diameter (P.D.) | Outside Diameter (O.D.) | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14U8V125 | U2 | 12.3 | 12.5 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 220.0 |
14U8V132 | U2 | 13.0 | 13.2 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 261.0 |
14U8V140 | U2 | 13.8 | 14.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 300.0 |
14U8V150 | U2 | 14.8 | 15.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 370.0 |
14U8V160 | U2 | 15.8 | 16.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 415.0 |
14U8V170 | U2 | 16.8 | 17.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 440.0 |
14U8V180 | U2 | 17.8 | 18.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 450.0 |
14U8V190 | U2 | 18.8 | 19.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 470.0 |
14U8V200 | U2 | 19.8 | 20.0 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 490.0 |
14U8V212 | U2 | 21.0 | 21.2 | 15 | 16-1/8″ | 10-1/8″ | 5″ | 1″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 510.0 |
14U8V224 | U2 | 22.2 | 22.4 | 15 | 16-1/8″ | 10-1/8″ | 2-1/4″ | 3-3/4″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 459.0 |
14U8V300 | U2 | 29.8 | 30.0 | 15 | 16-1/8″ | 10-1/8″ | 2-1/4″ | 3-3/4″ | 8-3/8″ | 16-1/8″ | 1-1/2 | 8-5/8″ | 15/32″ | 710.0 |
14U8V400 | W2 | 39.8 | 40.0 | 15 | 16-1/8″ | 11-1/4″ | 1-1/2″ | 3-3/8″ | 12-1/2″ | 16-1/8″ | 1-7/8 | 9-3/8″ | 9/16″ | 840.0 |
14U8V480 | W2 | 47.8 | 48.0 | 15 | 16-1/8″ | 11-1/4″ | 1-1/2″ | 3-3/8″ | 12-1/2″ | 16-1/8″ | 1-7/8 | 9-3/8″ | 9/16″ | 1140.0 |
14U8V530 | W2 | 52.8 | 53.0 | 15 | 16-1/8″ | 11-1/4″ | 1-1/2″ | 3-3/8″ | 12-1/2″ | 16-1/8″ | 1-7/8 | 9-3/8″ | 9/16″ | 1234.0 |
14U8V580 | W2 | 57.8 | 58.0 | 15 | 16-1/8″ | 11-1/4″ | 1-1/2″ | 3-3/8″ | 12-1/2″ | 16-1/8″ | 1-7/8 | 9-3/8″ | 9/16″ | 1450.0 |
14U8V640 | W2 | 63.8 | 64.0 | 15 | 16-1/8″ | 11-1/4″ | 1-1/2″ | 3-3/8″ | 12-1/2″ | 16-1/8″ | 1-7/8 | 9-3/8″ | 9/16″ | 1550.0 |
Related Matching 8V, 8V Banded Series V-Belt
(1) 8V-Series V-Belts

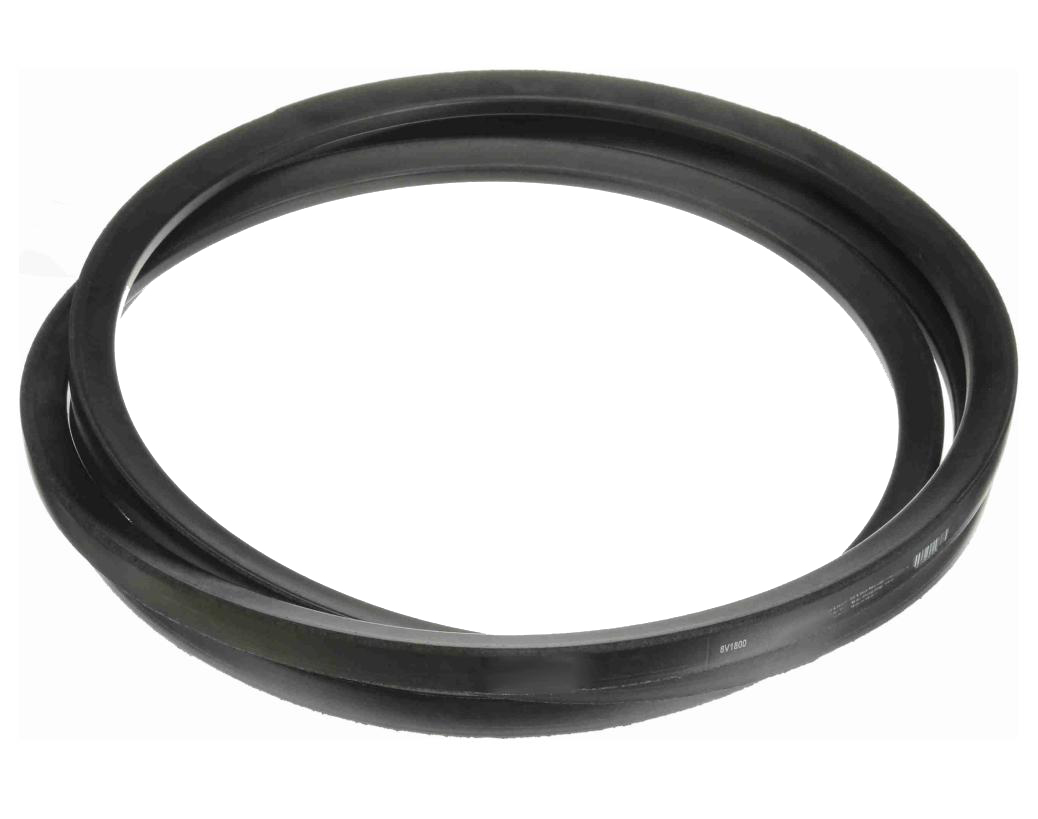

Classic 8V-Series V-Belts have a 0.63″ top-width, 0.53″ thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry’s most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.
(2) 8V-Series Banded V-Belts
8V-series v-belts are a part of the “classic” lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0″ top-width per belt (band/ rib).
