8V Series Cast Iron Sixteen-Groove Pulley Sheaves with Split Taper Bushings

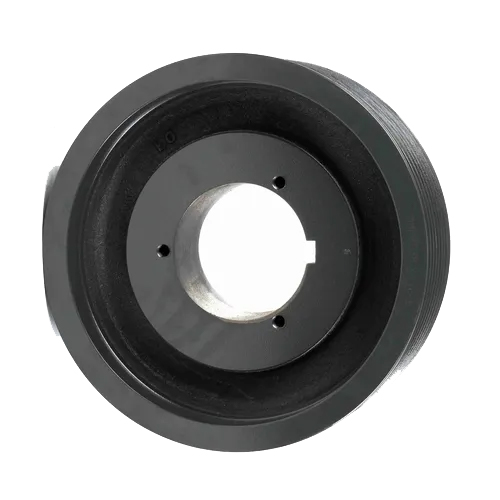

8V series sixteen-groove taper bushed sheaves(Sixteen-Groove Pulley) are working with 8V and 8V banded v-belts. They range from 12.5″ to 64.0″ in diameter. Depending on the sheave size. Made to use a U2 or W2 split-taper bushings, which we also stock. The majority of our sixteen-groove 8V split taper sheaves are making from a high-strength grade 35 cast iron, are phosphate-coated and painted for anti-corrosion, and all of them are balanced at the factory for smooth machinery operation.
Sixteen-Groove 8V Split Taper Sheave Size Chart
Sheave Size | Bushing | Pitch Diameter (P.D.) | Outside Diameter (O.D.) | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16U8V125 | U2 | 12.3 | 12.5 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 270.0 |
16U8V132 | U2 | 13.0 | 13.2 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 280.0 |
16U8V140 | U2 | 13.8 | 14.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 323.0 |
16U8V150 | U2 | 14.8 | 15.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 430.0 |
16U8V160 | U2 | 15.8 | 16.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 445.0 |
16U8V170 | U2 | 16.8 | 17.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 447.0 |
16U8V180 | U2 | 17.8 | 18.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 480.0 |
16U8V190 | U2 | 18.8 | 19.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 494.0 |
16U8V200 | U2 | 19.8 | 20.0 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 520.0 |
16U8V212 | U2 | 21.0 | 21.2 | 15 | 18-3/8″ | 10–1/8″ | 7-1/4″ | 1″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 538.0 |
16U8V224 | U2 | 22.2 | 22.4 | 15 | 18-3/8″ | 10–1/8″ | 3-3/8″ | 4-7/8″ | 8-3/8″ | 18-3/8″ | 1-1/2″ | 8-5/8″ | 15/32″ | 522.0 |
16W8V300 | W2 | 29.8 | 30.0 | 15 | 18-3/8″ | 11-1/4″ | 2-5/8″ | 4-1/2″ | 12-1/2″ | 18-3/8″ | 1-7/8″ | 9-3/8″ | 9/16″ | 99.0 |
16W8V400 | W2 | 39.8 | 40.0 | 15 | 18-3/8″ | 11-1/4″ | 2-5/8″ | 4-1/2″ | 12-1/2″ | 18-3/8″ | 1-7/8″ | 9-3/8″ | 9/16″ | 871.0 |
16W8V480 | W2 | 47.8 | 48.0 | 15 | 18-3/8″ | 11-1/4″ | 2-5/8″ | 4-1/2″ | 12-1/2″ | 18-3/8″ | 1-7/8″ | 9-3/8″ | 9/16″ | 1360.0 |
16W8V530 | W2 | 52.8 | 53.0 | 15 | 18-3/8″ | 11-1/4″ | 2-5/8″ | 4-1/2″ | 12-1/2″ | 18-3/8″ | 1-7/8″ | 9-3/8″ | 9/16″ | 1490.0 |
16W8V580 | W2 | 57.8 | 58.0 | 15 | 18-3/8″ | 11-1/4″ | 2-5/8″ | 4-1/2″ | 12-1/2″ | 18-3/8″ | 1-7/8″ | 9-3/8″ | 9/16″ | 1620.0 |
16W8V640 | W2 | 63.8 | 64.0 | 15 | 18-3/8″ | 11-1/4″ | 2-5/8″ | 4-1/2″ | 12-1/2″ | 18-3/8″ | 1-7/8″ | 9-3/8″ | 9/16″ | 1790.0 |
