8V Series Cast Iron Ten-Groove Pulley Sheaves with Split Taper Bushings
8V series ten-groove taper bushed sheaves are manufactured for 8V and 8V banded v-belts. They range from 12.5″ to 64.0″ in diameter. Depending on the sheave size, they are made to use U1 or W1 split-taper bushings, which we also stock. Most of our ten-groove 8V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
Ten-Groove 8V Split Taper Sheave Size Chart
Sheave Size | Bushing | Pitch Diameter (P.D.) | Outside Diameter (O.D.) | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10U8V125 | U1 | 12.3 | 12.5 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 156.0 |
10U8V132 | U1 | 13.0 | 13.2 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 182.0 |
10U8V140 | U1 | 13.8 | 14.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 207.0 |
10U8V150 | U1 | 14.8 | 15.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 240.0 |
10U8V160 | U1 | 15.8 | 16.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 283.0 |
10U8V170 | U1 | 16.8 | 17.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 274.0 |
10U8V180 | U1 | 17.8 | 18.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 282.0 |
10U8V190 | U1 | 18.8 | 19.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 264.0 |
10U8V200 | U1 | 19.8 | 20.0 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 279.0 |
10U8V212 | U1 | 21.0 | 21.2 | 15 | 11-5/8″ | 7-1/8″ | 3-1/2″ | 1″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 296.0 |
10U8V224 | U1 | 22.2 | 22.4 | 15 | 11-5/8″ | 7-1/8″ | 1-1/2″ | 3″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 309.0 |
10U8V300 | U1 | 29.8 | 30.0 | 15 | 11-5/8″ | 7-1/8″ | 1-1/2″ | 3″ | 8-3/8″ | 11-5/8″ | 1-1/2″ | 5-5/8″ | 15/32″ | 410.0 |
10U8V400 | W1 | 39.8 | 40.0 | 15 | 11-5/8″ | 8-1/4″ | 3/4″ | 2-5/8″ | 12-1/2″ | 11-5/8″ | 1-7/8″ | 6-3/8″ | 9/16″ | 625.0 |
10U8V480 | W1 | 47.8 | 48.0 | 15 | 11-5/8″ | 8-1/4″ | 3/4″ | 2-5/8″ | 12-1/2″ | 11-5/8″ | 1-7/8″ | 6-3/8″ | 9/16″ | 811.0 |
10U8V530 | W1 | 52.8 | 53.0 | 15 | 11-5/8″ | 8-1/4″ | 3/4″ | 2-5/8″ | 12-1/2″ | 11-5/8″ | 1-7/8″ | 6-3/8″ | 9/16″ | 955.0 |
10U8V580 | W1 | 57.8 | 58.0 | 15 | 11-5/8″ | 8-1/4″ | 3/4″ | 2-5/8″ | 12-1/2″ | 11-5/8″ | 1-7/8″ | 6-3/8″ | 9/16″ | 1060.0 |
10U8V640 | W1 | 63.8 | 64.0 | 15 | 11-5/8″ | 8-1/4″ | 3/4″ | 2-5/8″ | 12-1/2″ | 11-5/8″ | 1-7/8″ | 6-3/8″ | 9/16″ | 1170.0 |
Related Matching 8V, 8V Banded Series V-Belt
(1) 8V-Series V-Belts
Classic 8V-Series V-Belts have a 0.63″ top-width, 0.53″ thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry’s most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.
(2) 8V-Series Banded V-Belts
8V-series v-belts are a part of the “classic” lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0″ top-width per belt (band/ rib).
Related Split Taper Bushings
Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375″ up to 7.438″. For additional information or to get a quote on our high-strength split taper bushings, please contact our customer support team, and we will be happy to assist you.
The Working Principle and Characteristics of the Pulley
The working principle of the pulley is that a belt connects the driving pulley and the driven pulley, and the power is driven by the friction force generated by the friction between the pulley and the belt. The pulley drive runs smoothly, with low noise, slight vibration, a simple structure, and convenient maintenance. The disadvantage is that it is difficult to install, prone to slippage after prolonged use, and the transmission efficiency cannot be guaranteed.
The taper bush pulley is a new type widely used in Europe and the United States. It consists of two parts. A tapered sleeve is connected between the pulley and the installation shaft, and then it is locked with an Allen wrench to fix the screw, and it can be used. This kind of pulley solves the problem of complex installation of traditional pulleys. It does not need external force as before. Pullers, hammers, and other items only need an Allen wrench to complete the installation. After installation and use, even if the pulley is worn and slipping, It does not need to replace the entire pulley simultaneously. It only needs to replace one installation taper sleeve to continue to use, which can significantly reduce the use cost.

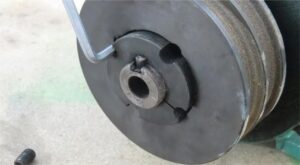

How to Remove the Taper Bushed Pulley?
Because the pulley is a transmission component often used in the manufacturing industry, there are European, American, and national standards. Because of its unique physical structure, the taper bushed pulley is easy to install and disassemble. It can play an excellent auxiliary role in maintaining enterprise equipment and improving production capacity. How to remove the taper bushed pulley?
It is straightforward to remove the taper bushed pulley, and all the prepared tools are relatively simple, a hex wrench corresponding to the screw type, a plastic or wooden hammer, and some lubricant. I believe that manufacturing companies usually provide these three things.
1. Remove the screws from the mounting holes.
2. Take the disassembled screw and lock it on the opposite side of the clamping seam. If you find that it cannot be tightened when it is closed, you need to take it out and add a bit of lubricating oil or use the prepared rubber hammer to tap it to disengage gently.
3. At this time, the pulley and the taper sleeve have been separated; just push the pulley forward a little, and then use a screwdriver to twist the clamping seam to loosen the opening of the clamping seam, and take out the key inside, so that the taper sleeve can be easily Remove, and finally remove the pulley to complete the removal of the taper bushed pulley.
Applications of 8V Series Sheaves
The pulley application is generally used for long-distance power transmission, so it is widely used, such as the power output of small diesel engines, such as tractors, automobiles, etc. It is also suitable for mechanical transmissions, such as machining equipment, textile machinery, lathes, forging presses, etc. The application range is so broad, and the characteristics are also evident. The pulley drive has an overload protection function; the center distance between the two shafts of the pulley drive has an extensive adjustment range.
Technological Processing
Company Profile
Power-trans is a professional manufacturer of mechanical parts. Our main products are v belt pulleys, sprockets, split taper bushings, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.
Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.
Our factory adheres to the enterprise concept of “quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development.” We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
