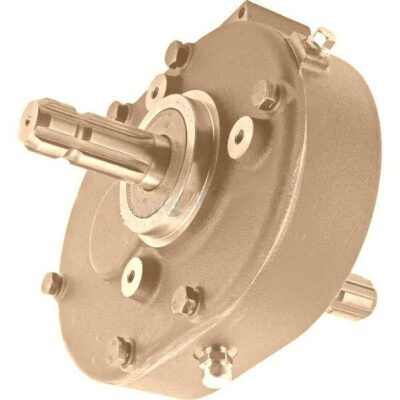

Parallel Gearboxes – Replacement of Comer Code A-3A 5:1
Description | Parallel Gearboxes – Replacement of Comer Code A-3A 5:1 |
---|---|
Application |
|
Consists of |
|
Technical information |
|
Contains oil | No |
Max. oil capacity | 0.6 l |
Max. oil change interval | 500 h |
Oil SAE viscosity grade | 80W-90 |
Housing material | Cast iron GG25 |
Weight | 18 kg |
Gear arrangement Increasing | 41 – 42 |
Gear arrangement Reducing | 51 – 52 |
Input power kW / HP Increasing | 22.1 / 30 kW/HP |
Input shaft Increasing | Y |
Input shaft Reducing | X |
Input power KW / HP Reducing | 8.1 / 11 kW/HP |
Output Torque DaNm Increasing | 7.5 daNm |
Ratio Increasing | 1 : 5 |
Ratio Reducing | 5 : 1 |
Shaft X | 28 (H) |
Shaft Y | 1 3/8″ (6) (A) |
