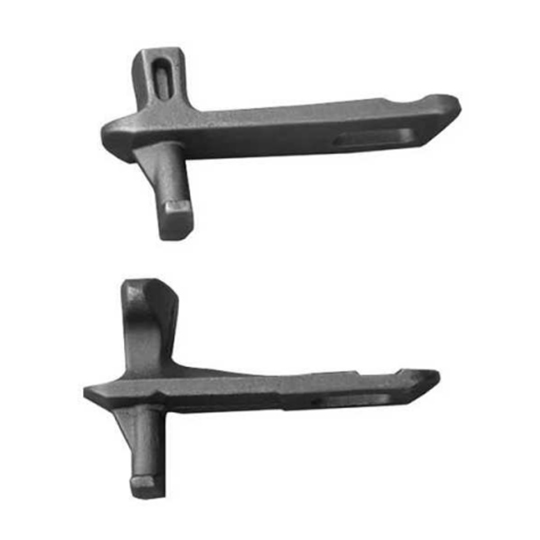

A B series X678 Pusher dog works with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

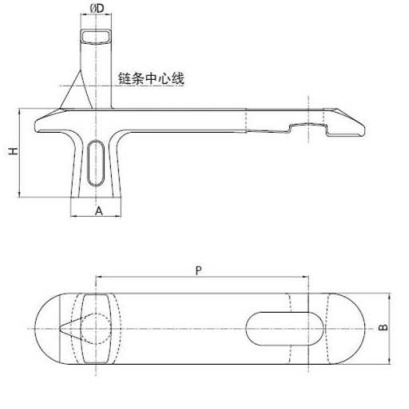

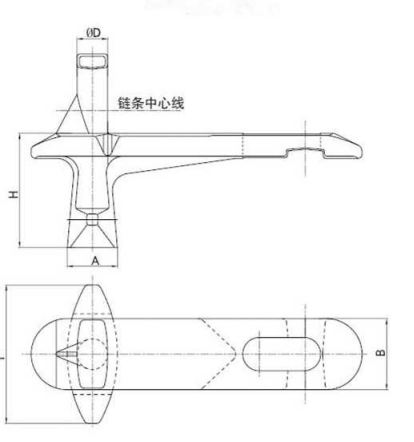

A B series X678 Pusher dog Diameter Data
Chain No. | (mm) | (KG) | (KG) | (KG) | |||||
P | H | A | B | D | F | ||||
X678-A | 153.2 | 64 | 36 | 51 | 22 | / | 1.65 | 2700 | 3800 |
X678-B | 153.2 | 82 | 36 | 51 | 22 | 100 | 2.3 | 2700 | 3800 |
