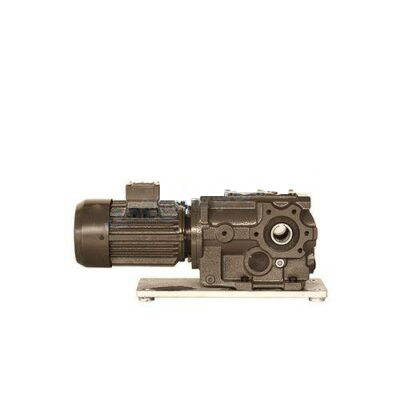

A series bevel worm special reducer Advantage:
A series bevel worm special reducer
1. High modular design
2. High load support, stable transmission, and low noise.
3. Good sealing, wide range of industry applications.
4. High efficiency and power saving.
5. Cost saving and low maintenance.
Main application:
1. Ports and Shipping
2. Lifting and transporting
3. Electricity
4. Coal mining
5. Cement and Construction
6. Paper and Light Industry
7. Chemical and environmental protection, etc.
Technical Data:
Housing material | Cast iron/Ductile iron |
Housing hardness | HBS190-240 |
Gear material | 20CrMnTi alloy steel |
Surface hardness of gears | HRC58°~62 ° |
Gear core hardness | HRC33~40 |
Input / Output shaft material | 42CrMo alloy steel |
Input / Output shaft hardness | HRC25~30 |
Machining precision of gears | Accurate grinding, 6~5 Grade |
Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
Heat treatment | Tempering, cementing, quenching, etc. |
Efficiency | 94%~96% (depends on the transmission stage) |
Noise (MAX) | 60~68dB |
Temp. Rise (MAX) | 40°C |
Temp. Rise (Oil)(MAX) | 50°C |
Vibration | ≤20µm |
Backlash | ≤20Arcmin |
Size | Solid Shaft Dia.
(mm) |
Hollow Shaft Dia.
(mm) |
Center Height
(mm) |
Output Flange Dia.
(mm) |
Power
(kw) |
Ratio | Permissible Torque
(n.m) |
Weight
(kgs) |
37 | φ25k6 | φ30h7 | 100 | φ110/160 | 0.18-3.0 | 5.36-106.38 | 200 | 11 |
47 | φ30k6 | φ35h7 | 112 | φ120/200 | 0.18-3.0 | 5.81-131.87 | 400 | 20 |
57 | φ35k6 | φ40h7 | 132 | φ155/250 | 0.18-5.5 | 6.57-145.14 | 600 | 27 |
67 | φ40k6 | φ40h7 | 140 | φ155/250 | 0.18-5.5 | 7.14-144.79 | 820 | 33 |
77 | φ50k6 | φ50h7 | 180 | φ170/300 | 0.37-11.0 | 7.24-292.18 | 1550 | 57 |
87 | φ60m6 | φ60h7 | 212 | φ215/350 | 0.75-22.0 | 7.19-197.18 | 2700 | 85 |
97 | φ70m6 | φ70h7 | 265 | φ260/450 | 1.1-30.0 | 8.95-176.05 | 4300 | 130 |
107 | φ90m6 | φ90h7 | 315 | φ304/450 | 3.0-45.0 | 8.74-141.46 | 8000 | 250 |
127 | φ110m6 | φ100h7 | 375 | φ350/550 | 7.5-90.0 | 8.68-146.07 | 13000 | 380 |
157 | φ120m6 | φ120m6 | 450 | φ400/660 | 11.0-160.0 | 12.65-150.41 | 18000 | 610 |
167 | φ160m6 | φ160m6 | 500 | φ800 | 11.0-200.0 | 17.28-163.91 | 32000 | 1015 |
187 | φ190m6 | φ190m6 | 600 | φ800 | 18.5-200.0 | 17.27-180.78 | 50000 | 1700 |
