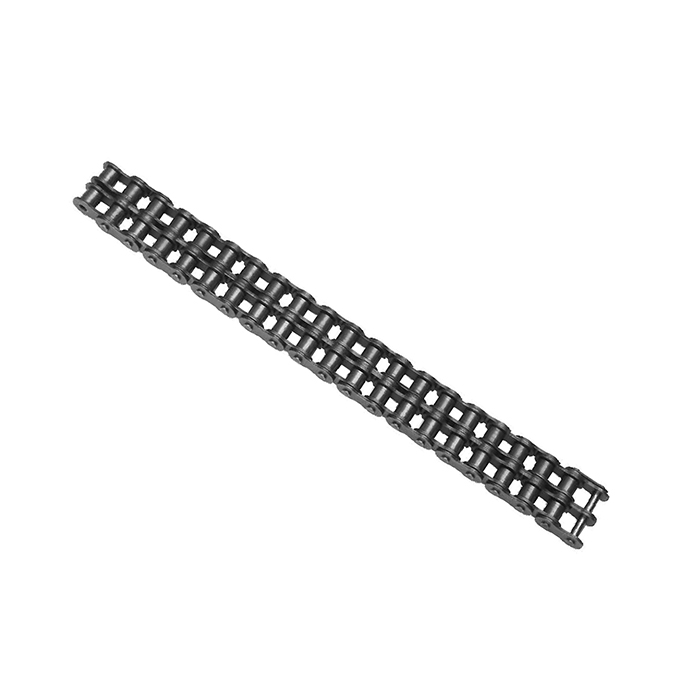

A series double strand short pitch roller chains
- All chain plates are manufactured using processes such as fine blanking and ball-drifting, so a particularly high contact ratio is guaranteed
- Solid, case hardened rollers with good wear resistance
- Pins are smooth and have an extra hard surface for increased wear resistance
- Corrosion-resistant versions supplied on request
- Sprockets available on request
A series double strand short pitch roller chains
Double pitch chains are based on the single pitch chains constructed according to ISO 606. Except for the pitch, they meet the same standard specifications with respect to their dimensions. As opposed to short pitch chains constructed to standard ISO 606, these chains are intended for use in conditions in which demands on speed and power transmission are lower.
The principle difference being that the plates of double pitch roller chains – as the name implies – are twice the length of the plates fitted to standard roller chains.

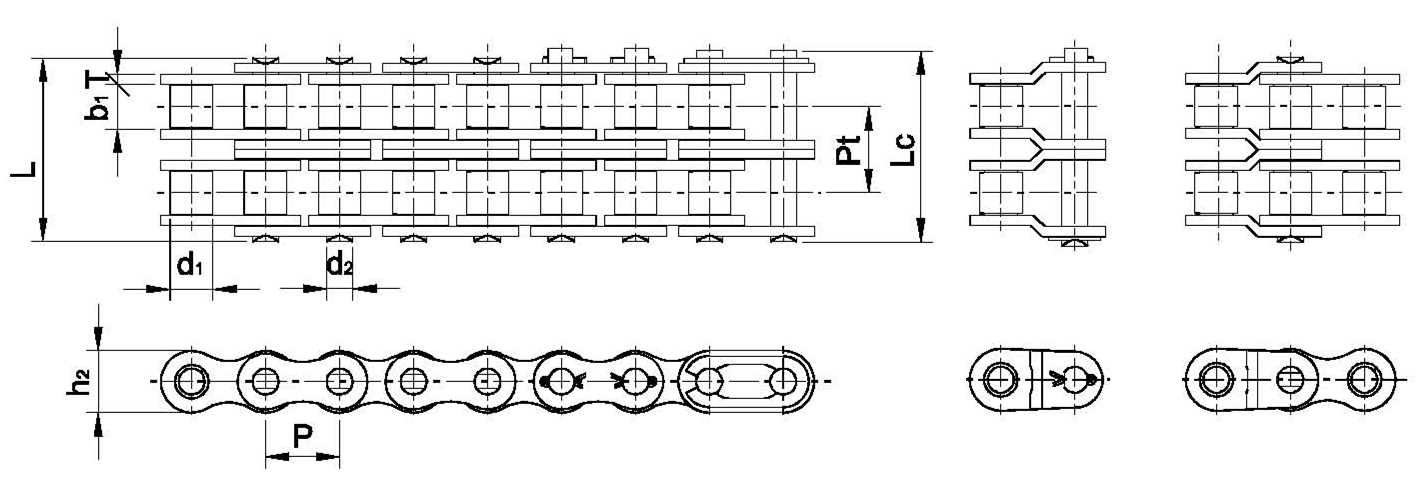

Dimensional parameters
| DIN ISO CHAIN NO. | ANSI CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ROW SPACING | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | PT | Q MIN | Q0 | Q | ||
| MM | MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | ||
| *04C-2 | *25-2 | 6.35 | 3.3 | 3.18 | 2.31 | 14.5 | 15.15 | 5.9 | 6.4 | 7 | 8.3 | 0.28 |
| *06C-2 | *35-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.5 | 23.4 | 8.95 | 10.13 | 15.8 | 19.1 | 0.63 |
| 08A-2 | 40-2 | 12.7 | 7.95 | 7.85 | 3.96 | 31.1 | 32.25 | 11.9 | 14.38 | 28.2 | 33.7 | 1.12 |
| 10A-2 | 50-2 | 15.875 | 10.16 | 9.4 | 5.08 | 39 | 40.3 | 15 | 18.11 | 44.4 | 55.3 | 2 |
| 12A-2 | 60-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.3 | 18 | 22.78 | 63.6 | 83.2 | 2.92 |
| 16A-2 | 80-2 | 25.4 | 15.88 | 15.75 | 7.92 | 61.9 | 64.2 | 24.1 | 29.29 | 113.4 | 140 | 5.15 |
| 20A-2 | 100-2 | 31.75 | 19.05 | 18.9 | 9.53 | 76.2 | 80.5 | 30.1 | 35.76 | 177 | 202.8 | 7.8 |
| 24A-2 | 120-2 | 38.1 | 22.23 | 25.22 | 11.1 | 95.4 | 99.7 | 36 | 45.44 | 254 | 291.4 | 11.7 |
| 28A-2 | 140-2 | 44.45 | 25.4 | 25.22 | 12.7 | 103.1 | 107.9 | 42 | 48.87 | 344.8 | 295.7 | 15.14 |
| 32A-2 | 160-2 | 50.8 | 28.58 | 31.55 | 14.27 | 122.9 | 128.1 | 48 | 58.55 | 453.6 | 520.5 | 20.14 |
| 36A-2 | 180-2 | 57.15 | 35.71 | 35.48 | 17.46 | 138.6 | 144.4 | 53.6 | 65.84 | 560.5 | 655.7 | 29.22 |
| 40A-2 | 200-2 | 63.5 | 39.68 | 37.85 | 19.85 | 151.9 | 158.8 | 60 | 71.55 | 707.6 | 748.8 | 32.24 |
| 48A-2 | 240-2 | 76.2 | 47.63 | 47.35 | 23.81 | 183.4 | 190.8 | 72.39 | 87.83 | 1020.6 | 1170.6 | 45.23 |
