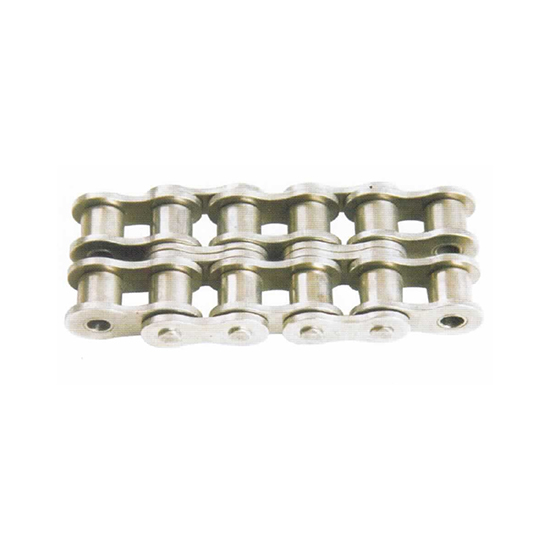

A series double strand stainless steel short pitch precision roller chains
A series double strand stainless steel short pitch precision roller chains
Our series of double-strand stainless steel short pitch precision roller chains offers exceptional performance and durability. Designed for high-precision applications, these chains are ideal for environments where corrosion resistance and long-lasting reliability are crucial.
Key features include:
- Double-Strand Design: Provides increased load-carrying capacity and enhanced strength.
- Short Pitch: Ensures smooth and precise operation, reducing vibration and noise.
- Stainless Steel Construction: Offers superior resistance to corrosion and wear, making it suitable for harsh environments and demanding applications.

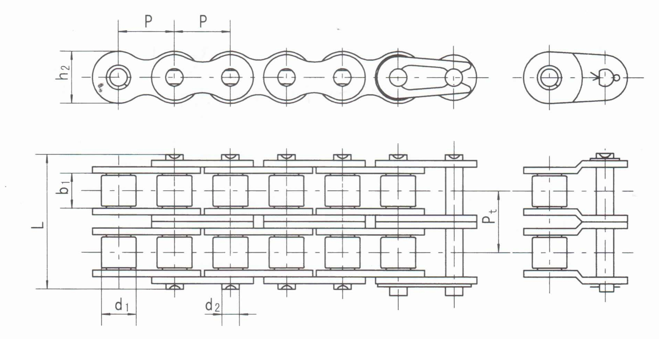

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner
plate depth |
Transv
erse pitch |
Ultimate tensile strength | Average tensile strength | Weight
Per meter |
||
| Chain | P | dia | length | |||||||
| No. | mm | d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Pt
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| *25SS-2 | 6.35 | 3.3 | 3.18 | 2.31 | 14.5 | 6 | 6.4 | 4.2 | 4.78 | 0.28 |
| *35SS-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.5 | 9 | 10.13 | 9.8 | 10.6 | 0.63 |
| 41SS-2 | 12.7 | 7.77 | 6.25 | 3.58 | 25.7 | 9.8 | 11.95 | 8 | 11 | 0.81 |
| 40SS-2 | 12.7 | 7.95 | 7.85 | 3.96 | 31 | 12 | 14.38 | 19.6 | 21.2 | 1.12 |
| 50SS-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.5 | 15 | 18.11 | 28.4 | 32.04 | 2.00 |
| 60SS-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.1 | 18 | 22.78 | 45.6 | 48.07 | 2.92 |
| 80SS-2 | 25.4 | 15.88 | 15.75 | 7.92 | 62 | 24 | 29.29 | 70 | 86.5 | 5.15 |
| 100SS-2 | 31.75 | 19.05 | 18.9 | 9.53 | 76.4 | 30.18 | 35.76 | 106.2 | 123.4 | 7.80 |
| 120SS-2 | 38.1 | 22.23 | 25.22 | 11.1 | 95.8 | 35.7 | 45.44 | 152.4 | 180.3 | 11.7 |
*Bushing chain: d1 in the table indicate the external diameter of the bushing.
