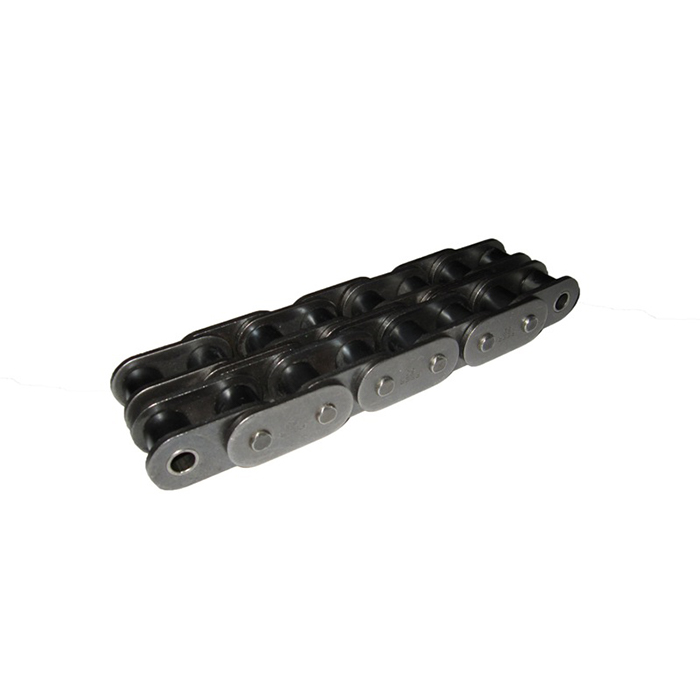

A series roller chains with straight side plates

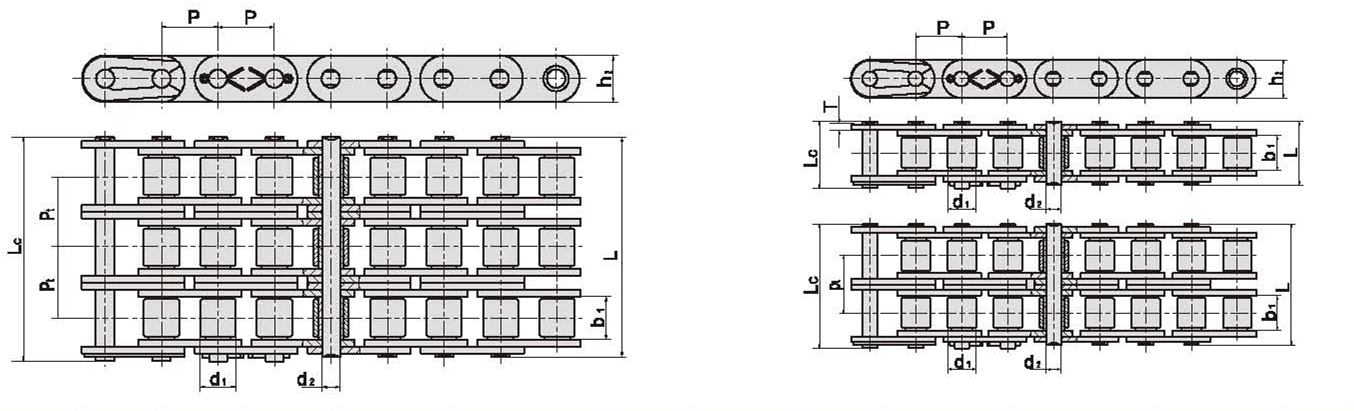

Dimensional parameters
C20A-2 | C100-2 | 31.75 | 19.05 | 18.90 | 9.53 | 76.4 | 80.5 | 30.0 | 35.76 | 177.0 | 202.7 | 9.08 |
C24A-2 | C120-2 | 38.1 | 22.23 | 25.22 | 11.10 | 95.8 | 99.7 | 35.7 | 45.44 | 254.0 | 291.4 | 13.60 |
C28A-2 | C140-2 | 44.45 | 25.40 | 25.22 | 12.70 | 103.3 | 107.9 | 41.0 | 48.87 | 344.8 | 395.5 | 16.86 |
C32A-2 | C160-2 | 50.8 | 28.58 | 31.55 | 14.27 | 123.3 | 128.1 | 47.8 | 58.55 | 453.6 | 520.5 | 22.90 |
C08A-3 | C40-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.4 | 47.6 | 12.0 | 14.38 | 42.3 | 50.2 | 2.14 |
C10A-3 | C50-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.0 | 59.5 | 15.09 | 18.1 | 66.6 | 77.7 | 3.62 |
C12A-3 | C60-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 73.9 | 18.0 | 22.78 | 195.4 | 111.1 | 5.28 |
C16A-3 | C80-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.7 | 95.1 | 24.0 | 29.29 | 170.1 | 198.4 | 9.10 |
C20A-3 | C100-3 | 31.75 | 19.05 | 18.90 | 19.53 | 112.2 | 116.3 | 30.0 | 35.76 | 265.5 | 309.7 | 13.60 |
C24A-3 | C120-3 | 38.1 | 22.23 | 25.22 | 11.10 | 141.4 | 145.2 | 35.7 | 45.44 | 381.0 | 437.2 | 20.43 |
C28A-3 | C140-3 | 44.45 | 25.40 | 25.22 | 12.70 | 152.2 | 156.8 | 41.0 | 48.87 | 517.2 | 593.4 | 25.23 |
C32A-3 | C160-3 | 50.8 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.8 | 58.55 | 680.4 | 780.6 | 34.19 |
