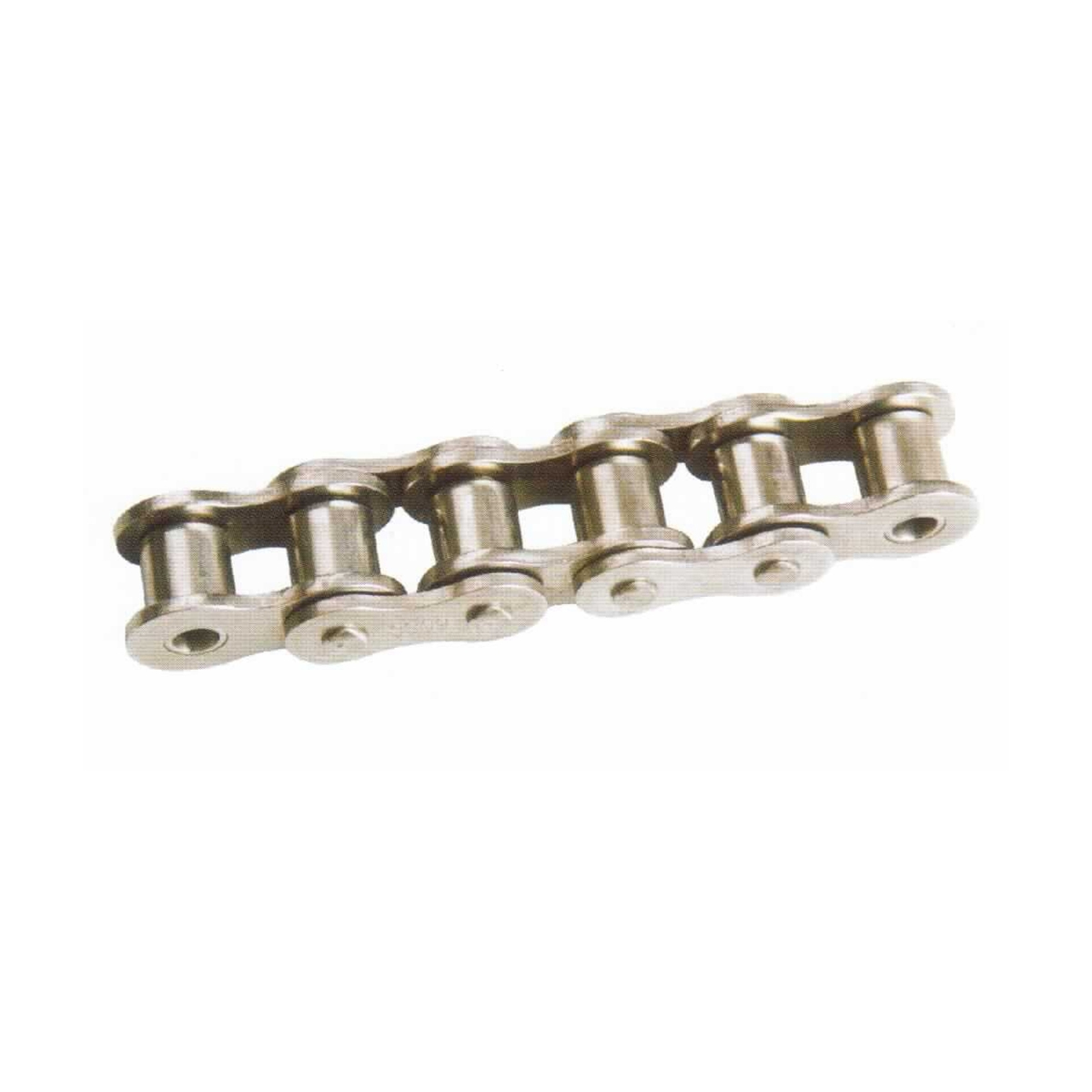

A series single strand stainless steel short pitch precision roller chains
A series single strand stainless steel short pitch precision roller chains

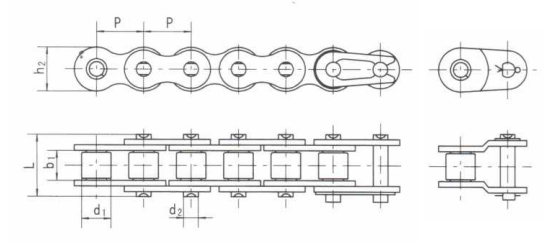

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner plate depth | Ultimate
tensile strength |
Average
tensile strength |
Weight Per meter | ||
| Chain | P | dia | length | ||||||
| No. | mm | d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| *25SS-1 | 6.35 | 3.3 | 3.18 | 2.31 | 7.9 | 6 | 2.34 | 2.52 | 0.15 |
| *35SS-1 | 9.525 | 5.08 | 4.77 | 3.58 | 12 | 9 | 5.4 | 7.5 | 0.33 |
| 41SS-1 | 12.7 | 7.77 | 6.25 | 3.58 | 13.7 | 9.8 | 4.7 | 6.8 | 0.41 |
| 40SS-1 | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.62 |
| 50SS-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 1.02 |
| 60SS-1 | 19.05 | 11.91 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.50 |
| 80SS-1 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 2.60 |
| 100SS-1 | 31.75 | 19.05 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 3.91 |
| 120SS-1 | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 5.62 |
* Bushing chain: d1 in the table indicate the external diameter of the bushing.
