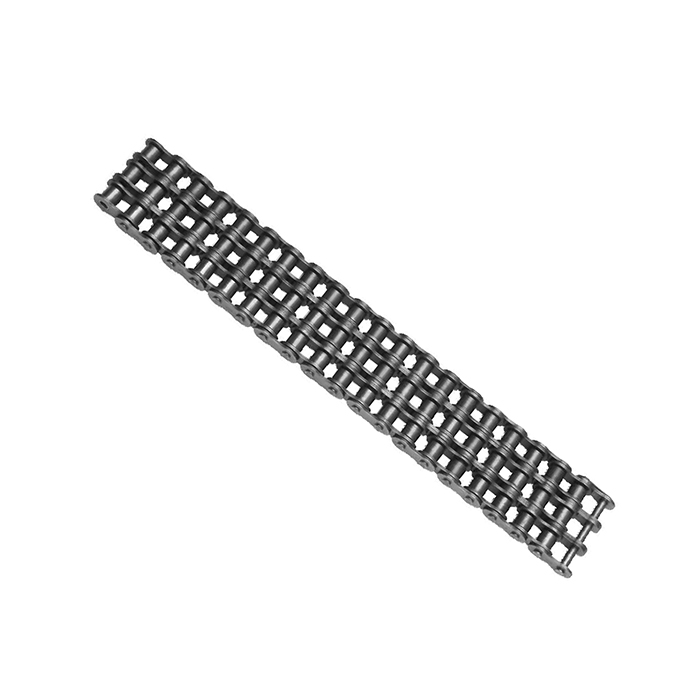

A series triple strand short pitch roller chains
Triple roller chain is commonly found in mining, agricultural, drive, and heavy-duty equipment applications. Offering ANSI, Metric BS series metric chain, and API Oilfield our chains are found in American and European applications. What separates our chain versus other brands are the various manufacturing technologies and techniques that go into our chains.
Besides the chain, we supply triple sprockets, roller links, triple connecting links, and triple offset links.

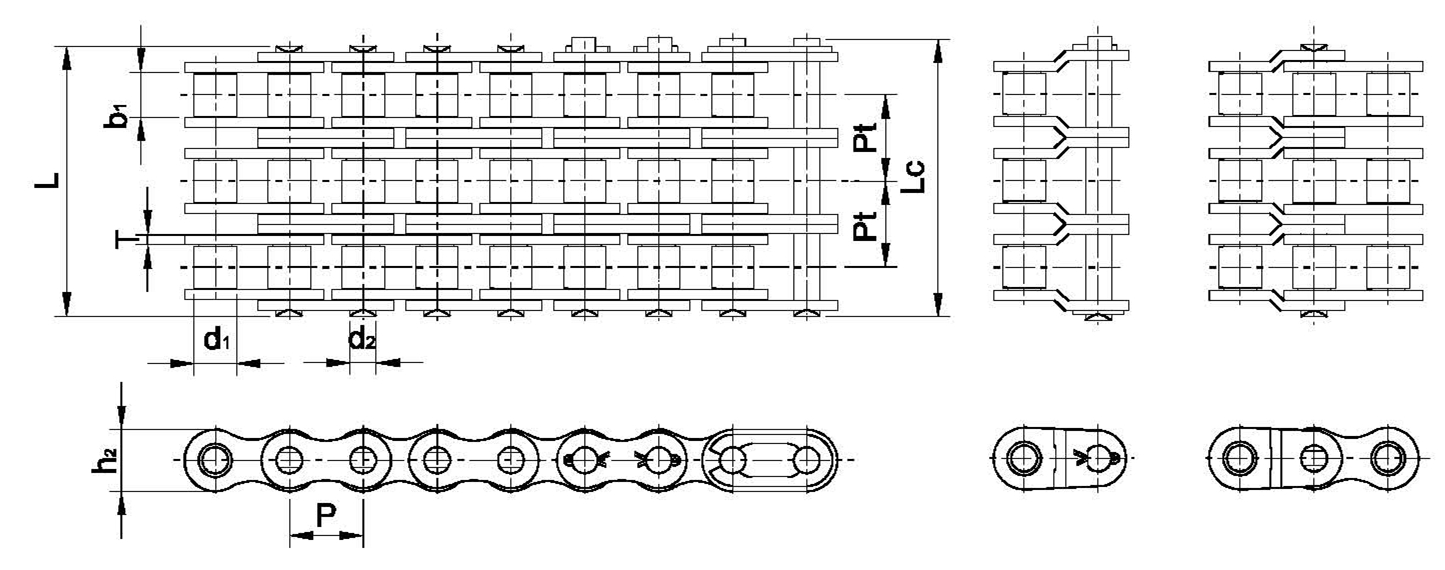

Dimensional parameters
DIN ISO CHAIN NO. | ANSI CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ROW SPACING | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | PT | Q MIN | Q0 | Q | ||
MM | MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | ||
*06C-3 | *35-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.8 | 33.7 | 8.9 | 10.13 | 23.7 | 28.7 | 1.05 |
08A-3 | 40-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.6 | 47 | 11.9 | 14.38 | 42.3 | 50.1 | 1.9 |
10A-3 | 50-3 | 15.875 | 10.16 | 9.4 | 5.08 | 57.4 | 59.1 | 15 | 18.11 | 66.6 | 77.8 | 3.09 |
12A-3 | 60-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 73.2 | 18 | 22.78 | 95.4 | 111.1 | 4.54 |
16A-3 | 80-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.6 | 93.3 | 24.1 | 29.29 | 170.1 | 198.4 | 7.89 |
20A-3 | 100-3 | 31.75 | 19.05 | 18.9 | 9.53 | 111.6 | 116.3 | 30 | 35.76 | 265.5 | 309.5 | 11.77 |
24A-3 | 120-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141 | 145.2 | 36 | 45.44 | 381 | 437.2 | 17.53 |
28A-3 | 140-3 | 44.45 | 25.4 | 25.22 | 12.7 | 151.8 | 156.8 | 42 | 48.87 | 517.2 | 593.1 | 22.2 |
32A-3 | 160-3 | 50.8 | 28.58 | 31.55 | 14.27 | 181.4 | 186.6 | 48 | 58.55 | 680.4 | 780.6 | 30.02 |
36A-3 | 180-3 | 57.15 | 35.71 | 35.48 | 17.46 | 204.4 | 210.2 | 53.6 | 65.84 | 840.7 | 983.8 | 38.22 |
40A-3 | 200-3 | 63.5 | 39.68 | 37.85 | 19.85 | 223.5 | 230.4 | 60 | 71.55 | 1061.4 | 1217.8 | 49.03 |
48A-3 | 240-3 | 76.2 | 47.63 | 47.35 | 23.81 | 271.3 | 278.6 | 72.39 | 87.83 | 1530.9 | 1756.6 | 71.6 |
