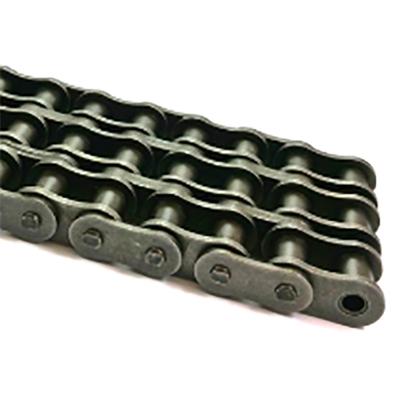

A series triple strand stainless steel short pitch precision roller chains
Applications
- Industrial Equipment:
- Used in various industrial machinery where durability and high load capacity are required. Common applications include conveyors, automated production lines, and material handling systems.
- Food and Beverage Industry:
- The stainless steel construction makes these chains ideal for use in the food and beverage industry, where resistance to moisture, sanitation, and cleanliness are crucial.
- Pharmaceutical and Chemical Industries:
- In environments where exposure to chemicals and cleaning agents is common, stainless steel chains provide the necessary resistance to corrosion and contamination.
- Marine and Outdoor Applications:
- Suitable for marine environments and outdoor applications where exposure to saltwater and other harsh elements could lead to rapid deterioration of standard chains.
- Automotive Industry:
- Employed in automotive production lines and other applications requiring high precision and load-bearing capabilities.

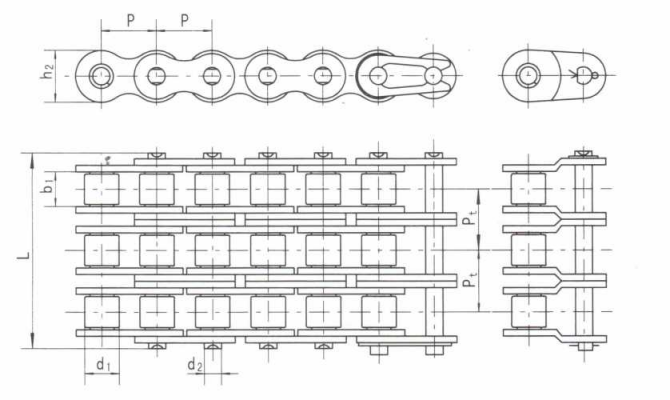

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner
plate depth |
Transv-
erse pitch |
Ultimate tensile strength | Average tensile strength | Weight
Per meter |
||
| Chain | dia | length | ||||||||
| No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Pt
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| *25SS-3 | 6.35 | 3.3 | 3.18 | 2.31 | 21 | 6 | 6.4 | 6.3 | 6.8 | 0.41 |
| *35SS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.7 | 9 | 10.13 | 13.8 | 19.3 | 1.05 |
| 40SS-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.5 | 12 | 14.38 | 27.5 | 30 | 1.90 |
| 50SS-3 | 15.875 | 10.16 | 9.40 | 5.08 | 56.8 | 15 | 18.11 | 43.7 | 57.1 | 3.09 |
| 60SS-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71 | 18 | 22.78 | 63.7 | 69.3 | 4.54 |
| 80SS-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.4 | 24 | 29.29 | 110.7 | 130.5 | 7.89 |
| 100SS-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 30.18 | 35.76 | 159.3 | 169.6 | 11.77 |
| 120SS-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141.4 | 35.7 | 45.44 | 250.6 | 262.3 | 17.53 |
Bushing chain: d1 in the table indicate the external diameter of the bushing.
