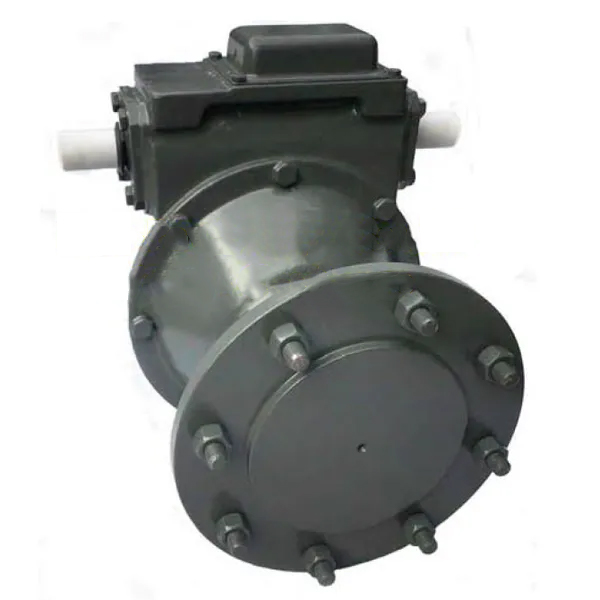

AEP-1 Series Irrigation Wheel Drive Final-Drive Gearbox

AEP-1 Series Irrigation Wheel Drive Final-Drive Gearbox

The AEP-1 Series Irrigation Wheel Drive Gearbox, also known as the Irrigation Final-Drive Gearbox, is a crucial component in agricultural irrigation systems. The AEP-1 Series Irrigation wheel drive gearboxes are responsible for transmitting power from the main irrigation system to the wheels of the irrigation equipment, such as center pivots or linear move systems. These gearboxes convert the rotational power of the drive unit into a suitable torque and speed required to propel the irrigation system.

The AEP-1 Series irrigation wheel drive gearbox is engineered with specific features and specifications to meet the demands of irrigation applications. These gearboxes are designed to withstand the harsh conditions often encountered in agricultural environments, including exposure to water, dust, and varying weather conditions. The gear ratio of the gearbox determines the torque output and speed of the wheels. It is carefully designed to provide the optimal balance between torque and speed for efficient irrigation operation.

Gearbox AEP-1 Series Model Numbers

Model Numbers:
AEP-1-50 =(50:1 ratio, standard)
AEP-1V-52 =(52:1 ratio, replaces Valley drives)

Irrigation Wheel Drive Gearbox AEP-1 Series Performance

1. Torque capacity: 69,000 lb.in (7800 N.m)
2. Ratio: 50:1, 52:1 (others available).
3. Universal mount bolt pattern, allows usage on virtually all pivots.
4. High-strength steel worm, gear, and output shaft.
5. Shipped with oil.
6. Includes special external crop guard seals.
7. High-strength cast iron box and end caps.
8. Includes serrated shank carriage bolts with wheel nuts.
9. Full cycle expansion chamber; bellows-type expansion diaphragm.
10. Tapered roller bearings.
11. Input shaft seals fitted with triple lip for maximum protection.
12. Worm and gear are either precision finished for higher efficiency rating.
13. Totally enclosed light weight easy-to-access top junction box.
14. Weight: 104 lbs (47.5 Kg).
15. Oil capacity: 1.0 gal (3.9L).

Installation and Contour Dimensions

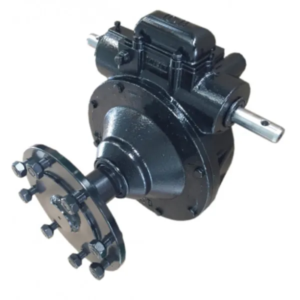

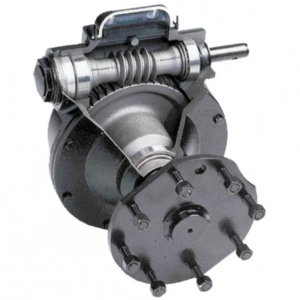

Advantages

The Irrigation Wheel Drive Gearbox, AEP-1 Series, offers several advantages when used in agricultural irrigation systems. Here are some of the key benefits:

1. Efficient Power Transmission: The AEP-1 Series gearbox is designed to efficiently transmit power from the main irrigation system to the wheels of the irrigation equipment. It ensures minimal power loss during transmission, allowing for maximum power utilization and improved overall system efficiency.

2. Customizable Gear Ratio: The gearbox provides the option to customize the gear ratio based on specific irrigation requirements. This allows farmers to adjust the torque and speed of the wheels according to the terrain, crop type, and irrigation needs, optimizing the system’s performance.

3. Durable and Reliable: The AEP-1 Series gearbox is constructed with robust materials and components, making it highly durable and reliable even in harsh agricultural environments. It can withstand exposure to water, dust, and extreme weather conditions, ensuring long-term operation without frequent maintenance or replacements.

4. Protection Against Contaminants: The gearbox is designed with a sealed enclosure, protecting the internal components from water, dust, and other contaminants. This feature helps prevent damage, corrosion, and premature wear, extending the lifespan of the gearbox and reducing maintenance requirements.

5. Increased System Control: By incorporating the AEP-1 Series gearbox, farmers gain better control over their irrigation systems. The customizable gear ratio allows for precise adjustments in wheel speed, enabling farmers to optimize water distribution, reduce water waste, and improve crop yield.

6. Enhanced Water Management: The gearbox contributes to improved water management in agricultural irrigation systems. By providing efficient power transmission and control, it helps ensure that water is distributed evenly across the field, minimizing overwatering or under-watering and maximizing water utilization.

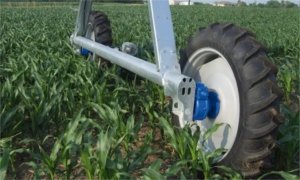

Applications

The Irrigation Wheel Drive Gearbox, AEP-1 Series, is specifically designed for use in various irrigation applications. It plays a crucial role in transmitting power from the main irrigation system to the wheels of the irrigation equipment. Here are some common irrigation applications where the AEP-1 Series gearbox is utilized:

(1) Center Pivot Systems: Center pivot irrigation systems are widely used in large-scale agricultural operations. The AEP-1 Series gearbox is commonly employed in these systems to provide the necessary power transmission to drive the wheels that move the irrigation pivot. It ensures consistent and efficient water distribution across the field.

(2) Linear Move Systems: Linear move irrigation systems, also known as lateral move systems, consist of multiple towers moving in a straight line across the field. The AEP-1 Series gearbox is utilized in these systems to drive the wheels of each tower, enabling precise and uniform irrigation along the entire length of the field.

(3) Traveling Gun Sprinklers: Traveling gun sprinklers are portable irrigation systems that use a gun sprinkler mounted on a moving cart. The AEP-1 Series gearbox is employed in these systems to drive the wheels of the cart, allowing for controlled movement and accurate water coverage over specific areas.

(4) Hose Reel Systems: Hose reel irrigation systems involve a sprinkler attached to a rotating reel, which unwinds and rewinds a flexible hose. The AEP-1 Series gearbox is utilized in these systems to drive the wheels of the reel, enabling the controlled unwinding and rewinding of the hose for efficient water distribution.

(5) Self-Propelled Irrigation Machines: Some advanced irrigation machines are self-propelled, capable of automatically moving across the field while irrigating. The AEP-1 Series gearbox is often utilized in these machines to provide the necessary power transmission to drive the wheels and control the movement of the irrigation equipment.

How Does the Irrigation Wheel Drive Gearbox (Irrigation Final-Drive Gearbox) Work?

The Irrigation Wheel Drive Gearbox, also known as the Irrigation Final-Drive Gearbox, works by converting the rotational power from the main irrigation system into torque and speed required to drive the wheels of the irrigation equipment. Here’s a general overview of how it operates:

1. Power Input: The gearbox receives power from the main irrigation system, which is typically provided by an electric motor, hydraulic system, or a power take-off (PTO) shaft connected to a tractor or engine.

2. Input Shaft: The power is transmitted to the gearbox through an input shaft, which is connected to the power source. The input shaft transfers the rotational energy to the gearbox for further processing.

3. Gear Train: Inside the gearbox, there is a gear train consisting of multiple gears with different sizes and tooth configurations. The gear train is responsible for changing the speed and torque of the input power to match the requirements of the irrigation system.

4. Gear Ratio: The gear ratio determines the relationship between the rotational speed of the input shaft and the rotational speed of the output shaft. By selecting the appropriate gear ratio, the gearbox can achieve the desired balance between torque and speed to drive the irrigation equipment effectively.

5. Output Shaft: The output shaft of the gearbox is connected to the wheels of the irrigation equipment. As the gears rotate, the power is transferred from the gearbox to the output shaft, which in turn drives the wheels, propelling the irrigation system across the field.

6. Lubrication System: The gearbox often includes a lubrication system to ensure proper lubrication of the gears and bearings. This minimizes friction and wear, ensuring smooth operation and extending the lifespan of the gearbox.

7. Sealing: The gearbox is sealed to protect its internal components from water, dust, and contaminants commonly found in agricultural environments. This sealing helps prevent damage and ensures the gearbox functions reliably even in challenging conditions.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
