AG135 Lawnmower 135 deg gearbox 1:1 for Agricultural
We have parts and blades to fit rotary cutters and a Lawnmower gearbox from many manufacturers, including Bush Hog, Grizzly, and more. Please reach out to our experts for any questions regarding any rotary cutter gearboxes, rotary cutter blades, lawn mower parts, and wheel parts.
AG135 Lawnmower 135 deg gearbox 1:1 for Agricultural

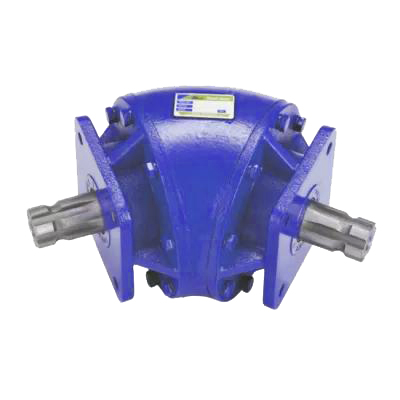

AG135 135 deg gearbox
|
 |
| ITEM | AG135 135 deg gearbox |
| Ratio | 1:1 |
| Teeth | 20/20 |
| Module | 6.0 |
| Power（HP） | 50 |
| Rated Input | 540rpm |

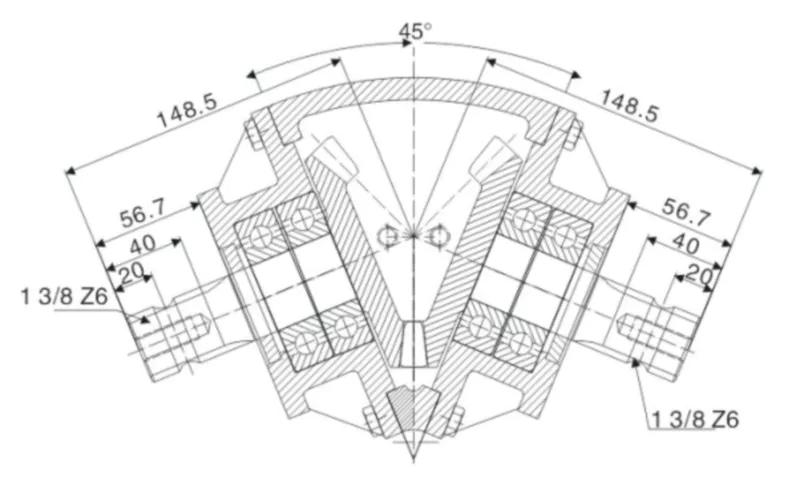

| Input/Output description | 1 3/8 Z6 Cone base aequilate Spline Shaft |
| Weight（N.W） | 16.5Kg |
We have parts and blades to fit rotary cutters and rotary mowers from many manufacturers, including Bush Hog, Grizzly, and more. Please reach out to our experts for any questions regarding any rotary cutter gearboxes, rotary cutter blades, lawn mower parts, and wheel parts.
With a rated horsepower capacity of 50, this gearbox will provide an excellent operation to your rotary cutter. It has a smooth input shaft that measures 1-3/8 inches. This rotary gearbox may be used with 4-foot, 5-foot, and 6-foot rotary cutters
Why choose us?
- Responsible：Attitude determines everything, details determine success or failure. We are responsible for your products.
- Professional：The R&D office, Test laboratory, and CNC lathe workshop are operated by professionals.
- Scientific management：A strict company system and scientific material management will reduce the error rate.
We Also Supply PTO Shafts
Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also provided by the use of internal yokes.
If you also need the PTO shafts, contact us to get more!
Other Agricultural Gearboxes
Design The agricultural gearbox to change the output speed of a PTO drive shaft. It works as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft’s speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
 |
 |
 |
 |
 |
| Feed Mixer Gearbox | Post Hole Digger Gearbox | Agricultural Sprayer Gearbox | Flail Mower Gearbox | Cutter Bars Gearbox |
 |
 |
 |
 |
 |
| Gearbox For Hay Tedders | Rotary Mower Gearbox | Rotary Cutter Gearbox | Hydraulic Drive Gearbox | Lawn Mower Gearbox |
 |
 |
 |
 |
 |
| Fertilizer Spreader Gearboxes | Agitators Gearbox For Sewage | Angular Gearbox | Irrigation Reels Gearbox | Manure Spreader Gearbox |
 |
 |
 |
 |
 |
| Micro Tiller Gearbox | Parallel Gearbox | Snowblower Gearbox | Round Baler Gearbox | Rotary Tiller Gearbox |
Agricultural Gearbox Production Workshop
- We are a China company specializing in the development and production of various gearboxes.
- Exported to the United States, Canada, Taiwan, northern Europe, and other places.
- Has set up a high-performance design department, testing laboratory, and testing center.
- Established a strong professional technical team.
- Passed ISO9001 certification.
- All employees have established a strict quality control system based on their skills, integrity, and sense of responsibility.
- Always insists on providing customers with high-quality products and professional services.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
