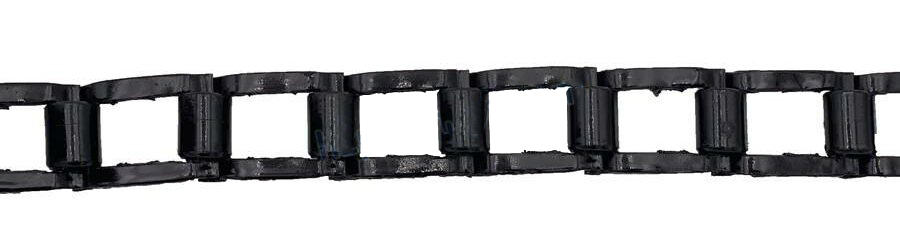

Agricultural 62 Steel Detachable Chain with SFS1 Attachment
The detachable chain is made from special analysis hot rolled strip steel. The links are precision formed for pitch uniformity and heat treated to assure high strength and long wear life. The links of 62 steel detachable chains can easily be assembled or disassembled by flexing the chain and tapping the link in or out. The 62 detachable chains should always be operated with the closed side of the barrel against the sprocket. The detachable steel chain is designed for moderate loads and speeds. A plain chain is used for transmission drives and with interspersed attachments for conveying applications. This type of chain is very economical and easy to install and repair.
Agricultural Steel Detachable Chain 62-SFS1 With SFS1 Attachment
The agricultural detachable chain(62 steel detachable chains) is made from special analysis hot rolled strip steel. The links are precision formed for pitch uniformity and heat treated to assure high strength and long wear life.
The links of 62 steel detachable chains can easily be assembled or disassembled by flexing the chain and tapping the link in or out. The 62 detachable chains should always be operated with the closed side of the barrel against the sprocket.
The detachable steel chain is designed for moderate loads and speeds. A plain chain is used for transmission drives and with interspersed attachments for conveying applications. This type of chain is very economical and easy to install and repair.
|
 |
|
62 Steel Detachable Chain Size Chart
Agricultural applications commonly use #62 detachable chains. Made of hot-rolled steel, this chain is highly durable and easy to repair. Because of its simplicity and easy-to-install design, this chain is ideal for use in agricultural applications. The steel chain is available in both painted and unpainted varieties and is easy to maintain and repair.
|
Att. No.
|
Chain No.
|
A
|
C
|
F
|
H
|
N
|
T
|
|
SFS1
|
62
|
4.313
|
.875
|
5.250
|
1.500
|
.328
|
.148
|
62 Steel Detachable Chain Features
Detachable chains are easy to install and disassemble. They come with a number of attachments, which enable them to fit various types of equipment. They can be attached to belting, bars, and rods. The material and number of teeth determine the speed of the chain. Steel detachable chains are easy to install and repair.
Steel detachable chain is beneficial in day-to-day applications in machinery. It can works as a drive chain on older farm equipment. It is a durable chain with few maintenance requirements. If the chain breaks, simply hammer out the links and replace them with a new one.
A detachable chain is characterized by its torus-shaped links. These links are used for pulling, lifting, and securing.
- Extremely Durable and High Strength
- American Standard Steel Detachable Chain
- Easy To Maintain and Replace
- Manufactured From Hot Rolled Heat-Treated Steel
62 Steel Detachable Chain Attachments
Besides the chain we also stock a complete line of attachments. These attachments below can be supplied as individual links or already assembled onto the chain in any configuration needed. Our steel detachable chain attachments are manufactured to the same standards as the chain so you don’t lose tensile strength or integrity with the attachment link.
 |
 |
|

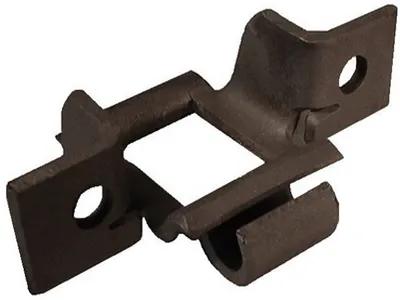

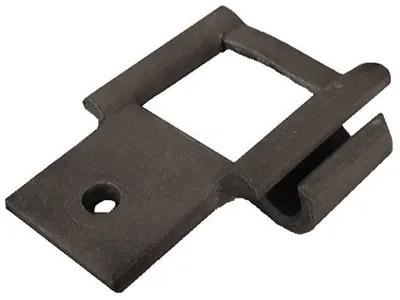

| 62 Detachable Chain with SH Attachment | 62 Detachable Chain with A1 Attachment | 62 Detachable Chain with SD Attachment |
 |
 |
 |

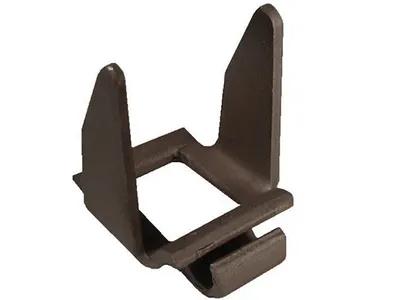

| 62 Detachable Chain with G27 Attachment | 62 Detachable Chain with C1 Attachment | 62 Detachable Chain with HB4 Attachment |
Agricultural 62 Steel Detachable Chain Applications

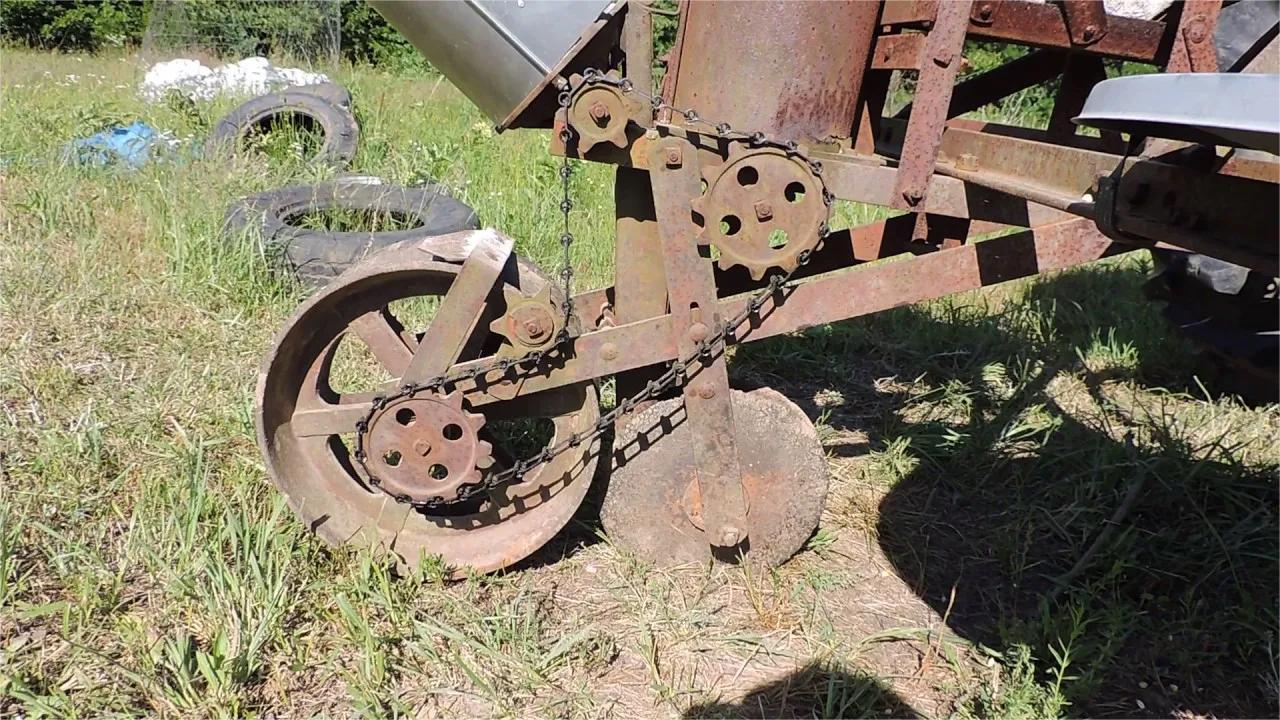

Steel detachable chains are a simple designed chain that was originally manufactured for the agricultural industry. Disassembly and repairing of steel detachable chain is easy, where a repair in the field will on take a few minutes. This detachable chain is commonly used on machines such as manure spreaders, hay bale elevators, live bottom trailers and other various farm equipment. This chain has been adopted by other industries due to the simplistic design, dependability & affordability.

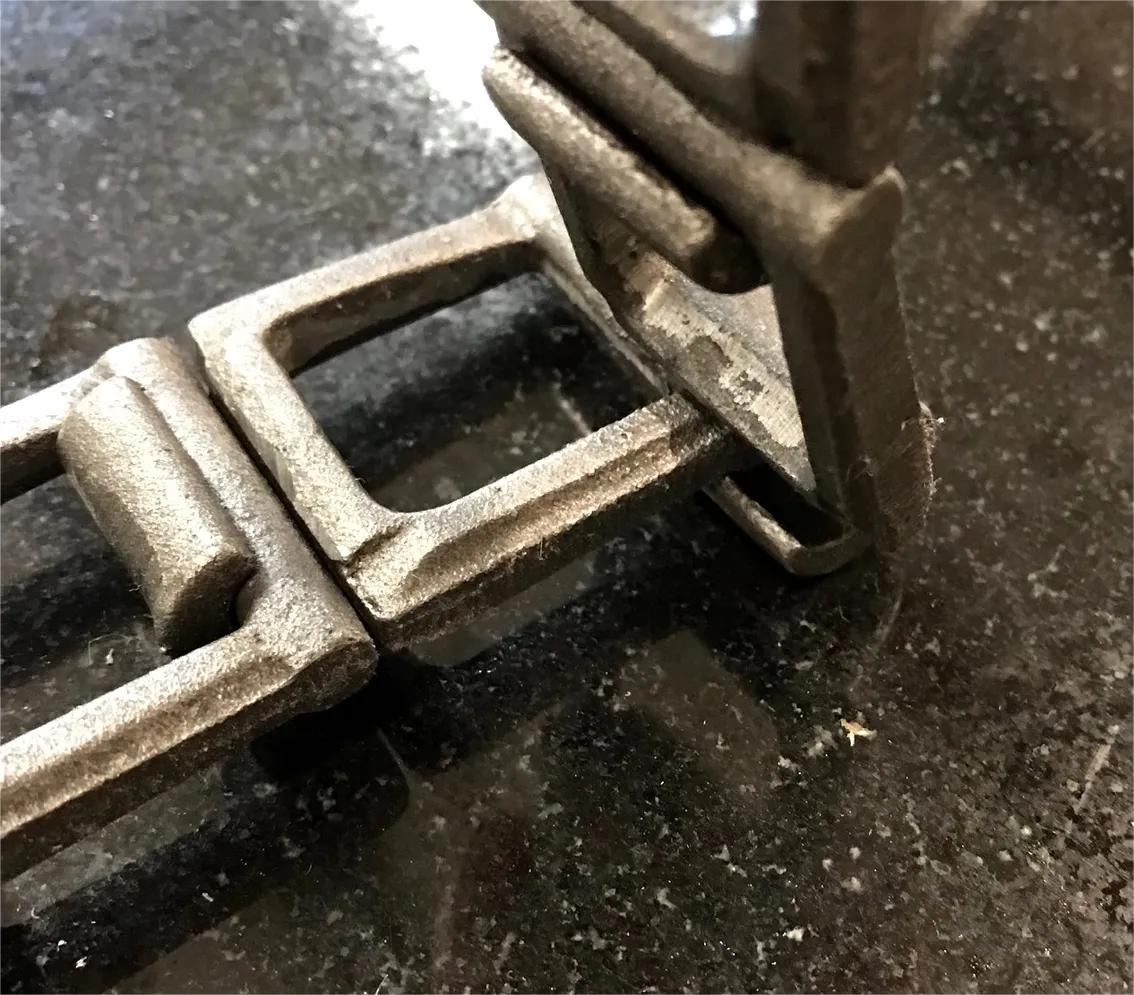

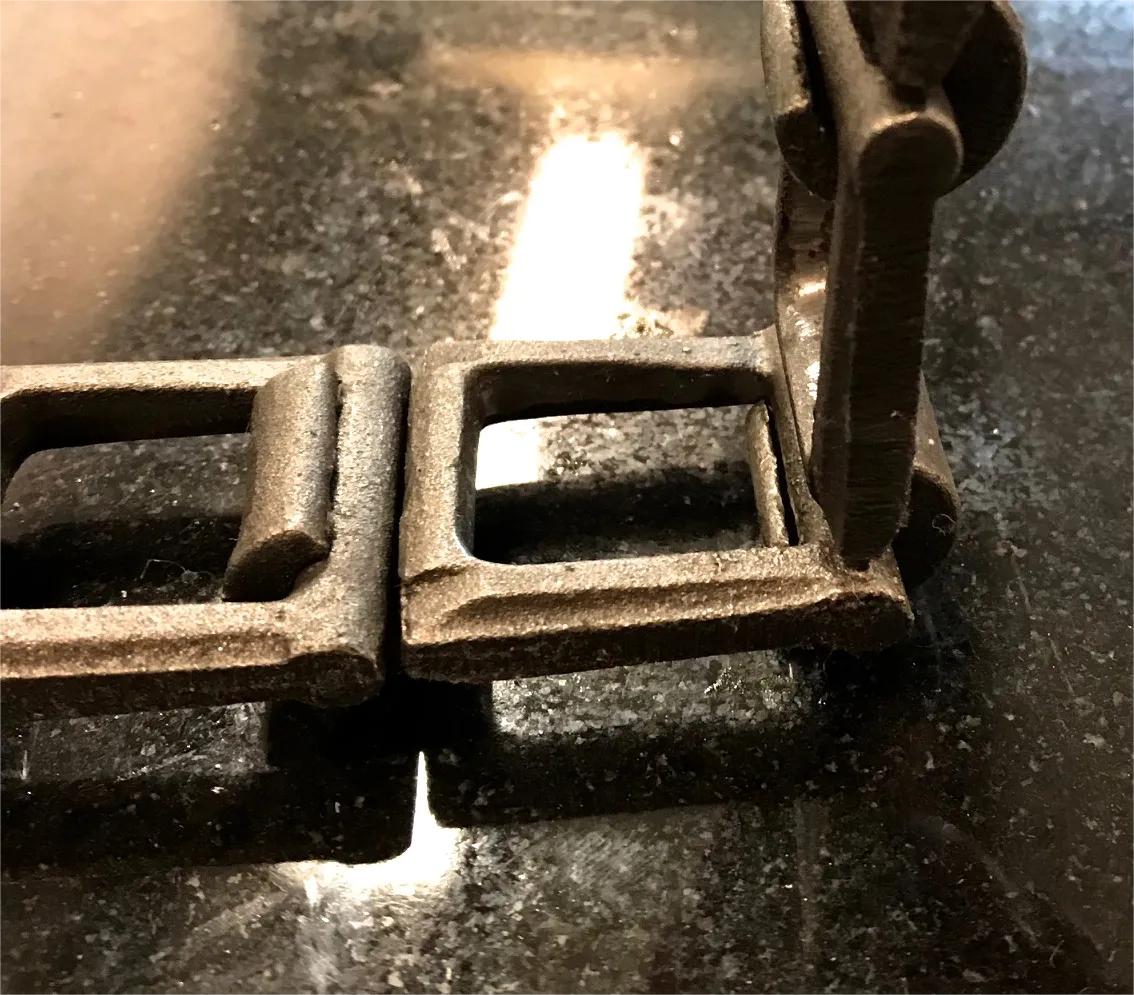

Steel Detachable Chain Disassembly
Disassembling and assembling steel detachable chain is extremely easy unless the chain is frozen or extensively rusted. For extreme cases use our Steel Detachable Chain Breaker for assistance.
 |
 |
 |
 |
| Step 1: Select a location for disassembly and release any tension and tensioning devices on the equipment. | Step 2: Rotate the chain to the desired position so that the drum can easily slide out of the hook part of the chain | Step 3: Once the right position is reached, it should be easy to disassemble the chain by simply sliding the barrel out and off to the side. | Results: Your steel detachable chain should now be disassembled and ready to be adjusted or taken off the equipment. |
Matching Detachable Chain Sprockets
A detachable chain sprocket is a component of the drive train system. They are usually installed using standard bolts and have contoured hardened teeth that prevent wear and damage to the chain. They are easy to install and have a long service life.
Detachable chains are generally made of steel, which is a heat-treated metal. They are making for medium loads and speeds and are easily repaired if damage occurs. Since they are easy to install and repair, they are often working on farm equipment, including hay bale elevators and manure spreaders. Due to their dependability, other industries have started to use them. They are also available in a variety of sizes and pitches. You can find more at our company, one of the professional sprocket suppliers.
