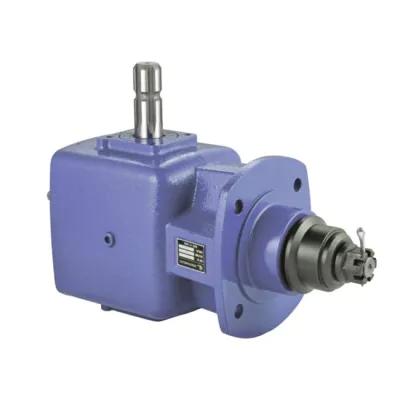

Agricultural Lawn Mower Gearbox 55
Our powerful new gearbox is the perfect shear bolt replacement for BorgWarner, Auburn, Omni, Comer industry, and patico light rotary cutting machines. When you need to replace an old or damaged rotary cutter gearbox, the Power-trans lawn mower gearbox should be your first choice.
Agricultural Lawn Mower Gearbox 55
Lawn Mower Gearbox Description
|
 |
| ITEM | 55 |
| Ratio | 1:1.6 |
| Teeth | 15/24 |
| Module | 6.0 |
| Power(HP) | 50 |
| Rated Input | 540rpm |

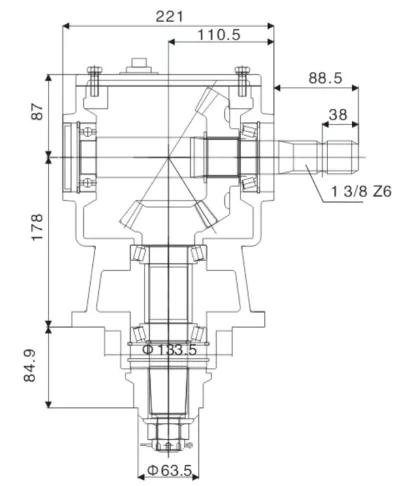

| Input/Output Description | 1-3/8 Z6
Cone base adequilate spline shaft |
| Weight(N.W) | 28.7KG |
Power-transtech lawn mower gearbox is used for lawn mower transmission, our normal standard from 30HP-90HP, we accept custom-made. We are professionals in the agricultural gearbox field with more than 20 years of experience. We can offer you not only gearboxes but also designing solutions.
| Material | HT250 for housing | ||
| 20CrMnTi for gear shaft | |||
| Aluminum for plate | |||
We Also Supply PTO Shafts
Power-transtech, a reliable PTO shaft manufacturer and factory in China, offers various series options and several choices for bearing diameter. If you need a universal joint PTO shaft for your agricultural gearbox and other farm machinery, contact us now!
Customized service of agricultural gearbox
Customized service of agricultural gearboxOur agricultural gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request
1. Large output torque
2. Safe, reliable, economical, and durable
3. Stable transmission, quiet operation
4. High carrying ability
5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type
6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.
7. Form of installation: The position to be installed is not limited.
8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.
9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.
10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.
11. Our gearbox has reached the advanced international level and can replace the same kind of products imported.
Durable Protection: Fits most light-duty rotary cutters that require shear pin protection, and includes 5 replacement shear bolts to add to your rotary kit.
Fits Models: RD5, RD6, RZ160, RZ60 – Gearbox Assembly P/N 00786192. Razorback Series BH4, BH5, BH6, BH4-2, BH5-2, BH6-2. BMB 1080, BMB 10300, Hardee C1378, Mohawk 14-500, Rhino 0711050100, Rhino 71105, Omni 250123, Omni 250001, SE Big Ox 1970, Sidewinder 26272, and Others
Industry-standard 1-3/8″ smooth diameter input shaft with 1/2″ shear bolt hole and retaining ring groove and 1.57″ diameter 12 tapered spline output shaft allow fitment to most light, standard, and medium-duty rotary cutters.
1:1.47 Ratio for use on 5′ and larger diameter rotary cutters
Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. Four-bolt mounting matches industry standards. Each gearbox includes a blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.
Other Agricultural Gearboxes
Feed Mixer Gearbox Post Hole Digger Gearbox Agricultural Sprayer Gearbox Flail Mower Gearbox Cutter Bars Gearbox Gearbox For Hay Tedders Rotary Mower Gearbox Rotary Cutter Gearbox Hydraulic Drive Gearbox Lawn Mower Gearbox Fertilizer Spreader Gearboxes Agitators Gearbox For Sewage Angular Gearbox Irrigation Reels Gearbox Manure Spreader Gearbox Micro Tiller Gearbox Parallel Gearbox Snowblower Gearbox Round Baler Gearbox Rotary Tiller Gearbox
Agricultural Gearbox(Lawn Mower Gearbox 55) Production Workshop
We were established in 1992. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox.
It also includes a variety of high-pressure cast valve body and shell products. Its products are working in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. We export more than 95% of its products to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R&D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
