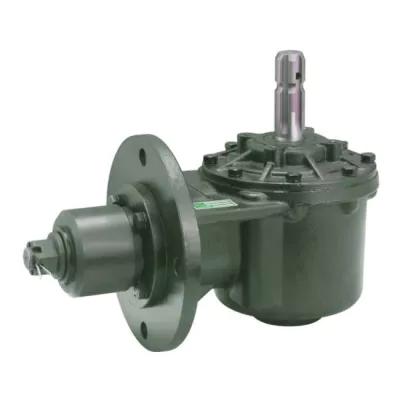

Agricultural Lawn Mower Gearbox 966109
The right angle gearbox for lawn mowers driven by a hydraulic motor is a new type of gearbox independently developed by the Power-trans machinery factory according to the requirements of customers. High-precision hard-tooth surface gear design with first-stage bevel gear transmission. It has the characteristics of high bearing capacity, stable operation, and low noise. It is mainly used in lawnmowers. Various speed ratios and input and output configurations can be selected according to needs.
Agricultural Lawn Mower Gearbox 966109
The right angle gearbox for lawn mowers(Lawn Mower Gearbox 966109) driven by a hydraulic motor is a new type of gearbox independently developed by our factory according to the requirements of customers. High-precision hard-tooth surface gear design with first-stage bevel gear transmission. It has the characteristics of high bearing capacity, stable operation, and low noise. It’t applications: lawn mowers. Various speed ratios and input and output configurations according to your requirement.
|
 |
Agricultural Lawn Mower Gearbox Specification
| ITEM | 966109 |
| Ratio | 1:1.47/1:1.93 |
| Teeth | 13/19 14/27 |
| Module | 7.0 /5.5 |
| Power(HP) | 60 |
| Rated Input | 540rpm |

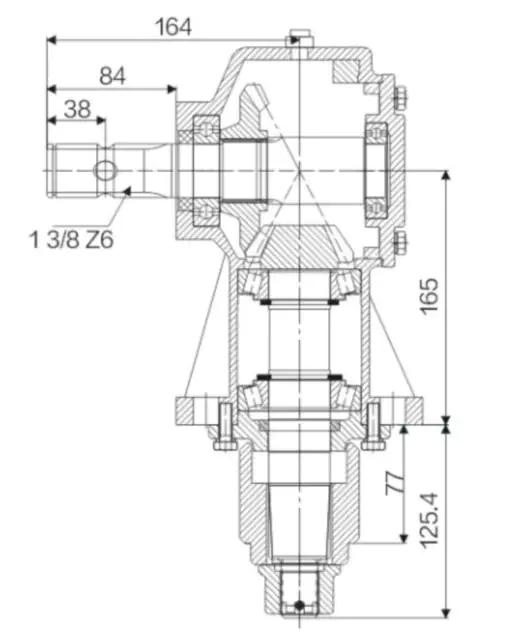

| Input/Output Description | 1 3/8 Z6/1 3/4 Z20 Optic ax1 Taper spline |
| Weight(N.W) | 29KG |

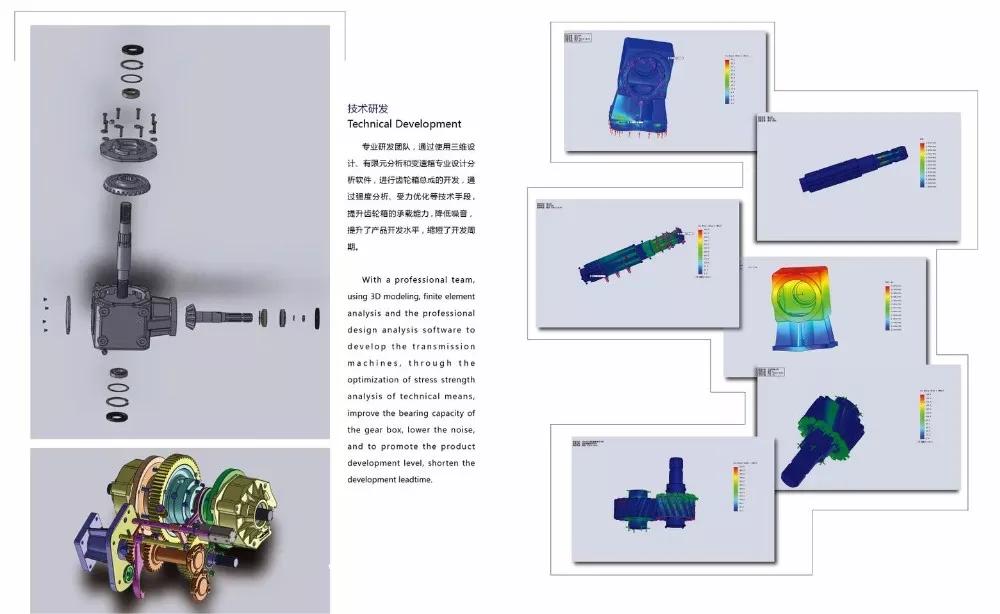

Lawn Mower Gearbox Parts Design
Agricultural Lawnmower Gearbox Features
- Transmission ratio: Different ratios as customized.
- Professional: Professional QC department and inspection equipment to control dimension and backlash, and noise well.
- ODM & OEM: The technology Dpt. can make design the gearbox and develop new craft according to the customer’s requirement.
- Warranty period: One and a half years to two years.
- Experience: 20 years of experience, safe, reliable, economical, and durable.
- Packing and Delivery control: All of our workers are well-trained to guarantee the high quality of our gearboxes, and 100% of products are inspected before delivery.
We promise to supply you with perfect design, professional quality control, competitive prices, and excellent services.

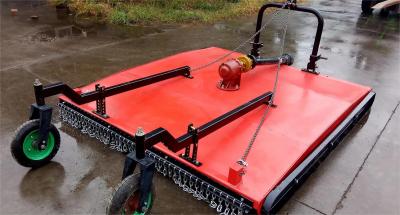

Lawn Mower Gearbox Repair and Maintenance
Most problems with lawn mower gearbox drive equipment are because of a lack of service and maintenance. Operators can check a few things before using their equipment.
Always maintain proper oil levels. If the mower gearbox speed is low, the bearing will not be fully lubricated. If the lawnmower gearbox is too full, it will generate heat, causing the box to heat up and possibly damage the seals.
Check the free clearance of the input and output shafts. If there is any free space, it may be a sign of bearing wear or a change in bearing preload Settings. Excessive clearance will result in oil seal failure, resulting in lubricant loss and bearing and gear damage. In most cases, bearing preload can be reset to eliminate all radial clearance by rehashing or tightening the bearing adjustment nut.
Most lawn mower gearboxes require an air vent to prevent pressure from building up inside the housing. Check regularly to make sure the respirator is working properly. If the pressure in the box increases, the oil seal will break, and lubricant loss will occur.
The Importance of Agricultural Gearboxes
Agricultural gearbox for farmers to optimize the machine performance, enabling them to maximize productivity. These gearboxes are composed of closed in the shell of the shaft and gear; the transmission power from an input shaft to one or more output shafts is between the input shaft and output shaft direction, speed, and/or changes in the rotation.
Gear wear can bring significant losses to farmers, and they are the primary users of this equipment. Agricultural applications require a high-quality gearbox. From soil preparation to sowing, harvesting, and preparing various goods, the whole food cycle is vital to the gearbox in agricultural equipment. Because with the growth of the population, the demand for food increases, the subsequent equipment wear increase, farmers will need they depend so much on the high quality of machine parts. Otherwise, costly downtime could seriously hinder production and can’t meet the growing demand.

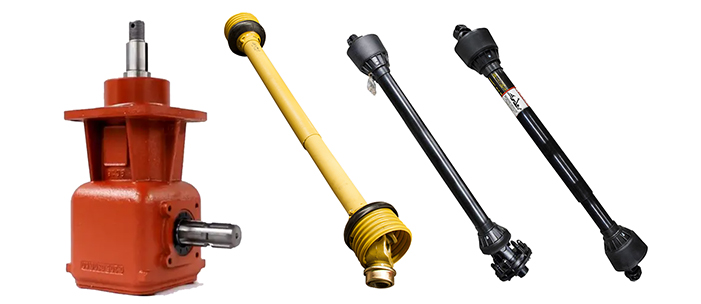

We Also Supply PTO Shafts
A PTO shaft is an extremely sophisticated mechanism that allows implements to draw energy from an engine. It works with a mechanical, agricultural gearbox. A PTO shaft can work with a vehicle’s transmission and is an essential system part. A high-quality PTO shaft should be durable enough to withstand torsion and minimize vibration. Power-trans manufactures a wide range of durable PTO shafts for agricultural gearboxes to meet all your requirements.
Other Agricultural Gearboxes
Other Agricultural Gearboxes |
 |
 |
 |
 |
| Feed Mixer Gearbox | Post Hole Digger Gearbox | Agricultural Sprayer Gearbox | Flail Mower Gearbox | Cutter Bars Gearbox |
 |
 |
 |
 |
 |
| Gearbox For Hay Tedders | Rotary Mower Gearbox | Rotary Cutter Gearbox | Hydraulic Drive Gearbox | Lawn Mower Gearbox |
 |
 |
 |
 |
 |
| Fertilizer Spreader Gearboxes | Agitators Gearbox For Sewage | Angular Gearbox | Irrigation Reels Gearbox | Manure Spreader Gearbox |
 |
 |
 |
 |
 |
| Micro Tiller Gearbox | Parallel Gearbox | Snowblower Gearbox | Round Baler Gearbox | Rotary Tiller Gearbox |
Agricultural Lawn Mower Gearbox Suppliers
We are manufacturing and personnel training on various gearboxes, reducers, and engineering machinery, including bevel gearboxes, agricultural gearboxes, planetary gearboxes, helical gearboxes, cycloidal gearboxes, worm gearboxes. Power-trans offers reliable agricultural gearbox solutions for almost any farming application. The agricultural gearbox is the main mechanical component of the kinematic chain of farming machines. We make high-quality for all kinds of agriculture gearboxes. Vast choices include the agricultural machine application of rotary cutters, fertilizer spreaders, feed mixers, post-hole diggers, flail mowers, rotary tillers, etc. Welcome to contact us by phone or email.
Have a professional team and advanced equipment. CNC workshop, gear hobbing workshop, insert workshop, gear cutter milling machine, heat treatment workshop, assembly workshop and automatic spray painting line form a complete assembly line.
FAQ
| Q1: Are you a direct manufacturer or trading company? | A: We produce and sell all by ourselves. |
| Q2: What products can you offer? | A: We mainly produce agricultural gearboxes, including lawn mowers, snow sweepers, balers, sprayers, rotary tillers, harvesters, and so on. |
| Q3: Can you do customized products (ODM)? | A: Yes, we are mainly doing customized products according to the customers’ drawings or samples. |
| Q4: How about the capacity of your company? | A: Our annual production capacity is over 250,000 sets. |
| Q5: What’s the payment term? | A: When we quote for you, we will confirm with you the way of transaction, FOB, CIF, CNF, etc. For mass production goods, you need to pay 30% deposit. Before producing and70% balance against copy of documents.the most common way is by t/t. L/c is also acceptable. |
