Agricultural Lawn Mower Gearbox RC31-193 RC31-147

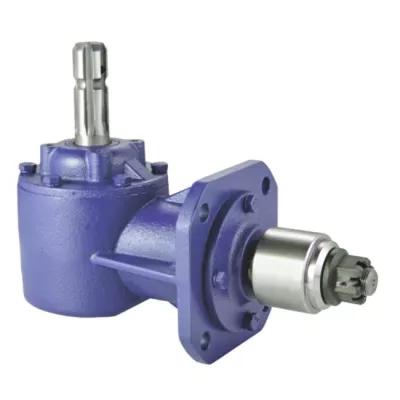

Replacement OMNI GEAR series RC-31 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16″-18 tapped holes on 4-1/8″ dia. B.C. For ships without oil, the user must add oil prior to use per the user‘s manual.
Agricultural Lawn Mower Gearbox RC31-193 RC31-147
Agricultural Lawn Mower Gearbox RC31-193 RC31-147 Detail
| ITEM | RC31-193 | RC31-147 |
| Ratio | 1:1.93 | 1:1.47 |
| Teeth | 15/29 | 15/22 |
| Module | 4.0 | 5.08 |
| Power(HP) | 30 | 40 |
| Rated Input | 540rpm | 540rpm |
| Input/Output Description | 1-3/8 Z6
Cone base aequilate spline shaft |
|
| Weight(N.W) | 24.5KG | 24.5KG |
Replacement OMNI GEAR series RC-31 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16″-18 tapped holes on 4-1/8″ dia. B.C. For ships without oil, the user must add oil prior to use per the user‘s manual.
Specifications of Lawn Mower Gearbox
 |
|
Brand of replaceable gearbox
Bush Hog: ATH 600 and ATH 720, ATH 900, FTH 480, FTH 600, FTH 720, MTH 600, MTH 720 Series Mowers;
Landpride: FDR1548, FDR1560, FDR1572, FDR1648, FDR1660, FDR1672, FDR2548, FDR2560, FDR2572, AT2660, AT2672 Series Mowers;
Kubota: BL348A, B342A; Caroni TC480, TC590, TC710, TC910 with spline Input Shaft;
Befco most late models with splined input shafts, early models had some with smooth input shaft;
Curtis all Models; Douglas all Models; Tecma all Models;
Sovema all Models; Maschio all Models; Phoenix all Models;
Sicma all Models; First Choice all Models
Customized Service of Agricultural Gearbox
Our agricultural gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc.
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7. OEM according to your request
PTO Shafts and Agricultural Gearboxes
Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between farm tractors. A PTO shaft converts engine energy into hydraulic pressure. This is what allows the tractor to pull heavy loads. When properly functioning, it reduces the risk of damage to the tractor and to the operator. When used properly, it is an important component of a tractor, but it can also become defective. When choosing an agricultural gearbox, consider the durability and mechanism of the product, as well as its materials. A durable gearbox will last for many years, avoiding repeated replacements. A high-quality agricultural gearbox will be durable for many years to come, and you don’t want to end up replacing it for a while. This can be costly, so consider your needs when purchasing an agricultural gearbox and PTO shaft.
