Agricultural roller chains attachments A1/CA620 ATT/C2060H C5E/C2060H

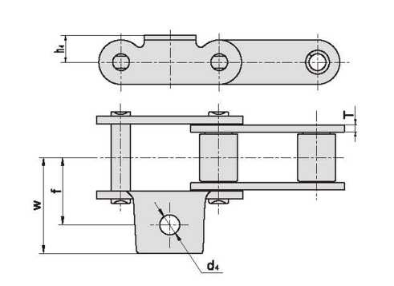

Agricultural roller chains with attachments A1
Type | Chain No. | f
mm |
W
mm |
h4
mm |
T
mm |
d4
mm |
A1 | CA620 | 31.4 | 40.1 | 11.5 | 3.2 | 8.75 |

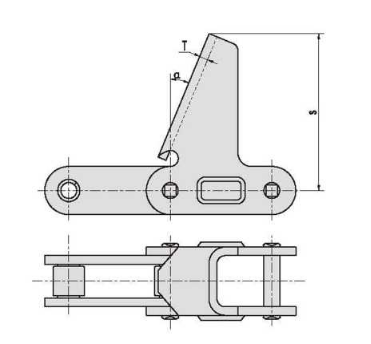

Type | Chain No. | α | T
mm |
S
mm |
ATT | C2060H | 22.5° | 3.2 | 58.7 |

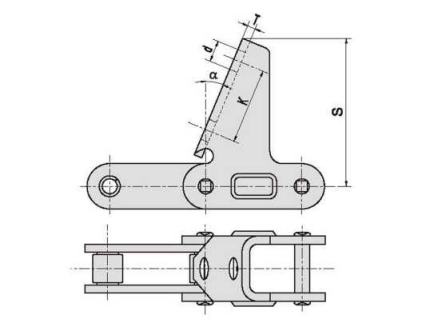

Type | Chain No. | α | T
mm |
S
mm |
d4
mm |
K
mm |
C5E | C2060H | 22.5。 | 3.2 | 57.2 | 8.5 | 30 |
When selecting attachments for agricultural roller chains, ensure they match the chain’s pitch, size, and intended use. Regular maintenance and proper adjustment of these attachments are essential to ensure efficient operation and prolong the lifespan of both the chain and the machinery.
