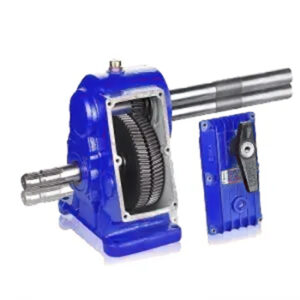

Agricultural Sprayer Gearbox – Replacement of Comer Code D27A D27J D27B
The agricultural sprayer gearbox is a type of gearbox used in agricultural spraying equipment. It is designed to provide a reliable and efficient power transmission system for the sprayer. The gearbox is usually made of durable materials such as steel or aluminum and is designed to withstand the harsh conditions encountered in agricultural spraying.
Agricultural Sprayer Gearbox – Replacement of Comer Code D27A D27J D27B
The agricultural sprayer gearbox is a type of gearbox used in agricultural spraying equipment. It is designed to provide a reliable and efficient power transmission system for the sprayer. The gearbox typically consists of a gear train, a clutch, and a gear selector. The gear train is responsible for transferring power from the engine to the sprayer. The clutch is used to engage and disengage the power transmission system, while the gear selector allows the operator to select the desired gear ratio. The gearbox is usually made of durable materials such as steel or aluminum and is designed to withstand the harsh conditions encountered in agricultural spraying.
Specifications of Agricultural Sprayer Gearbox D27A/D27J/D27B

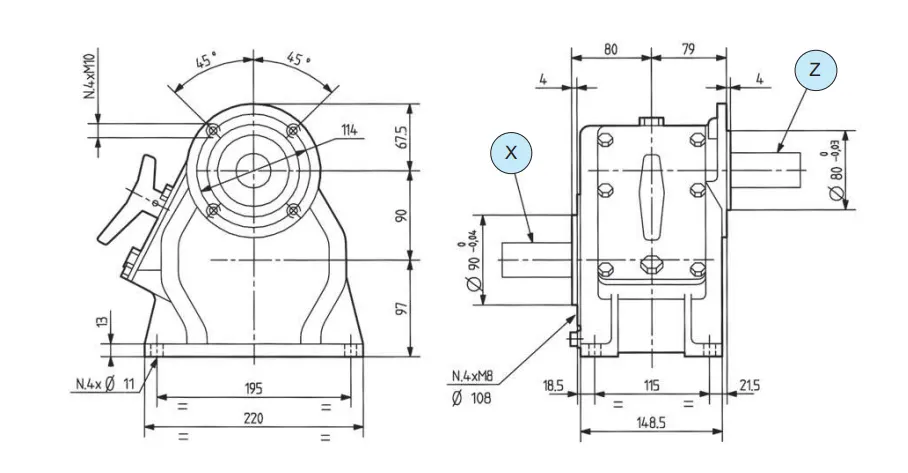

D27A
| i | N1[rpm] | P1[kW] | M2[Nm] | Shaft Type |
Input | |
X |
Z |
|||||
| 4.00 5.25 |
540 | 22.1 | 1” 3/8 Z6 | X | ||
| 3.70 4.80 |
540 | 22.1 | – | 1” 3/8 Z6 | L250 35 | X |
| 3.70 4.40 |
540 | 22.1 | – | 1” 3/8 Z6 | L117 35 | X |
| 2.95 4.00 |
540 | 22.1 | 1” 3/8 Z6 | X | ||

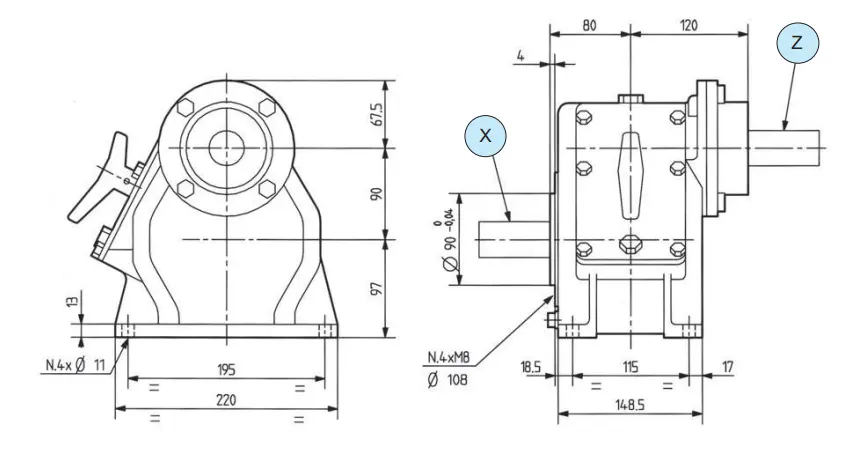

D27J/D27B
| i | N1[rpm] | P1[kW] | M2[Nm] | Shaft Type |
Input | |
| X |
Z |
|||||
| 4.00 5.25 |
540 | 22.1 | – | 1” 3/8 Z6 | L200 Φ30 | X |
| 3.69 4.36 |
540 | 22.1 | – | 1” 3/8 Z6 | L253 40 | X |
| 2.95 4.00 |
540 | 22.1 | – | 1” 3/8 Z6 | L200 40 | X |
| 2.95 4.00 |
540 | 22.1 | – | 1” 3/8 Z6 | L250 40 | X |
Advantages of Agricultural Sprayer Gearbox
The agricultural sprayer gearbox is an essential component of modern agriculture machinery that enables the efficient and effective application of agricultural inputs such as fertilizers, pesticides, and herbicides. Here are some of the advantages of an agricultural sprayer gearbox:
- High performance: Agricultural sprayer gearbox offers high performance, making it possible to cover a large area of land within a short time. This means that farmers can save time and increase their productivity.
- Precision application: The sprayer gearbox allows for precision application of agricultural inputs, which helps to reduce waste and optimize their use. This, in turn, helps to minimize the cost of inputs and protect the environment.
- Versatility: The gearbox can be used with different types of agricultural machinery, such as tractor-mounted sprayers, boom sprayers, and air-assisted sprayers. This means that farmers can use it for various applications, making it a versatile tool for agricultural production.
- Durability: Agricultural sprayer gearbox is designed to withstand harsh weather conditions, heavy use, and other challenges that are common in agricultural production. This makes it a durable and reliable component that farmers can depend on for many years.
In summary, an agricultural sprayer gearbox is an essential tool for modern agriculture production that offers high performance, precision application, versatility, and durability.

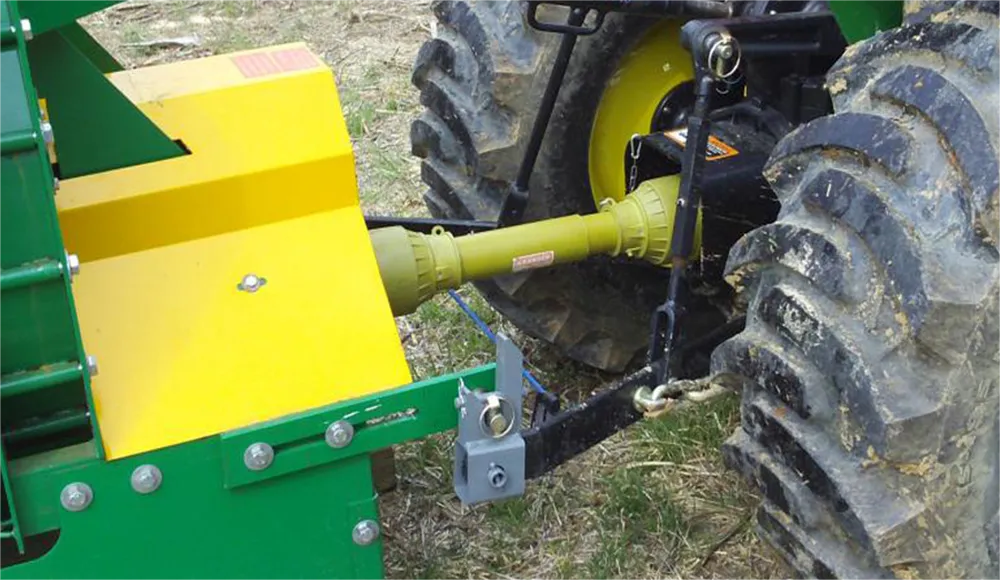

PTO Shafts for Agricultural Sprayer Gearbox
PTO shafts are an important component of an agricultural sprayer gearbox that enables power transfer from the tractor to the sprayer. The shaft connects the power take-off (PTO) of the tractor to the gearbox, allowing the sprayer to be powered by the tractor’s engine. PTO shafts are available in different lengths and sizes to fit various types of agricultural machinery. They are designed to be durable and withstand the harsh conditions of agricultural production. Proper maintenance and use of PTO shafts are essential to ensure optimal performance and safety. We also supply a wide range of PTO drive shafts for sale. Contact us now if you are interested!
