AK Series Single Groove Sheaves

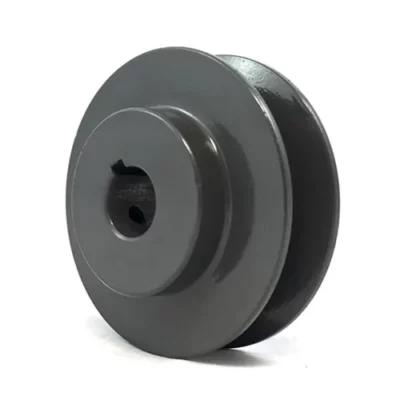

AK series cast iron single groove sheaves pulleys(AK Series Single Groove Sheaves) are manufactured for A-series v-belts, AX v-belts, and 4L belts. And AK series single groove sheave pulleys range in diameter from 1.75″ to 18.25″, but custom ones are available upon request.
AK-Series Pulley(AK Series Single Groove Sheaves) Size Chart
Size
|
Outside Diameter
|
Pitch Diameter (4L/A)
|
Pitch Diameter (3L)
|
Type
|
(F)
|
Dimension (L)
|
Dimension (P)
|
(C)
|
Pulley Weight
|
---|---|---|---|---|---|---|---|---|---|
AK17 | 1.75″ | 1.50″ | 1.16″ | 1 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.2 LBS |
AK20 | 2.00″ | 1.80″ | 1.46″ | 1 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.3 LBS |
AK21 | 2.10″ | 1.90″ | 1.56″ | 1 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.4 LBS |
AK22 | 2.20″ | 2.00″ | 1.66″ | 1 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.5 LBS |
AK23 | 2.30″ | 2.10″ | 1.76″ | 1 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.5 LBS |
AK25 | 2.50″ | 2.30″ | 1.96″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.5 LBS |
AK26 | 2.60″ | 2.40″ | 2.06″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.5 LBS |
AK27 | 2.70″ | 2.50″ | 2.16″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.6 LBS |
AK28 | 2.80″ | 2.60″ | 2.26″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.7 LBS |
AK30 | 3.05″ | 2.80″ | 2.46″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.7 LBS |
AK32 | 3.25″ | 3.00″ | 2.66″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.7 LBS |
AK34 |
3.45″ | 3.20″ | 2.86″ | 2 | 21/32″ | 15/16″ | 7/16″ | 5/32″ | 0.9 LBS |
AK39 | 3.75″ | 3.50″ | 3.16″ | 2 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.4 LBS |
AK41 | 3.95″ | 3.70″ | 3.36″ | 2 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.5 LBS |
AK44 | 4.25″ | 4.00″ | 3.66″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.5 LBS |
AK46 | 4.45″ | 4.20″ | 3.86″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.5 LBS |
AK49 | 4.75″ | 4.50″ | 4.16″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.7 LBS |
AK51 | 4.95″ | 4.70″ | 4.36″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.7 LBS |
AK54 | 5.25″ | 5.00″ | 4.66″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.8 LBS |
AK56 | 5.45″ | 5.20″ | 4.86″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 1.9 LBS |
AK59 | 5.75″ | 5.50″ | 5.16″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 2.0 LBS |
AK61 | 5.95″ | 5.70″ | 5.36″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 2.1 LBS |
AK64 | 6.25″ | 6.00″ | 5.66″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 2.2 LBS |
AK66 | 6.45″ | 6.20″ | 5.86″ | 3 | 3/4″ | 1-5/32″ | 15/32″ | 1/16″ | 2.3 LBS |
AK69 | 6.75″ | 6.50″ | 6.16″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 3.5 LBS |
AK71 | 6.95″ | 6.70″ | 6.36″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 3.8 LBS |
AK74 | 7.25″ | 7.00″ | 6.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 3.4 LBS |
AK79 | 7.75″ | 7.50″ | 7.16″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 4.0 LBS |
AK84 |
8.25″ | 8.00″ | 7.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 3.8 LBS |
AK89 | 8.75″ | 8.50″ | 8.16″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 4.3 LBS |
AK94 | 9.25″ | 9.00″ | 8.68″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 4.5 LBS |
AK99 | 9.75″ | 9.50″ | 9.16″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 5.3 LBS |
AK104 | 10.25″ | 10.00″ | 9.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 5.1 LBS |
AK109 | 10.75″ | 10.50″ | 10.16″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 5.8 LBS |
AK114 | 11.25″ | 11.00″ | 10.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 5.6 LBS |
AK124 | 12.25″ | 12.00″ | 11.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 6.5 LBS |
AK134 | 13.25″ | 13.00″ | 12.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 7.5 LBS |
AK144 | 14.25″ | 14.00″ | 13.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 8.5 LBS |
AK154 | 15.25″ | 15.00″ | 14.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 9.8 LBS |
AK184 | 18.25″ | 18.00″ | 17.66″ | 3 | 3/4″ | 1-15/32″ | 23/32″ | — | 12.1 LBS |
Features of A-Section Pulleys for V-Belts
Buff up your hardware’s strength with A-section pulleys from us. The feature that makes our A-type belt pulley stand out is dynamic balancing matched exclusively with A-Series V-Belts. With the material’s weight evenly distributed around the 4L V-belt pulley, your machinery operates longer with enhanced precision. Explore our inventory of AK pulleys, including 2AK, AKH, and 2AKH types. Learn more about each type-A V-belt pulley by looking closely at the metal material. Our parts come with grade 35 cast iron, whereas other brands rely on standard grade 25. Swap out your classic metal with cast iron; the difference is night and day. Each pulley type-A operates with a smooth reaction time for almost any industrial application. These pulleys also work longer than other parts because of the wear resistance inherent to cast iron.
If you’re worried about corrosion, we cover you with A-type belt pulley parts painted with protective substances. Phosphate protecting every pulley fights off the corruption that plagues most systems. Go ahead and slowly swap out your system’s pulleys. Our stock works interchangeably with other manufacturers’ parts. That’s our dedication to your work ethic and budgeting needs.
