AKH Series Single Groove Sheaves
AKH series cast iron bushed pulleys(AKH Series Single Groove Sheaves) are manufactured for A-series v-belts, A.X. v-belts, 3L, and 4L belts. And AKH series pulleys range in diameter from 3.05″ to 18.25″, but custom ones are available upon request. These pulleys use an H-style bushing. This bushing type has a bore range of 3/8″ to 1-1/2″ and 10mm to 38mm. AKH pulleys range in diameter from 3.05″ to 18.25″, but custom ones are available upon request. We stock a complete line of these bushings as well.

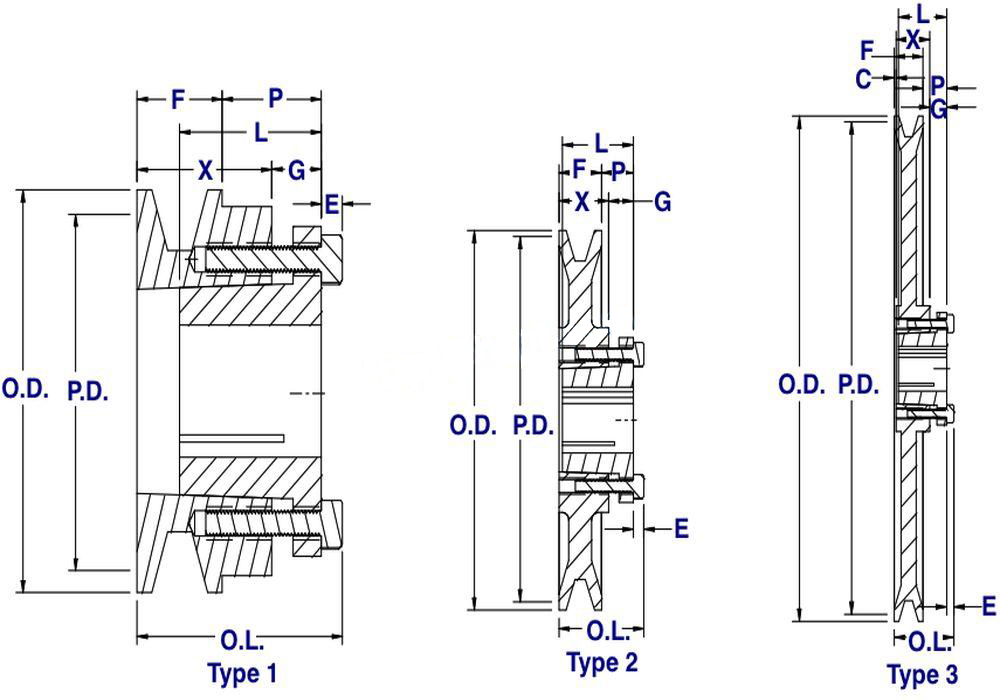

AKH-Series Pulley(AKH Series Single Groove Sheaves) Size Chart
Size
|
Outside Diameter
|
Pitch Diameter (4L/A)
|
Pitch Diameter (3L)
|
Type
|
(O.L.)
|
(F)
|
Dimension (L)
|
Dimension (P)
|
(C)
|
(X)
|
(G)
|
(E)
|
Pulley Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AK30H | 3.05″ | 2.80″ | 2.46″ | 1 | 1-13/16″ | 3/4″ | 1-1/4″ | 7/8″ | — | 1-3/16″ | 7/16″ | 3/16″ | 0.2 |
AK32H | 3.25″ | 3.00″ | 2.66″ | 1 | 1-13/16″ | 3/4″ | 1-1/4″ | 7/8″ | — | 1-3/16″ | 7/16″ | 3/16″ | 0.3 |
AK34H | 3.45″ | 3.20″ | 2.86″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.4 |
AK39H | 3.75″ | 3.50″ | 3.16″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.5 |
AK41H | 3.95″ | 3.70″ | 3.36″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.5 |
AK44H | 4.25″ | 4.00″ | 3.66″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.5 |
AK46H | 4.45″ | 4.20″ | 3.86″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.5 |
AK49H | 4.75″ | 4.50″ | 4.16″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.6 |
AK51H | 4.95″ | 4.70″ | 4.36″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.7 |
AK54H | 5.25″ | 5.00″ | 4.66″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.7 |
AK56H | 5.45″ | 5.20″ | 4.86″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.7 |
AK59H | 5.75″ | 5.50″ | 5.16″ | 2 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | — | 7/8″ | 7/16″ | 3/16″ | 0.9 |
AK61H | 5.95″ | 5.70″ | 5.36″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.4 |
AK64H | 6.25″ | 6.00″ | 5.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.5 |
AK66H | 6.45″ | 6.20″ | 5.86″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.5 |
AK69H | 6.75″ | 6.50″ | 6.16″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.5 |
AK71H |
6.95″ | 6.70″ | 6.36″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.7 |
AK74H | 7.25″ | 7.00″ | 6.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.7 |
AK79H | 7.75″ | 7.50″ | 7.16″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.8 |
AK84H | 8.25″ | 8.00″ | 7.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 1.9 |
AK89H | 8.75″ | 8.50″ | 8.16″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 2.0 |
AK94H | 9.25″ | 9.00″ | 8.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 2.1 |
AK99H | 9.75″ | 9.50″ | 9.16″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 2.2 |
AK104H | 10.25″ | 10.00″ | 9.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 2.3 |
AK109H | 10.75″ | 10.50″ | 10.16″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 3.5 |
AK114H | 11.25″ | 11.00″ | 10.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 3.8 |
AK124H | 12.25″ | 12.00″ | 11.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 3.4 |
AK134H | 13.25″ | 13.00″ | 12.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 4.0 |
AK144H | 14.25″ | 14.00″ | 13.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 3.8 |
AK154H | 15.25″ | 15.00″ | 14.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 4.3 |
AK184H | 18.25″ | 18.00″ | 17.66″ | 3 | 1-1/2″ | 3/4″ | 1-1/4″ | 9/16″ | 0″ | 7/8″ | 7/16″ | 3/16″ | 4.5 |
AKH Series Single Groove Sheaves Specifications
Series |
AKH Series |
Material | cast iron G3000 |
Surface Treatment | Black Oxide, E-coat, phosphating blacking, powder coating, painting, and Other coatings available upon request |
Machining Process | Forging and Machining, Precision Machining and Large Machining, Investment Casting of Lost Wax, Pressure Die |
Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding |
Inspection | Raw material, bath analysis, blank physical and chemical analysis, First check, metallography hardness permeating layer, semi-finished product inspection, Adhesion test, finished product inspection |
Standard | European Standard & American Standard |
Balance | Static & Dynamic Balance |
