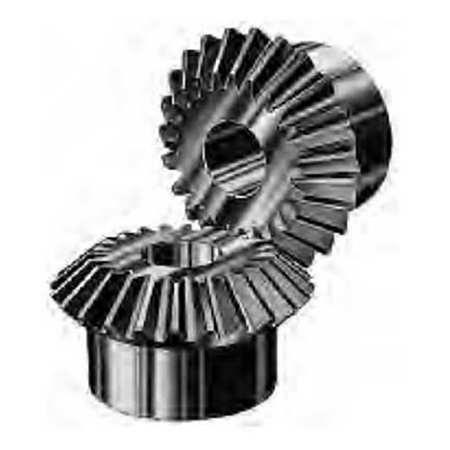

American standard bevel gear Miter Gears 20° Pressure Angle Steel – Plain Bore—Hardened Teeth

Category:
Description

<h2>American standard bevel gear</h2>

American standard bevel gear Miter Gears

20° Pressure Angle

1:1 ratio. They are working where high efficiency is required. Only miters of the same number of teeth, pitch, and pressure angle is operating together. More than two miters is working in sets, as in a differential.

The thrust of Miter Gears causes the gears to separate; there- fore, ball bearings or roller bearings should be used rather than sleeve bearings. Provisions should be made using thrust bear- ings to absorb backward thrust.

All standard stock Miter Gears must be mounted at right angles (90 degrees) for proper tooth bearing.

All Miter and Bevel Gears are generated with the Coniflex tooth form. A slight misalignment of gears is permissi- ble because of the localized tooth bearing running lengthwise along the gear tooth.

The mounting distance must be held in order to maintain prop- er backlash between gears. This will also insure that the ends of the gear teeth will be flush with each other. The use of a straight mineral oil as a lubricant is recommended for most Miter Gear applications.

Stock Miter Gears are making from .40 carbon steel.

  1. The “M” Series: furnished unhardened with plain bore.
  2. The “HM”Series: furnished hardened teeth with plain bore.
  3. The “HMK” Series: furnished hardened teeth with key way and setscrew for installation on the shaft.

Hardened Miter Gears have approximately 50% more horse- power capacity and provide greater gear wear than untreated gears.

All Miter Gears are cut with the 20° pressure angle sys-tem. They will not operate with any other pressure angle system.

Diameter Data

Steel – Plain Bore—Unhardened Teeth
Number Catalog Face Mounting Wt.Lbs.
Teeth Number (Inches) (Inches) (App.)
4 Pitch
24 M424 6.00 6.36 1.33 11/2 3  9/16 5  1/2 4 1 15/16 14.4
24 M424A 6.00 6.36 1.33 13/4 3  9/16 5  1/2 4 1 15/16 13.7
28 M428 7.00 7.36 1.43 2 3  5/8 6 5 1 15/16 21.1

5 Pitch

25 M525 5.00 5.29 1.10 1 3/8 3 45 /8 3 1/2 13/4 8.5
25 M525A 5.00 5.29 1.10 1 1/2 3 45 /8 3 1/2 13/4 8.3
25 M525B 5.00 5.29 1.10 1 3/4 3 45 /8 3 1/2 13/4 7.8

6 Pitch

24 M624 4.00 4.24 .86 1 1/4 2 15/16 4 5/8 3 15/16 4.4
24 M624A 4.00 4.24 .86 1 1/2 2 15/16 4 5/8 3 15/16 4.3
27 M627 4.50 4.74 .96 1 1/4 2 5/8 4 1/8 31/4 11/2 6.3
27 M627A 4.50 4.74 .96 1 1/2 2 5/8 4 1/8 31/4 11/2 5.9

8 Pitch

24

24

24

 M824

M824A

M324B

 3.00

3.00

3.00

 3.18 .64

.64

.64

 3/4

1

1 1/4

 1 37/64

1 49/64

1 49/64

 29/16

23/4

23/4

 13/4

21/221/2

 13/16

1

1

 1.5

2.1

1.9
28 M828 3.50 3.68 .75 1 2 3/32 31/4 21/2 11/4 2.9
28 M828A 3.50 3.68 .75 1 3/16 2 3/32 31/4 21/2 11/4 2.8
28 M328B 3.50 3.68 .75 1 1/4 2 3/32 31/4 21/2 11/4 2.6
32 M832 4.00 4.18 .84 1 2 3/32 35/8 3 11/8 4.8

10 Pitch

20 M1020A 2.00 2.14 .44 1/2 123/64 2 15/8 13/16 .75
20 M1020B 2.00 2.14 .44 5/8 123/64 2 15/8 13/16 .72
20 M1020 2.00 2.14 .44 3/44 123/64 2 15/8 13/16 .67
20 M1020C 2.00 2.14 .44 7/8 123/64 2 15/8 13/16 .58
25 M1025 2.50 2.64 .55 3/4 15/8 27/16 2 15/16 1.2
25 M1025A 2.50 2.64 .55 7/8 15/8 27/16 2 15/16 1.2
25 M1025B 2.50 2.64 .55 1 15/8 27/16 2 15/16 1.2
30 M1030 3.00 3.14 .64 3/4 13/4 23/4 2 1 1.8
Steel – Plain Bore—Unhardened Teeth
Number Catalog Face Mounting Wt.Lbs.
Teeth Number (Inches) (Inches) (App.)

12 Pitch

15 M1215 1.25 1.37 .27 3/8 55/64 1 1/4 1 1/2 . 17
15 M1215A 1.25 1.37 .27 7/16 55/64 1 1/4 1 1/2 .16
15 M1215B 1.25 1.37 .27 1/2 55/64 1 1/4 1 1/2 .15
18 M1218 1.50 1.62 .32 1/2 1164 1 1/2 1 1/4 5/8 .30
18 M1218A 1.50 1.62 .32 5/8 1164 1 1/2 1 1/4 5/8 .25
18 M1218B 1.50 1.62 .32 3/4 11/64 1 1/2 1 1/4 5/8 .22
21 M1221 1.75 1.87 .39 1/2 13/16 1 3/4 1 3/8 11/16 .45
21 M1221A 1.75 1.87 .39 9/16 13/16 1 3/4 1 3/8 11/16 .45
21 M1221B 1.75 1.87 .39 5/8 13/16 1 3/4 1 3/8 11/16 .43
21 M1221C 1.75 1.87 .39 3/4 13/16 1 3/4 1 3/8 11/16 .38
24 M1224 2.00 2.12 .43 1/2 17/32 1 7/8 1 1/2 11/16 .62
30 M1230 2.50 2.62 .54 5/8 131/64 2 5/16 1 3/4 27/32 1.10

14 Pitch

14 M1414 1.00 1.11 .19 3/8 47/64 1 1/16 7/8 1/2 .10
14 M1414A 1.00 1.11 .19 7/16 47/64 1 1/16 7/8 1/2 .09

16 Pitch

12 M1612 .75 .84 .16 5/16 37/64 13/16 5/8 3/8 .05
16 M1616 1.00 1.09 .22 3/8 3/4 1 1/16 3/4 7/16 .07
20 M1620 1.25 1.34 .27 7/16 27/32 1 1/4 1 1/2 .16
24 M1624 1.50 1.59 .31 7/8 7/8 1 3/8 1 1/2 .20

20 Pitch

20 M2020 1.00 1.07 .23 3/8 13/16 1   1/8 3/4 1/2 .06
25 M2025 1.25 1.32 .25 3/8 3/4 1   3/16 1 3/8 .14

24 Pitch

24 M2424 1.00 1.06 .20 1/4 9/16 29/32 5/8 9/32 .12
Steel – Plain Bore—Hardened Teeth American standard bevel gear
Number Catalog Face Mounting Wt.Lbs.
Teeth Number (Inches) (Inches) (App.)

4 Pitch

24

24

 HM424

HM424A

 6.00

6.00

 6.36

6.36

 1.33

1.33

 11/2

13/4

 39/16

39/16

 51/2

51/2

 4

4

 1 15/16

1 15/16

 14.4

13.7
28 HM428 7.00 7.36 1.43 2 35/8 6 5 1 15/16 21.1

5 Pitch

25 HM525 5.00 5.29 1.10 13/8 3 45/8 31/2 13/4 8.5
25 HM525A 5.00 5.29 1.10 11/2 3 45/8 31/2 13/4 8.3
25 HM525B 5.00 5.29 1.10 13/4 3 45/8 31/2 13/4 7.5

6 Pitch

24 HM624 4.00 4.24 .86 11/4 25/16 35/8 3 15/16 4.4
24 HM624A 4.00 4.24 .86 11/2 25/16 35/8 3 15/16 4.0
27 HM627 4.50 4.74 .96 11/4 25/8 41/8 31/4 11/2 6.3
27 HM627A 4.50 4.74 .96 11/2 25/8 41/8 31/4 11/2 5.9

8 Pitch

24

24

24

 HM824

HM824A

HM824B

 3.00 3.18 .64

.64

.64

 3/4

1

11/4

 137/64

149/64

149/64

 29/16

23/4

23/4

 13/4

21/2

21/2

 13/16

1

1

 1.5  2.1

2.6
28 HM828 3.50 3.68 .75 1 23/32 31/4 21/2 11/4 3.0
28 HM828A 3.50 3.68 .75 13/16 23/32 31/4 21/2 11/4 2.8
28 HM828B 3.50 3.68 .75 11/4 23/32 31/4 21/2 11/4 2.6
32 HM832 4.00 4.18 .85 1 29/32 35/8 3 11/8 4.7

10 Pitch

20

20

20

20

 HM1020A

HM1020B

HM1020

HM1020C

 2.00 2.14 .44

.44

.44

.44

 1/2

5/8

3/4

7/8

 123/64

123/64

123/64

123/64

 2

2

2

2

 15/8

15/8

15/8

15/8

 13/16

13/16

13/16

13/16

 .76

.70

.64

.58
25 HM1025 2.50 2.64 .55 3/4 15/8 27/16 2 15/16 1.3
25 HM1025A 2.50 2.64 .55 7/8 15/8 27/16 2 15/16 1.2
25 HM1025B 2.50 2.64 .55 1 15/8 27/16 2 15/16 1.2
30 HM1030 3.00 3.14 .64 3/4 13/4 23/4 2 1 1.8
Steel – Plain Bore—Hardened Teeth American standard bevel gear
Number

Teeth

 Catalog

Number

 Diair

Pitch

 eter

Outside

 Face

(Inches)

 Bore (I Diameter nches)

Length

 Mounting

(Inches)

 Hub (I Diameter nches)

Proj.(App.)

 Wt. Lbs. (App.)
12 Pitch
15 HM1215 1.25 1.37 .27 3/8 55/64 11/4 1 1/2 .15
15 HM1215B 1.25 1.37 .27 1/2 55/64 11/4 1 1/2 .15
18 HM1218 1.50 1.62 .32 1/2 11/64 11/2 11/4 5/8 .30
18 HM1218A 1.50 1.62 .32 5/8 11/64 11/2 11/4 5/8 .25
18 HM1218B 1.50 1.62 .32 3/4 11/64 11/2 11/4 5/8 .22
21 HM1221 1.75 1.87 .39 1/2 13/16 13/4 13/8 11/16 .22
21 HM1221B 1.75 1.87 .39 5/8 13/16 13/4 13/8 11/16 .42
24 HM1224 2.00 2.12 .43 1/2 17/32 17/8 11/2 11/16 .62
30 HM1230 2.50 2.62 .54 5/8 131/64 25/16 13/4 27/32 1.1

14 Pitch

14 HM1414 1.00 1.11 .19 3/8 47/64 11/16 7/8 1/2 .10
14 HM1414A 1.00 1.11 .19 7/16 47/64 11/16 7/8 1/2 .10

16 Pitch

16 HM1616 1.00 1.09 .22 3/8 3/4 11/16 3/4 7/16 .07
24 HM1624 1.50 1.59 .31 1/2 7/8 13/8 1 1/2 .20
24 HM2424 1.00 1.06 .20 1/4 9/16 29/32 5/8 9/32 .06
Steel – Furnished With Keyway and Set Screw—Hardened Teeth
Number Catalog Face Mounting Wt.Lbs.
Teeth Number (Inches) (Inches) (App.)
4 Pitch
24 HMK424A 6.00 6.36 1.33 13/4 39/16 51/2 4 115/16 13.7
28 HMK428 7.00 7.36 1.43 2 35/8 6 5 115/16 20.4
5 Pitch
25 HMK525 5.00 5.29 1.10 13/4 3 45/8 31/2 13/4 8.5
25 HMK525B 5.00 5.29 1.10 13/4 3 45/8 31/2 13/4 7.5

6 Pitch

24 HMK624 4.00 4.24 .86 11/4 25/16 35/8 3 15/16 4.4
24 HMK624A 4.00 4.24 .86 11/2 25/16 35/8 3 15/16 4.0
27 HMK627 4.50 4.74 .96 11/4 25/8 41/8 31/4 11/2 6.3
27 HMK627A 4.50 4.74 .96 11/2 25/8 41/8 31/4 11/2 5.9
8 Pitch
24

24

24

 HMK824

HMK824A

HMK824B

 3.00

3.00

3.00

 3.18 .64

.64

.64

 3/4

1

11/4

 137/64

149/64

149/64

 29/16

23/4

23/4

 13/4

21/2

21/2

 13/16

1

1

 1.5

2.1

1.8
28 HMK828 3.50 3.68 .75 1 23/32 31/4 21/2 11/4 2.9
28 HMK828A 3.50 3.68 .75 13/16 23/32 31/4 21/2 11/4 2.7
28 HMK828B 3.50 3.68 .75 11/4 23/32 31/4 21/2 11/4 2.6
10 Pitch
20

20

20

20

 HMK1020A

HMK1020B

HMK1020

HMK1020C

 2.00 2.14 .44

.44

.44

.44

 1/2

5/8

3/4

7/8

 123/64

123/64

123/64

123/64

 2

2

2

2

 15/8

15/8

15/8

15/8

 13/16

13/16

13/16

13/16

 .74

.70

.63

.58
25 HMK1025 2.50 2.64 .55 3/4 15/8 27/16 2 15/16 1.30
25 HMK1025A 2.50 2.64 .55 7/8 15/8 27/16 2 15/16 1.20
25 HMK1025B 2.50 2.64 .55 1 15/8 27/16 2 15/16 1.10

12 Pitch

15 HMK1215B 1.25 1.37 .27 1/2 55/64 11/4 1 1/2 .14
18 HMK1218A 1.50 1.62 .32 5/8 11/64 11/2 11/4 5/8 .25
21 HMK1221B 1.75 1.87 .39 5/8 13/16 13/4 13/8 11/16 .41
30 HMK1230 2.50 2.62 .54 5/8 131/64 2 5/16 13/4 27/32 1.1
16 Pitch
16 HMK1616 1.00 1.09 .22 3/8 3/4 11/16 3/4 7/16 .07
24 HMK1624 1.50 1.59 .31 1/2 7/8 13/8 1 1/2 .20
Steel
10 25 50 100 200 300 600 900 1200 1800
24 .80 1.90 3.6 6.4 10.6 13.5 18.8 21.5 23.0
24 1.40 3.33 6.3 11.2 18.6 23.6 33.0 38.0 40.0
28 1.07 2.50 4.8 8.4 13.6 17.2 23.3 26.5 28.5
28 1.90 4.50 8.4 14.7 23.8 30.0 40.0 46.0 50.0
25 .45 1.05 2.0 3.7 6.3 8.1 11.6 13.6 15.0
25 .75 1.90 3.6 6.5 11.0 14.2 20.0 24.0 26.0
24 .25 .55 1.1 2.0 3.5 4.6 6.9 8.2 19.0 10.2
24 .40 1.00 1.9 3.5 6.1 8.0 12.0 14.5 16.0 18.0
27 .30 .75 1.4 2.5 4.3 5.7 8.5 9.9 11.0 12.0
27 .50 1.33 2.5 4.4 7.5 10.0 1.5 17.5 19.0 21.0
24 .10 .25 .5 .9 1.5 2.1 3.3 4.0 4.5 5.3
24 .20 .40 .8 1.5 2.6 3.7 5.8 7.0 8.0 9.3
28 .15 .33 .7 1.2 2.2 2.9 4.4 5.3 6.0 6.8
28 .25 .60 1.2 2.1 3.9 5.0 7.7 9.3 10.5 12.0
2 .20 .45 .9 1.6 2.8 3.7 5.5 6.5 7.2 8.0
2 .33 .80 1.5 2.8 4.9 6.5 9.6 11.4 12.5 14.2
1020 .03 .08 .2 .3 .6 .8 1.3 1.7 2.0 2.4
1020 .05 . 15 .3 .5 1.0 1.4 2.3 3.0 3.5 4.2
1025 .06 .15 .3 .5 .9 1.3 2.0 2.5 2.9 3.5
1025 .10 .25 .5 .9 1.6 2.3 3.5 4.4 5.0 6.0
1030 .08 .20 .4 .7 1.3 1.8 2.8 3.5 3.9 4.5
1030 .15 .33 .7 1.3 2.3 3.2 4.9 6.1 6.8 8.0
1215 .01 .02 .05 .10 .20 .3 .5 .6 .8 .9
1215 .02 .04 .10 .17 .33 .4 .8 1.0 1.3 1.6
1218 .01 .03 .08 .14 .25 .4 .7 .9 1.0 1.3
1218 .02 .05 .15 .25 .47 .7 1.1 1.5 1.8 2.2
1221 .02 .05 .11 .20 .40 .5 .9 1.2 1.4 1.7
1221 .04 .10 .20 .33 .70 1.0 1.6 2.1 2.5 3.0
1224 .03 .07 .15 .25 .50 .7 1.2 1.5 1.7 2.0
1224 .05 .12 .25 .47 .90 1.2 2.1 2.6 3.0 3.5
1230 .05 .12 .25 .44 .80 1.1 1.8 2.2 2.5 3.0
1230 .09 .21 .40 .75 1.40 1.9 3.2 4.0 4.4 5.3
1414 .01 .02 .05 .09 .1 .2 .3 .4 .5
1414 .02 .04 .09 .16 .2 .4 .6 .7 .9
1616 .01 .02 .05 .09 .1 .2 .3 .4 .5
1616 .02 .04 .09 .16 .2 .4 .6 .7 .9
1620 .02 .04 .08 . 14 .2 .4 .5 .6 .8
1620 .04 .07 .15 .25 .4 .7 .9 1.0 1.3
1624 .03 .06 .12 .20 .3 .5 .7 .8 1.0
1624 .05 . 10 .21 .40 .5 .9 1.2 1.4 1.8
2020 .01 .02 .04 .08 .1 .2 .2 .4 .5
2020 .02 .04 .07 .14 .2 .4 .5 .6 .8
2025 .02 .03 .06 .12 .2 .3 .4 .5 .6
2025 .04 .05 .10 .21 .3 .5 .7 .9 1.0

Ratings listed to right of dark line exceed recommended pitch line velocity.



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “American standard bevel gear Miter Gears 20° Pressure Angle Steel – Plain Bore—Hardened Teeth”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

Metal Bevel Gear

Metal Bevel Gear

Automotive Bevel Gear

Automotive Bevel Gear

Spiral Bevel Gear

Spiral Bevel Gear

Spiral Miter Gears

Spiral Miter Gears

Precision Bevel Gear

Precision Bevel Gear

Medical Bevel Gear

Medical Bevel Gear

Straight Bevel Gear

Straight Bevel Gear

Aircraft Bevel Gear

Aircraft Bevel Gear
