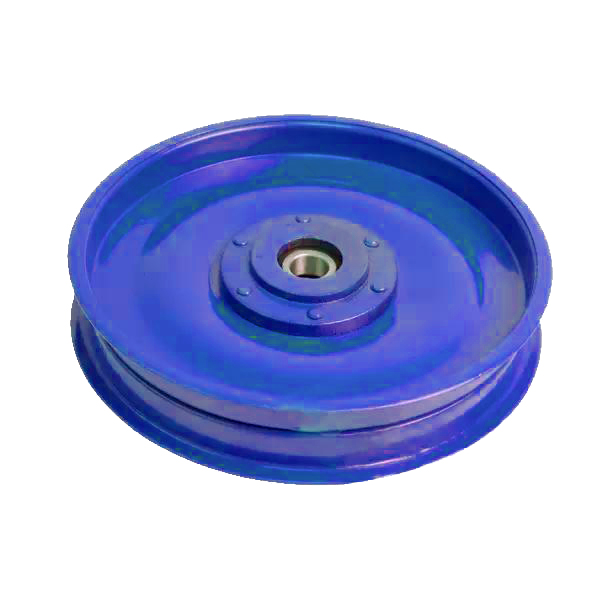

AN30569 Pulley for John Deere Combine Feed House Parts
AN30569 Pulley for John Deere Combine Usage
A spare parts for drive of John Deere combine harvesters.
Designation
Ensuring the required level of tension of drive belts of knots and units of agricultural machinery.
Used to replace worn or damaged details during repair work.
Properties
Ensuring the required level of tension of drive belts of knots and units of agricultural machinery.
Parameters AN30569 Pulley
Weight , W | kg | 1.17 |
---|---|---|
Inner diameter , d | mm | 17 |
Outer diameter , D | mm | 222 |
Width , Wb | mm | 39 |
Inner width , b | mm | 33 |
Shield type | Bilateral | |
Shield material | Metal | |
Shaft mounting type | Cylindrical |
The parameters may differ from the actual ones.
Usage of AN30569 Pulley
Combine harvester John Deere:925 930 932 935 940 942 945 950 952 955 960 965 965H 968H 970 975 975HY/4 985 985HY4
