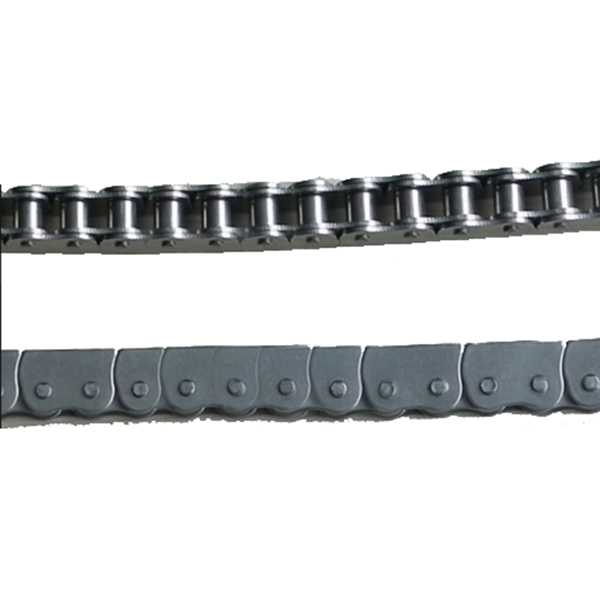

Anti-sidebow chains

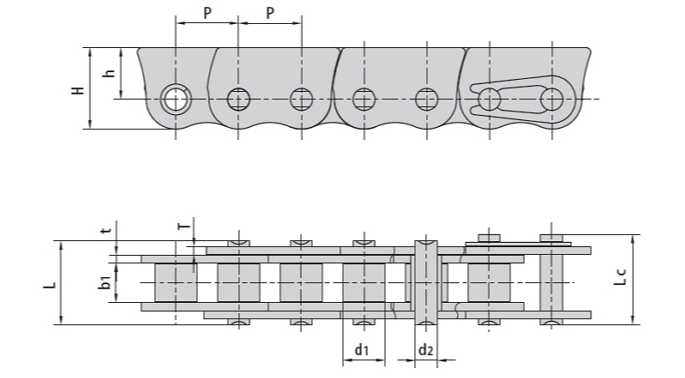

Dimensional parameters
Anti-sidebow chains |
Roller | Width | Pin | Pin | Plate | Ultimate | Weight | ||||
Pitch | diamete r | between | diarmeter | length | dimension | tensile | per | ||||
inner plates | strength | meter | |||||||||
Chain No. | P | d1
max |
b1 min | d2
max |
L
m ax |
Lc m ax | H
m ax |
h | VS
max |
Q
min |
q |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
08BF6 | 12.700 | 7.95 | 7.85 | 3.96 | 16.60 | 17.8 | 17.00 | 11.00 | 1.50 | 13.8 | 0.91 |
41 5BF4 | 12.700 | 7.75 | 4.88 | 4.09 | 16.40 | 17.8 | 17.00 | 11.00 | 1.3/5.1 | 12.0 | 1.07 |
08BSSF20 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.2 | 16.50 | 10.50 | 1.60 | 12.0 | 1.06 |
08BSSF74 | 12.700 | 8.51 | 7.75 | 4.45 | 18.80 | – | 15.50 | 9.70 | 1.85 | 13.0 | 1.19 |
P12.7F4 | 12.700 | 7.50 | 5.50 | 4.45 | 15.60 | — | 14.30 | 8.50 | 2.03 | 15.0 | 0.99 |
Anti-Sidebow Chains are specially designed to counteract the sidebow deformation that can occur in windows. Sidebow deformation is a common problem in window manufacturing, where the window sash bows outward due to the pressure exerted by the glass. This can lead to structural instability, compromised seal integrity, and reduced energy efficiency.
