Anti-sidebow chains for pushing window

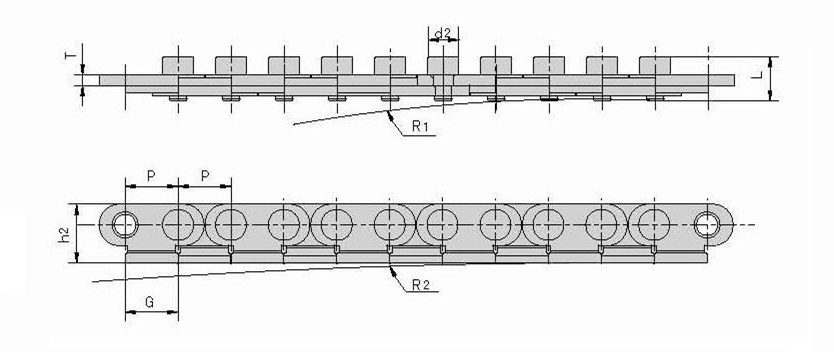

Dimensional parameters
P itch | Pin diameter |
Pin length |
Plate dimension |
Side bow radius |
Weight per meter |
|||||
Chain No. | P | d2 max | L | h2 max |
G max |
T max |
R1 | R2 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | kg/m | ||
P12.75SB | 12.75 | 7.4 | 10.65 | 14.25 | 12.8 | 2.5 | 500~800 | 1000 | 0.69 | |
P12.75SBF1 | 12.75 | 7.4 | 11.00 | 14.25 | 12.8 | 2.5 | 500~800 | 1000 | 1.08 |

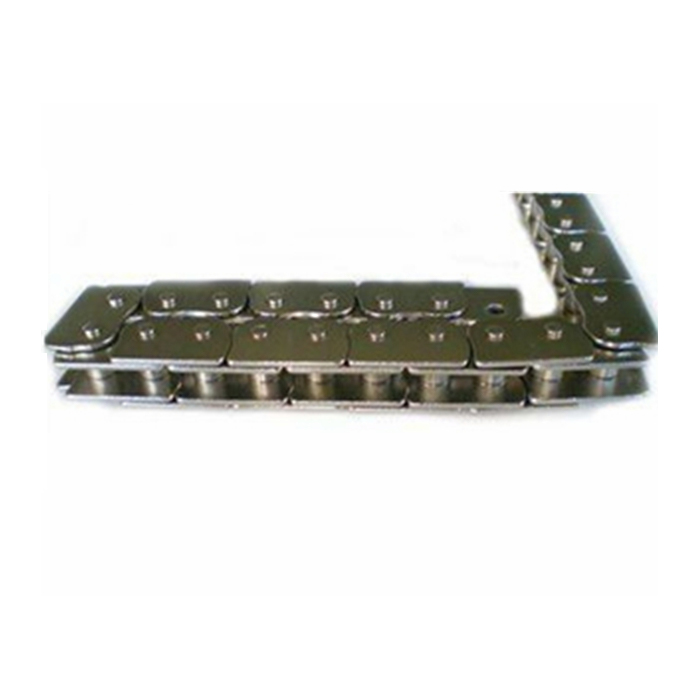

ANTI SIDE BOW CHAINS FOR PUSHING WINDOW Side Bow Chain(Anti-sidebow chains for pushing window) consist of larger clearance between Pin and Bushing, as well as well adjusted clearance between outer and inner links. This special chain having side bow can allow you to run chain on curbed trail. Having standard dimension on JIS, regular standard sprocket can be used together.
