Anti-sidebow Chains for Pushing Window P11.5
An intelligent door and window anti-bending chain is a kind of chain that is used to prevent a window from being bent. It can be applied to flat push windows and cased windows. It is powered by an electric motor or a hydraulic cylinder. It is made of high-quality steel and is treated with a zinc-nickel alloy surface anti-corrosion process. It is durable and noise-free. It also has high stability and can withstand a long time of use.

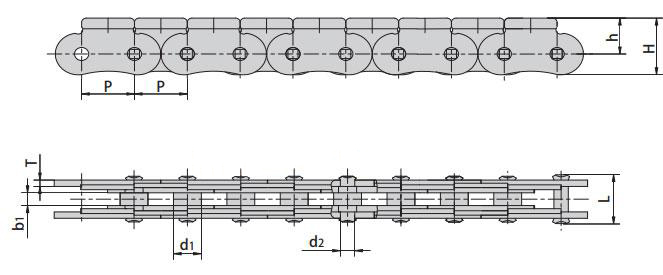

Details of P11.5 Anti-sidebow Chains for Pushing Window
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Ultimate tensile strength | ||
P | d1 max |
b1 | d2 max |
L max |
H max |
h | T | Q min |
|
mm | mm | mm | mm | mm | mm | mm | mm | kN | |
P11.5SS | 11.5 | 6.00 | 3.00 | 3.00 | 10.8 | 13.5 | 8.5 | 1.5/1.5 | 5.5 |
Features of Anti-Sidebow Chains
One of the most important characteristics of Anti-sidebow chains is the ability of the chain to rotate. If the chain is positioned in the proper position, the chain can be bent to the side. For this reason, the chain consists of two separate parts: the inner chain plate and the outer chain link. The latter two parts are made of plastic material. The pivot pin 7 and the bolt 6 are made of steel. Notches in the inner chain plate allow the alignment protrusions to pivot further into this area.
The links are interconnected by hinges. The hinges are designed to pivot about the first and second axes. The hinges are formed by pivot bolts or pins attached to the outer links. The inner links are connected to the outer links by transverse pivot openings, which are defined by separate support plates. The size of the hinge allows the plate band to pivot between the inner and outer links. This feature is useful for counteracting side bowing.
Another feature of the anti-side bow chains is that they have additional clearance between the pin and the bushing. The chain is designed for a minimum 250 mm curve radius. It can be equipped with all common roller chain accessories, such as sprockets. However, the load-bearing area of the side bow chain is limited. Therefore, they are only suitable for lower load levels compared to comparable roller chains.
Anti-Sidebow Chains and Sprockets
When it comes to Anti-sidebow Chains and sprockets, there are a few different types available. While they are similar to standard roller chains, they have extra clearance between the pins, bushings and link plates. They also have smaller pin diameters. These are the perfect solution for curved applications. These sprockets can be available in stainless steel or with various paint finishes.
The most important aspect to consider when choosing an Anti-sidebow chain is its design. These chains have a wider clearance between the pin and the bushing. They also have a better adjustment between the outer and inner links. This means that they can be used on curved tracks and provide greater flexibility for machinery. Power-trans is one of the professional chain and sprocket suppliers in China. We offer high-quality anti-sidebow chains and sprockets for sale at competitive prices. Contact us now if you are interested!
