Anti-sidebow Chains for Pushing Window P9.525P12.700
Anti-sidebow chains for pushing window can withstand curves and flexures. These chains come with a variety of special plates and attachments. Because they have a small bearing area, they are suitable for lower loads than comparable roller chains. Choose the right one here at Chinabase based on your requirements.

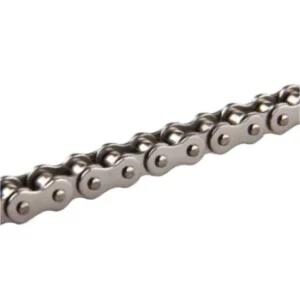

Anti-sidebow Chains for Pushing Window P9.525/P12.700
Anti-sidebow chains for pushing window can withstand curves and flexures. These chains come with a variety of special plates and attachments. Because they have a small bearing area, they are suitable for lower loads than comparable roller chains. Choose the right one here at Power-trans based on your requirements.

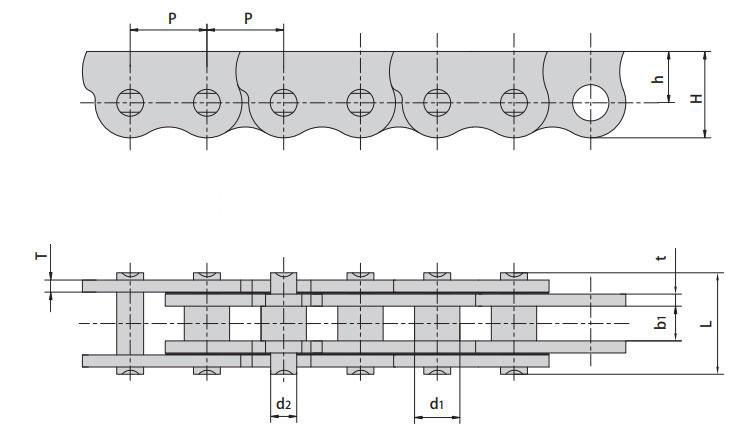

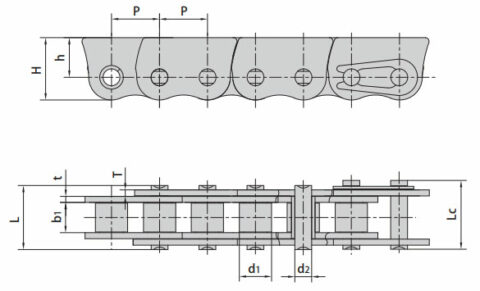

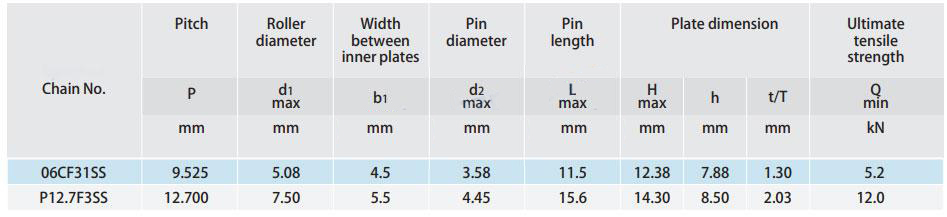

Specifications of P9.525/P12.700 Anti-sidebow Chains for Pushing Window
Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Plate dimension Ultimate tensile strength Weight per meter P d1
maxb1
mind2
maxL
maxLc max H
maxh t/T max Q
minq mm mm mm mm mm mm mm mm mm kN kg/m 06BF33SS 9.525 6.35 5.72 3.28 13.15 14.1 12.38 7.88 1.30 6.2 0.63 06BF34 9.525 6.35 3.80 3.28 10.00 – 12.38 7.88 1.04 7.0 0.47 *06CF22 9.525 5.08 4.77 3.58 11.60 – 12.86 8.38 1.30 7.9 0.51 08BF6 12.700 7.95 7.85 3.96 16.60 17.8 17.00 11.00 1.50 13.8 0.91 415BF4 12.700 7.75 4.88 4.09 16.40 17.8 17.00 11.00 1.3/3.1 12.0 1.07 08BSSF20 12.700 8.51 7.75 4.45 16.70 18.2 16.50 10.50 1.60 12.0 1.06 08BSSF74 12.700 8.51 7.75 4.45 18.80 – 15.50 9.70 1.85 13.0 1.19 P12.7F4 12.700 7.50 5.50 4.45 15.60 – 14.30 8.50 2.03 15.0 0.99
*Bush chain: d1 in the table indicates the external diameter of the bush.
Anti-Sidebow Chains Characteristics
One of the most important Anti-sidebow chain features is the ability of the chain to pivot. The chain can bow sideways if the chain is in the appropriate position. To achieve this. We make the chain with two separate parts: the inner link plate and the outer chain links. The latter two parts are made of plastic materials. The pivot pin 7 and bolt 6 are made of steel. A groove on the inner link plate allows the centering projection to pivot further into this region.
The chain links are interconnected by a hinge. The hinge is designed to pivot about first and second axes. The hinge is formed by a pivot bolt or pin connected to the outer chain links. The inner chain links are attached to the outer chain links via lateral pivot openings, which are defined by individual support plates. The hinge is sized to allow the plate belt to pivot between the inner and outer chains. This feature is useful for counteracting side bow.
An additional feature of anti-sidebow chains is their extra clearance between pins and bushings. Design for a minimum 250-mm curve radius. Equipp with all of the usual roller chains’ attachments, such as sprockets. However, the bearing area of side bow chains is limit. As a result, they are only suitable for lower load levels compare to a comparable roller chain.

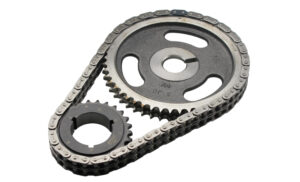

Anti-Sidebow Chains and Sprockets
When it comes to Anti-sidebow Chains and sprockets, there are a few different types available. While they are similar to standard roller chains, they have extra clearance between the pins, bushings and link plates. They also have smaller pin diameters. These are the perfect solution for curved applications. These sprockets can be available in stainless steel or with various paint finishes.
The most important aspect to consider when choosing an Anti-sidebow chain is its design. These chains have a wider clearance between the pin and the bushing. They also have a better adjustment between the outer and inner links. This means that they can work in tracks and provide greater flexibility for machinery. We are one of the professional chain and sprocket suppliers in China. We offer high-quality anti-sidebow chains and sprockets for sale at competitive prices. Contact us now !
