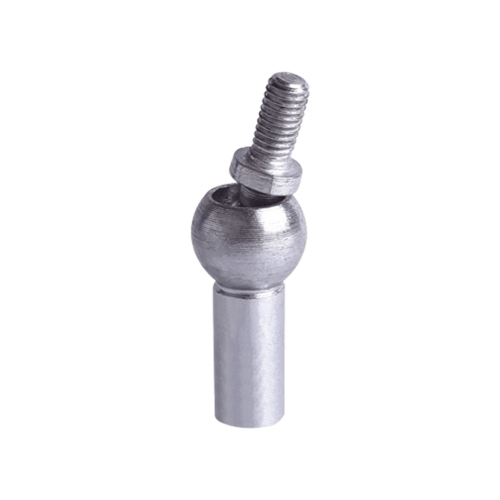

Axial Joints similar to DIN71802 Axial Joints

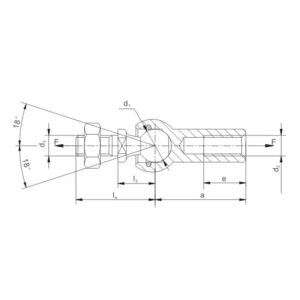

DIN71802 Axial Joints
1) Alternative left-hand thread for the ball socket. 2) Ball socket with or without spanner surface or hexagon surface as required. 3) With or without sealing cap as required. 4) With or without cap as required. |
|
Material and surface treatments:
1)Ball stud: medium carbon steel 45;Ball socket: low carbon steel Q235A;Snap ring and safety clip: spring steel.zinc plating.
2)Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation. |
Part No. | Dimensions | Extraction force F in N | Weight | |||||
d1
h9 |
d2 | a | la | l3 | e | Kg per piece | ||
AX-C8M5 | 8 | M 5 | 22 | 19.2 | 9 | 10.2 | 30 | 0.0152 |
AX-C10M6 | 10 | M 6 | 25 | 23.5 | 11 | 11.5 | 40 | 0.0252 |
AX-C13M8 | 13 | M 8 | 30 | 29.5 | 13 | 14.0 | 60 | 0.0531 |
AX-C16M10 | 16 | M 10 | 35 | 36.0 | 16 | 15.5 | 80 | 0.1038 |
AX-C19M14x1.5 | 19 | M 14X1.5 | 45 | 48.0 | 20 | 21.5 | 100 | 0.2209 |
We’re well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments.Our factory is leading manufacturer of Axial Joints Similar to DIN71802 suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Axial Joints Similar to DIN71802 are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
