AZ22756 Overload Disc for John Deere Combine
Combine harvester John Deere:1032 1042 1052 1055 1065 1068H 1072 1075 1075HY/4 1155 1157 1158 950 955 960 965 965H 968H 970 975 975HY/4 985 985HY4
AZ22756 Overload Disc for John Deere Combine
Usage
Spare parts of John Deere combine harvesters.
Designation
Protecting the drive overload of header from excessive overload in emergency situations.
Used to replace worn or damaged spare parts during repair works.
Properties

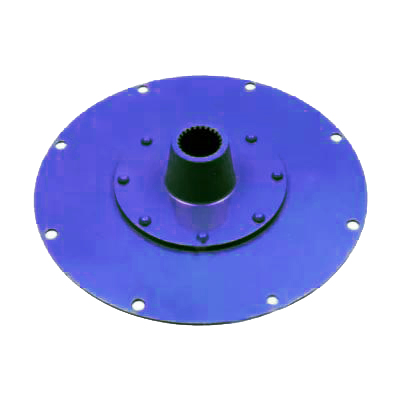

Complex unit consisting of a metal plate in the form of a disc with sleeve for installing the shaft.
The surface of the parts to prevent corrosion coated paint.
Parameters
| Weight , W | kg | 4 |
|---|---|---|
| Outer diameter , D | mm | 315 |
| Number of splines , F | 24 | |
| Number of mounting holes , N | 8 | |
| Mounting holes diameter , Dm | mm | 11 |
| Thickness , S | mm | 3 |
| Height , H | mm | 81 |
| Outside diameter , D1 | mm | 54 |
Usage of AZ22756 Overload disc
Combine harvester John Deere:1032 1042 1052 1055 1065 1068H 1072 1075 1075HY/4 1155 1157 1158 950 955 960 965 965H 968H 970 975 975HY/4 985 985HY4
