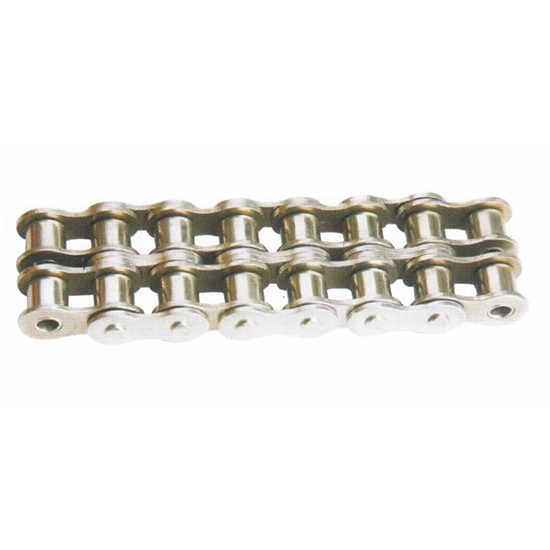

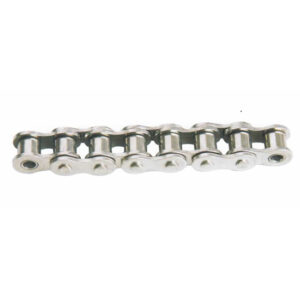

B series double strand stainless steel short pitch precision roller chains
Applications
- Automotive Industry:
- In automotive manufacturing, these chains are used in various systems including timing drives and conveyor systems. Their precision and durability are essential for maintaining high production standards and reliability.
- Manufacturing Sector:
- Short-pitch precision roller chains are widely used in manufacturing processes, particularly in machinery drives and automated production lines. Their ability to handle heavy loads and provide precise power transfer makes them ideal for machinery that operates continuously and at high speeds.
- Automation Systems:
- In automation and robotics, these chains ensure accurate and reliable movement of components. Their minimal backlash and smooth operation are crucial for maintaining the efficiency and precision of automated systems.
- Conveyor Systems:
- They are extensively employed in conveyor systems to ensure smooth and efficient material handling. The short pitch size helps in maintaining consistent movement and alignment, which is vital for effective conveyor operation.

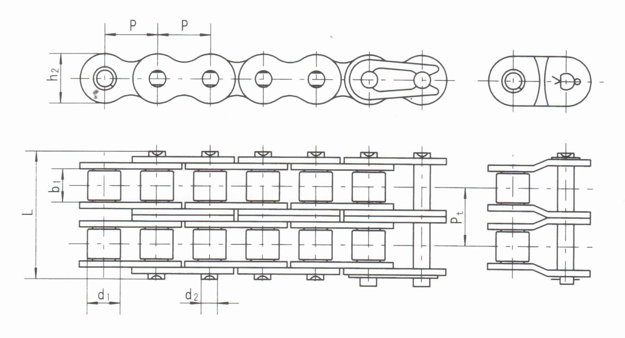

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner
plate depth |
Transv-
erse pitch |
Ultimate tensile strength | Average tensile strength | Weight
Per meter |
||
| Chain | dia | length | ||||||||
| No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Pt
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| 05BSS-2 | 8 | 5 | 3 | 2.31 | 13.9 | 7 | 5.64 | 6.4 | 7.9 | 0.34 |
| *06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 22.8 | 8.2 | 10.24 | 8.7 | 10.8 | 0.75 |
| 08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31 | 11.8 | 13.92 | 22.5 | 23.5 | 1.46 |
| 10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 35.8 | 14.6 | 16.59 | 29.8 | 31.5 | 1.89 |
| 12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 41.5 | 16 | 19.46 | 34.6 | 35.2 | 2.43 |
| 16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 67.2 | 21 | 31.88 | 78 | 89.7 | 5.54 |
| 20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.7 | 26 | 36.45 | 110 | 125.3 | 7.20 |
| 24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.8 | 33.4 | 48.36 | 168 | 191.5 | 13.4 |
*straight side plates
