B series roller chains with straight side plates
B series roller chains have a high wear resistance and significantly higher fatigue strength than the standard requires. The right choice for industrial applications: robust and reliable. All power-trans transmission roller chains are highly pre-tensioned and treated.

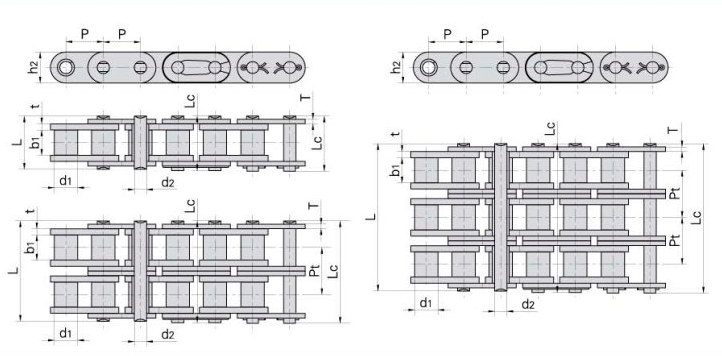

Dimensional parameters
DIN ISO CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ROW SPACING | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | PT | Q MIN | Q0 | Q | |
MM | MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | |
C08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 18 | 19.4 | 0.8 | |
C10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 22.4 | 26.8 | 1.06 | |
C12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 116 | 29 | 31.2 | 1.32 | |
C16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21 | 60 | 70 | 2.9 | |
C20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 95 | 101.5 | 4.16 | |
C24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 1160 | 174 | 7.47 | |
C28B-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 200 | 214 | 9.9 | |
C32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 250 | 267.4 | 110.45 | |
C08B-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 13.92 | 32 | 37.4 | 1.45 |
C10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 48 | 16.59 | 44.5 | 57.9 | 2 |
C12B-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 44.7 | 53.6 | 19.46 | 57.8 | 65.7 | 2.62 |
C16B-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 71 | 60 | 31.88 | 106 | 124.4 | 5.8 |
C20B-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 72.39 | 36.45 | 170 | 210 | 8.23 |
C24B-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 5.9 | 48.36 | 280 | 304.5 | 14.77 |
C28B-2 | 44.45 | 27.94 | 30.99 | 15.9 | 124.6 | 129.1 | 8.95 | 59.56 | 360 | 385.3 | 19.68 |
C32B-2 | 50.8 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 11.9 | 58.55 | 450 | 477 | 20.62 |
C08B-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45.1 | 461 | 15 | 13.92 | 47.5 | 50.4 | 2.1 |
C10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 18 | 16.59 | 66.7 | 79.6 | 2.87 |
C12B-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 64.2 | 21.1 | 19.46 | 186.7 | 101.9 | 3.89 |
C16B-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 102.9 | 30.1 | 31.88 | 160 | 188 | 8.7 |
C20B-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 36 | 36.45 | 250 | 266.7 | 111.34 |
C24B-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.1 | 154.6 | 42 | 48.36 | 425 | 462.2 | 22.1 |
C28B-3 | 44.45 | 27.94 | 30.99 | 15.9 | 184.2 | 188.7 | 48 | 59.56 | 530 | 561.7 | 29.47 |
C32B-3 | 50.8 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 53.6 | 58.55 | 670 | 710.3 | 30.85 |
