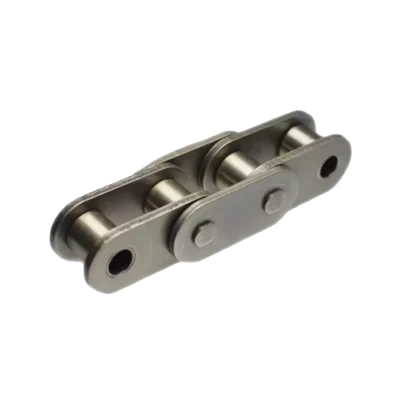

Stainless steel Roller Chains with straight side plates (B series)
B series short pitch precision roller chain is the most commonly used type of chain drive, which is used to transmit mechanical power on many domestic, industrial, and agricultural machinery, including conveyors, wire drawing and pipe drawing machines, printing machines, automobiles, motorcycles, and bicycles.
We are very proud to provide our customers with the best quality B series short pitch precision roller chains.
It consists of a series of short cylindrical rollers, which connect together with side connecting rods.Driven by a gear(sprocket). It is a simple, reliable, and efficient power transmission mode.
Carry out tooth hardening, stamping, and surface treatment according to customer requirements.
All stock short pitch chains are under high-quality control to meet your requirements.
The C-type roller chain has straight plates instead of figure 8-shaped side plates. The chain weighs slightly more than standard roller chains and slightly increases fatigue, strength, and working life. They are mainly used in conveyor applications where a flat side plate is preferable. Straight plate type ISO British standard and ANSI standard chains are both available.

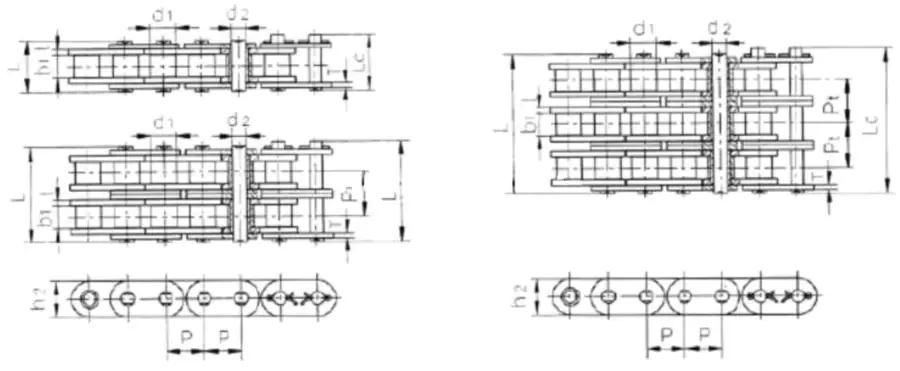

B series short pitch precision roller chain Specifications
DIN ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
CB08SS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 10.8 | 11.7 | 0.8 | |
CB10SS-1 | 15.875 | 10.16 | 9.65 | 50.8 | 19.5 | 20.9 | 14.7 | 1.7 | 13.44 | 16.74 | 1.06 | |
CB12SS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16 | 1.85 | 17.4 | 19.32 | 1.32 | |
CB16SS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0/24.0 | 4.15/3.1 | 36 | 43.68 | 3.08/3.49 | |
CB20SS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 4.5/3.5 | 57 | 64.02 | 4.16 | |
CB24SS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 96 | 106.8 | 7.47 | |
CB28SS-1 |
44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 120 | 133.2 | 9.9 | |
CB32SS-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 150 | 166.5 | 10.45 | |
C08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 19.2 | 23.22 | 1.45 |
C10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 16.59 | 26.7 | 34.68 | 2 |
C12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 44.7 | 16 | 1.85 | 19.46 | 34.68 | 39.66 | 2.62 |
C16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 71 | 21.0/24.0 | 4.15/3.1 | 31.88 | 63.6 | 79.8 | 6.10/6.92 |
C20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 102 | 126.72 | 8.23 |
C24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 168 | 191.52 | 14.77 |
C28BSS-2 | 44.45 | 27.94 | 30.99 | 25.9 | 124.6 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 216 | 244.08 | 19.82 |
C32BSS-2 | 50.8 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42 | 7.0/6.0 | 58.55 | 270 | 305.1 | 20.94 |
C08BSS-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.8 | 1.6 | 13.92 | 28.5 | 34.68 | 2.1 |
C10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.7 | 1.7 | 16.59 | 40.02 | 50.7 | 2.87 |
C12BSS-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 64.2 | 16 | 1.85 | 19.46 | 52.02 | 61.08 | 3.89 |
C16BSS-3 |
25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 102.9 | 21.0/24.0 | 4.15/3.1 | 31.88 | 96 | 122.22 | 9.12/10.34 |
C20BSS-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.4 | 4.5/3.5 | 36.45 | 150 | 174 | 11.34 |
C24BSS-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.1 | 154.6 | 33.2 | 6.0/4.8 | 48.36 | 255 | 295.8 | 22.1 |
C28BSS-3 | 44.45 | 27.94 | 30.99 | 15.9 | 184.2 | 188.7 | 36.7 | 7.5/6.0 | 59.56 | 318 | 365.7 | 29.64 |
C32BSS-3 | 50.8 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 42 | 7.0/6.0 | 58.55 | 402 | 462.3 | 31.27 |
