B series single strand short pitch roller chains

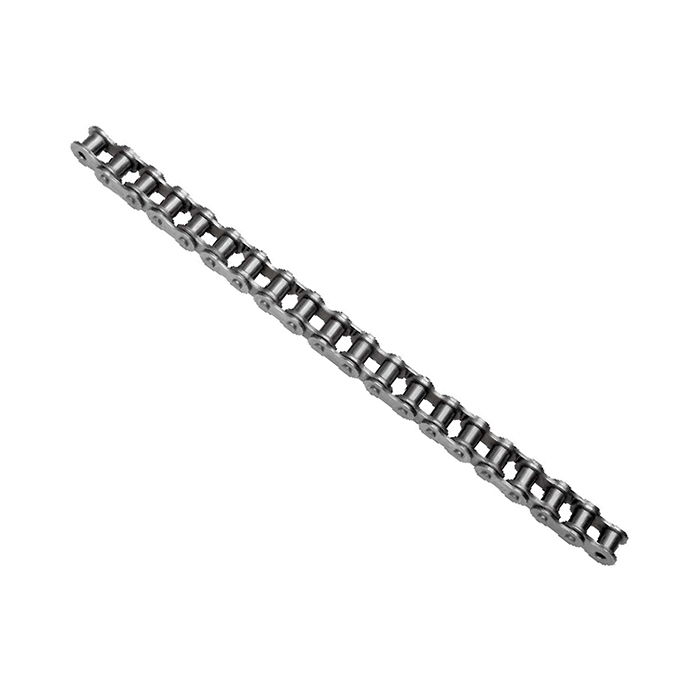

B series short pitch precision roller chains are widely used in conveyor machines, agricultural machines and so on.
- Material: 40MN carbon steel
- Packing: 10 feet per box
- Chain color: original color, black color
- Numbers of row: Simplex, Duplex, Triplex
- Attachment types: A1, K1, A2, K2 and so on

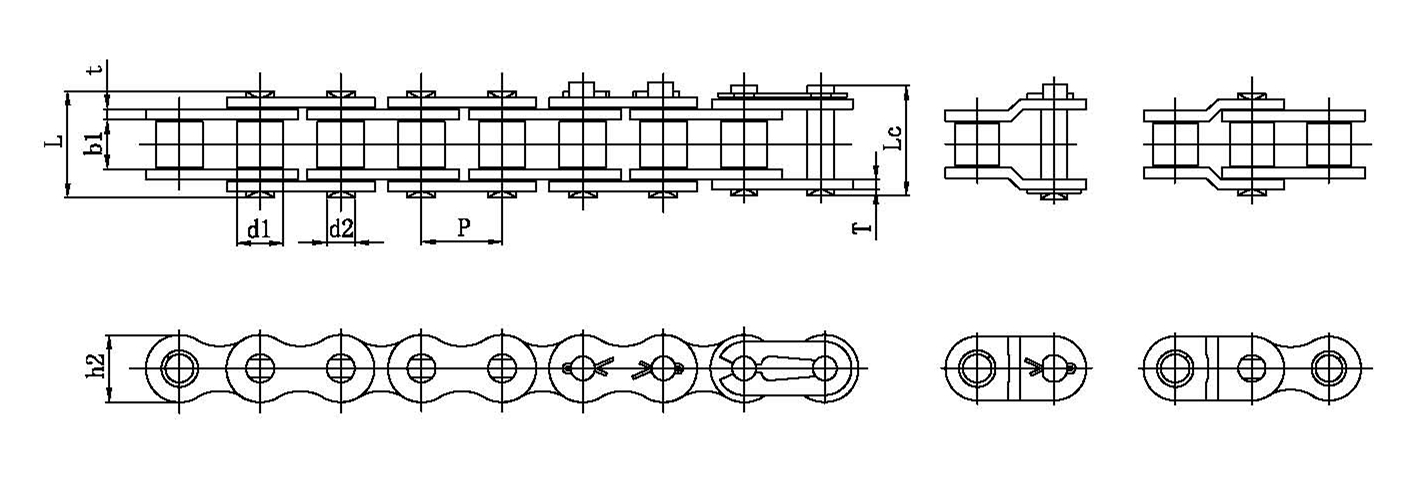

Dimensional parameters
DIN ISO CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | Q MIN | Q0 | Q | |
MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | |
04B-1 | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 3 | 3.4 | 0.11 |
05B-1 | 8 | 5 | 3 | 2.31 | 8 | 8.9 | 7.11 | 5 | 5.7 | 0.2 |
*06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.2 | 14.2 | 8.2 | 9 | 10.2 | 0.41 |
08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18 | 11.8 | 18 | 19.1 | 0.69 |
10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.6 | 21 | 14.7 | 22.4 | 26.5 | 0.93 |
12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24 | 16.1 | 29 | 32.2 | 1.15 |
16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36 | 37.2 | 21.05 | 60 | 70.4 | 2.71 |
20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.1 | 44.7 | 26.31 | 95 | 101.5 | 3.7 |
24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.3 | 57.5 | 33.3 | 160 | 174 | 7.1 |
28B-1 | 44.45 | 27.94 | 30.99 | 15.9 | 64.8 | 69.5 | 36.9 | 200 | 213.9 | 8.5 |
32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66.2 | 71 | 42.1 | 250 | 267.5 | 10.25 |
40B-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 355 | 379.9 | 16.35 |
48B-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 560 | 599 | 25 |
