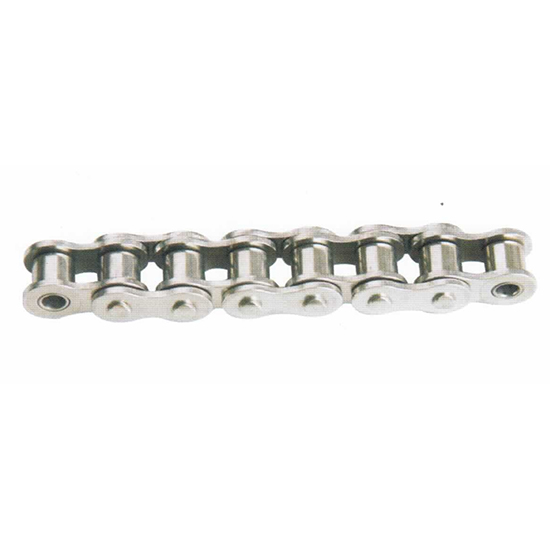

B series single strand stainless steel short pitch precision roller chains
Key Features
- Compact Pitch Size:
- Short-pitch precision roller chains feature a reduced distance between the pins, known as the pitch. This compact design enhances the chain’s ability to transfer power accurately and efficiently. The short pitch size minimizes backlash and ensures seamless operation, which is critical for applications requiring precise movement and control.
- Exceptional Tensile Strength:
- Engineered with advanced manufacturing techniques, these chains exhibit outstanding tensile strength. They are designed to handle substantial loads without stretching or breaking, ensuring reliable performance even under heavy-duty conditions.
- Robustness and Fatigue Resistance:
- The chains are built to endure significant stress and fatigue. Their robust construction ensures long-lasting durability and dependability, even in challenging and demanding scenarios. This characteristic is crucial for maintaining operational efficiency and reducing the need for frequent replacements.
- Adherence to International Standards:
- Short-pitch precision roller chains comply with globally recognized standards such as ISO, ASME/ANSI, DIN, JIS, and others. This adherence guarantees compatibility and interchangeability with a wide range of equipment and systems, making it easier to integrate these chains into existing setups and ensuring consistent performance across different applications.

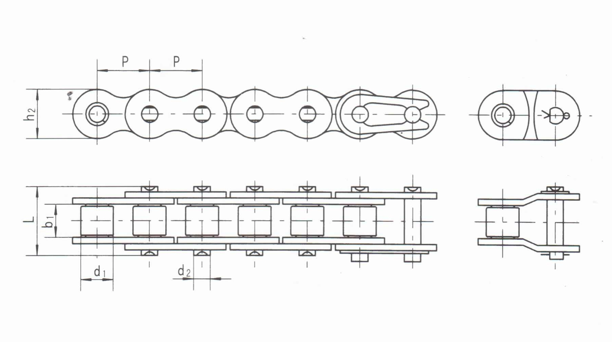

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner plate depth | Ultimate
tensile strength |
Average
tensile strength |
Weight Per meter | ||
| Chain | dia | length | |||||||
| No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| 05BSS-1 | 8 | 5 | 3 | 2.31 | 7.8 | 7 | 3.33 | 4.2 | 0.18 |
| *06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 12.54 | 8.2 | 4.5 | 5.7 | 0.38 |
| 08BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.74 |
| 10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.2 | 14.6 | 14.9 | 16.2 | 0.95 |
| 12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22 | 16 | 17.4 | 17.7 | 1.22 |
| 16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 35.6 | 21 | 40.6 | 46.7 | 2.77 |
| 20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 40.4 | 26 | 56 | 64.3 | 3.68 |
| 24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 33.4 | 96 | 115.6 | 7.1 |
*straight side plates
